Hioki Pq3198 Power Quality Analyzer

key features

  • Class A compliance under international standards
  • Basic voltage measurement accuracy of ±0.1%
  • High-voltage, wideband performance
  • Two-circuit measurement
  • Simple inverter measurement
  • 400 Hz line measurement
  • GPS time synchronization
  • Extensive array of event measurement parameters

(1 customer review)
SKU: 6290

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

Original price was: AED 28,500.Current price is: AED 27,500. (excl.VAT)

11 People watching this product now!

Hioki Pq 3198 Power Quality Analyzer

The Hioki PQ3198 is a power quality analyzer that monitors and records power supply anomalies, allowing their causes to be rapidly explored, as well as assessing power supply problems such as voltage drops, flicker, harmonics, and other electrical difficulties. New features include the ability to directly drive current sensors from the PQA and improved recording capabilities.

The Hioki PQ3198 has a number of advanced capabilities that make it an excellent tool for power quality analysis. This power quality analyzer, with its great accuracy and precision, provides comprehensive measurements of voltage, current, harmonics, power factor, and other critical parameters. The PQ3198, with its large color display and simple user interface, ensures simple operation and data interpretation. Its compact and durable design, as well as its long battery life, enable convenient on-site measurements and long-term monitoring.

Power quality analyzers are critical in determining the performance and dependability of electrical systems. These analyzers assist in identifying possible faults that can impair the efficiency and safety of electrical systems by measuring characteristics such as voltage fluctuations, harmonics, and power factor. The Hioki brand, which includes the power quality analyzer pq3198, is well-known for offering precise readings and analysis.

The hioki 3198 price may vary depending on setup options and other accessories. For precise and up-to-date price information, contact authorised Hioki distributors or visit the official Hioki website. The Hioki PQ3198 power quality analyzer is widely accessible and provides a competitive option for electrical experts.

Hioki PQ3198 specifications:

  • Measurement line type Single-phase 2-wire, Single-phase 3-wire, Three-phase 3-wire or Three-phase 4-wire plus one extra input channel for voltage, current, power measurement (AC or DC measurement)
  • Voltage ranges Voltage measurement: 600.00 V rms
    Transient measurement 6.0000 kV peak
  • Current ranges 500.00 mA to 5.0000 kA AC (depends on current sensor in use)
  • Power ranges 300.00 W to 3.0000 MW (determined automatically based on voltage and current range in use)
  • Basic accuracy Voltage: ±0.1% of nominal voltage
    Current: ±0.1 % rdg. ±0.1 % f.s. + current sensor accuracy
    Active power: ±0.2 % rdg. ±0.1 % f.s. + current sensor accuracy
5
1 review
1
0
0
0
0

1 review for Hioki Pq3198 Power Quality Analyzer

Clear filters
  1. Brian

    The product functions as advertised

    0
    0
Add a review

Brand

Hioki

Hioki

Hioki is a renowned Japanese brand known for its expertise in developing and manufacturing electrical measuring instruments. The company, Hioki E.E. Corporation, was established in 1935, and since then, it has committed itself to providing innovative solutions in the field of electrical measurement.

Hioki's product range is extensive, including devices such as digital multimeters, clamp meters, power meters, and oscilloscopes. These instruments are vital for various applications in research and development, maintenance, and production testing across industries like electronics, energy, and automotive. One of the key strengths of Hioki is its focus on precision and reliability, traits that are crucial in measurement instruments. Hioki’s products are designed to offer accuracy and durability, which make them preferred choices among professionals worldwide.

Moreover, Hioki emphasizes technological innovation and quality. The company invests significantly in research and development to keep up with evolving technological trends and to ensure their products meet the highest standards. This commitment to quality is reflected in their adherence to international certifications and standards. Hioki also values environmental sustainability, integrating eco-friendly practices in their operations and product designs. This includes efforts to reduce the environmental impact of their manufacturing processes and to design products that are energy efficient.

datasheet

Data Sheet

specifications

Technical Specifications

Measurement Line Type Single-phase 2-wire, Single-phase 3-wire, Three-phase 3-wire or Three-phase 4-wire plus one extra input channel for voltage, current, power measurement (AC or DC measurement)
Voltage Ranges Voltage measurement: 600.00 V rms
Transient measurement: 6.0000 kV peak
Current Ranges 500.00 mA to 5.0000 kA AC (depends on current sensor in use)
Power Ranges 300.00 W to 3.0000 MW (determined automatically based on voltage and current range in use)
Basic Accuracy Voltage: ±0.1% of nominal voltage
Current: ±0.1 % rdg. ±0.1 % f.s. + current sensor accuracy
Active power: ±0.2 % rdg. ±0.1 % f.s. + current sensor accuracy
Measurement Items 1. Transient voltage: 2 MHz sampling
2. Frequency cycle: Calculated as one cycle, 40 to 70 Hz
3. Voltage (1/2) RMS: one cycle calculation refreshed every half cycle
4. Voltage swell, Voltage dips, Voltage interruption
5. Inrush current
6. Voltage waveform comparison
7. Instantaneous flicker value: As per IEC61000-4-15
8. 200 ms frequency: Calculated as 10 or 12 cycles, 40 to 70 Hz
9. 10 sec frequency: Calculated as the whole-cycle time during the specified 10 s period, 40 to 70 Hz
10. Voltage waveform peak, Current waveform peak
11. Voltage, Current, Active power, Apparent power, Reactive power, Active energy, Reactive energy, Power factor, Displacement power factor, Voltage unbalance factor, Current unbalance factor, and efficiency
12. High-order harmonic component (voltage/ current): 2 kHz to 80 kHz
13. Harmonic/ Harmonic phase angle (voltage/ current), Harmonic power: 0th to 50th orders
14. Harmonic voltage-current phase angle: 1st to 50th orders
15. Total harmonic distortion factor (voltage/ current)
16. Inter harmonic (voltage/ current): 0.5th to 49.5th order
17. K Factor (multiplication factor)
18. IEC Flicker, Δ V10 Flicker
19. Mains signaling voltage
Record Repeated ON: 1 year, Maximum recording event: 9999 × 366 days (up to 9999 events per day)
Repeated off: 35 days, maximum recording event: 9999 events
Interfaces SD/SDHC memory card, LAN (HTTP server function / FTP function), USB2.0 (for communication)
Display 6.5-inch TFT color LCD (640 × 480 dots)
Power Supply AC adapter Z1002 (100 V to 240 V AC, 50/60 Hz, rated current 1.7 A), Battery Pack Z1003 (Continuous use: 180 minutes, Charging time: Max. 5 hr 30 m with AC adapter)
Dimensions and Mass 300 mm (11.81 in) W × 211 mm (8.31 in) H × 68 mm (2.68 in) D, 2.6 kg (91.7 oz) (including Battery Pack Z1003)

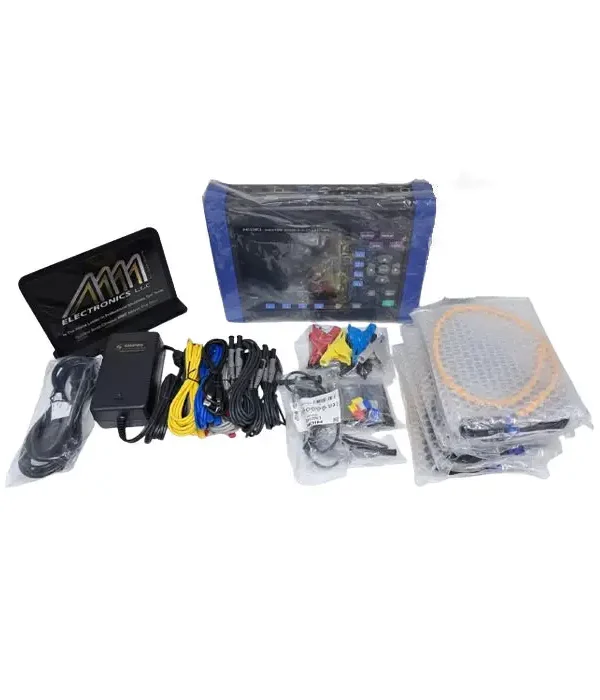

Included Accessories Instruction manual ×1, Measurement guide ×1, Voltage Cord L1000 ×1 set (Red/ Yellow/ Blue/ Gray each 1, Black 4, 3m (9.84ft) length, Alligator clip ×8), Spiral tube x20, Color clip, AC Adapter Z1002 ×1, Strap ×1, USB cable (1 m 3.28 ft length) ×1, Battery pack Z1003 ×1, SD Memory Card 2GB Z4001 ×1, Application software (PQ ONE) ×1
