Description

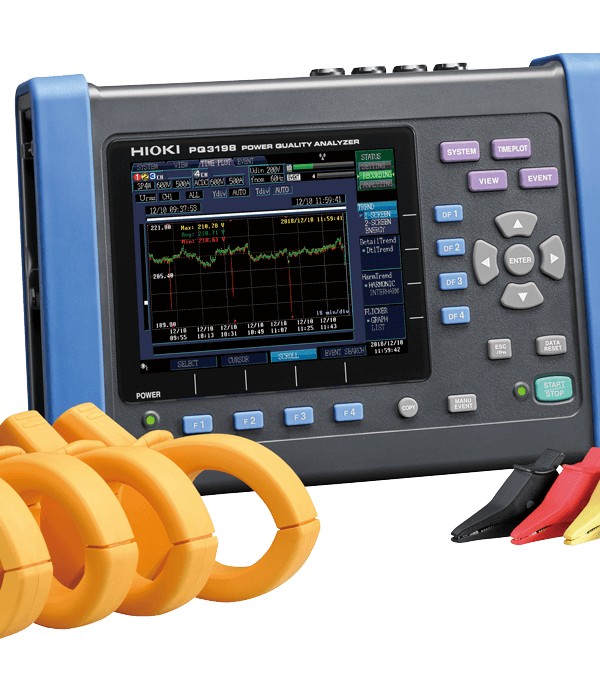

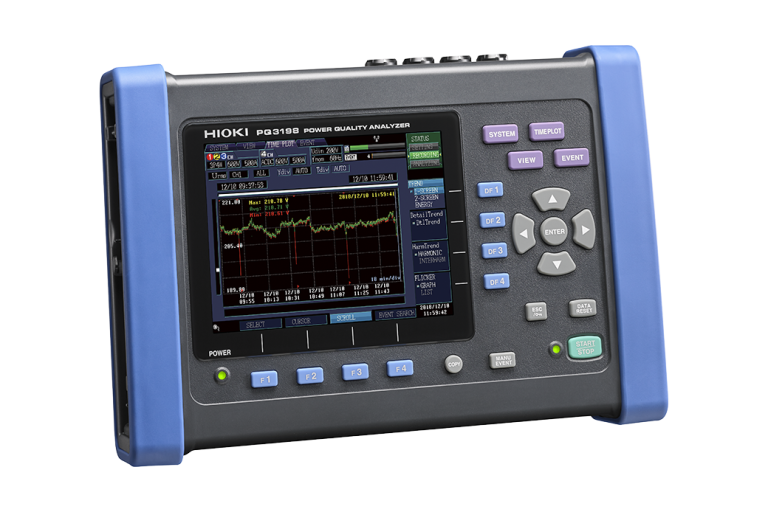

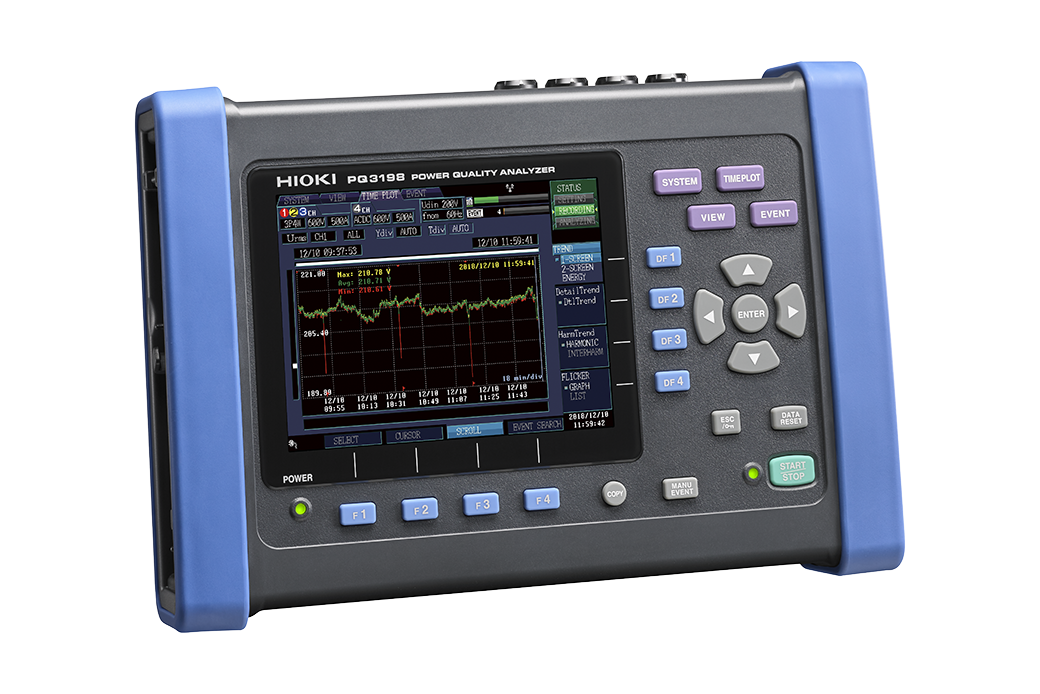

At MME, we offer the Hioki PQ3198-92 Power Quality Analyzer, a cutting-edge device designed to measure and analyze power quality in various applications. With its advanced features and reliable performance, this analyzer is perfect for power quality analysis in industries such as manufacturing, healthcare, and data centers.

Whether you’re looking to monitor voltage, current, or power quality, the Hioki PQ3198-92 has got you covered. Its Hioki technology ensures accurate and reliable measurements, making it an essential tool for any power quality analysis application.

Hioki PQ3198-92 Key Features

The Hioki PQ3198-92 Power Quality Analyzer features a range of advanced measurement capabilities, including:

Transient voltage measurement up to 6.0000 kV peak.
Frequency cycle measurement calculated as one cycle, 40 to 70 Hz.
Voltage (1/2) RMS measurement refreshed every half cycle.
Current (1/2) RMS measurement half-cycle calculation.
Voltage swell, voltage dips, and voltage interruption measurement.
Inrush current measurement.
Voltage waveform comparison.
Instantaneous flicker value measurement as per IEC61000-4-15.
200 ms frequency measurement calculated as 10 or 12 cycles, 40 to 70 Hz.
10 sec frequency measurement calculated as the whole-cycle time during the specified 10 s period, 40 to 70 Hz.
Voltage waveform peak and current waveform peak measurement.
Measurement of various power quality parameters, including voltage, current, active power, apparent power, reactive power, active energy, reactive energy, power factor, displacement power factor, voltage unbalance factor, current unbalance factor, and efficiency.
High-order harmonic component measurement (voltage/current) up to 80 kHz.
Harmonic/harmonic phase angle measurement (voltage/current) up to 50th orders.
Harmonic voltage-current phase angle measurement up to 50th orders.
Total harmonic distortion factor measurement (voltage/current).
Inter harmonic measurement (voltage/current) up to 49.5th order.
K Factor (multiplication factor) measurement.
IEC Flicker and Δ V10 Flicker measurement.

Who Needs the Hioki PQ3198-92?

The Hioki PQ3198-92 Power Quality Analyzer is designed for various applications, including:

Manufacturing facilities, where power quality is critical for production efficiency and product quality.

Healthcare facilities, where power quality is essential for patient safety and medical equipment performance.

Data centers, where power quality is critical for data integrity and system uptime.

Research and development facilities, where power quality is essential for testing and validation of new technologies.

Hioki PQ3198-92 Applications

The Hioki PQ3198-92 Power Quality Analyzer is suitable for a range of applications, including:

Power quality analysis in industrial and commercial settings.
Power system design and optimization for improved efficiency and reliability.
Power quality monitoring for real-time data and alerts.
Power system fault detection and diagnosis for improved maintenance and repair.

Why Buy Hioki PQ3198-92 from mme-ae?

Read more in our best power quality analyzers.

At mme-ae, we offer the Hioki PQ3198-92 Power Quality Analyzer at competitive prices, along with excellent customer support and service. Our team of experts is dedicated to helping you find the right solution for your power quality analysis needs.

We also offer a range of power quality analyzers from leading manufacturers, including Hioki. Whether you’re looking for a basic or advanced power quality analyzer, we have the solution for you.

Hioki PQ3198-92 Specifications

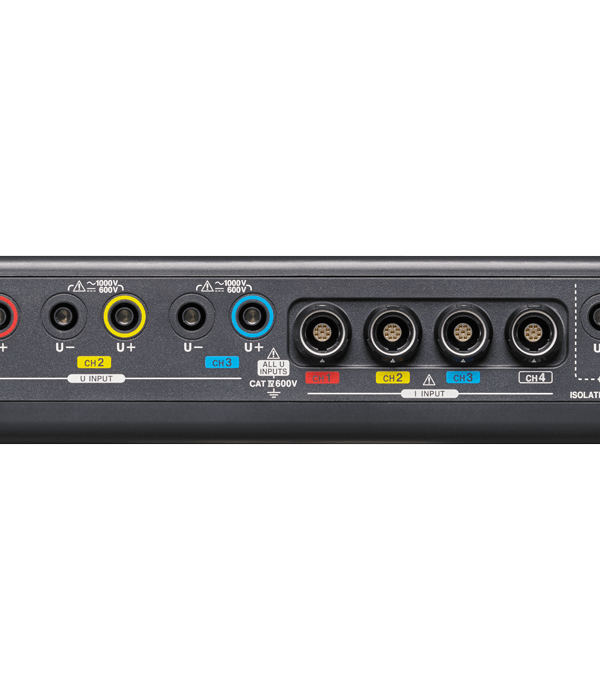

Measurement line type	Single-phase 2-wire, Single-phase 3-wire, Three-phase 3-wire or Three-phase 4-wire plus one extra input channel for voltage, current, power measurement (AC or DC measurement)
Voltage ranges	Voltage measurement: 600.00 V rms Transient measurement 6.0000 kV peak
Current ranges	500.00 mA to 5.0000 kA AC (depends on current sensor in use)
Power ranges	300.00 W to 3.0000 MW (determined automatically based on voltage and current range in use)
Basic accuracy	Voltage: ±0.1% of nominal voltage Current: ±0.1 % rdg. ±0.1 % f.s. + current sensor accuracy Active power: ±0.2 % rdg. ±0.1 % f.s. + current sensor accuracy
Measurement items	1. Transient voltage : 2 MHz sampling 2. Frequency cycle : Calculated as one cycle, 40 to 70 Hz 3. Voltage (1/2) RMS: one cycle calculation refreshed every half cycle Current (1/2) RMS: half-cycle calculation 4. Voltage swell, Voltage dips, Voltage interruption 5. Inrush current 6. Voltage waveform comparison 7. Instantaneous flicker value: As per IEC61000-4-15 8. 200 ms frequency: Calculated as 10 or 12 cycles,40 to 70 Hz 9. 10 sec frequency: Calculated as the whole-cycle time during the specified 10 s period, 40 to 70 Hz 10. Voltage waveform peak, Current waveform peak 11. Voltage, Current, Active power, Apparent power, Reactive power, Active energy, Reactive energy, Power factor, Displacement power factor, Voltage unbalance factor, Current unbalance factor, and efficiency 12. High-order harmonic* component (voltage/ current): 2 kHz to 80 kHz *Supraharmonic 13. Harmonic/ Harmonic phase angle (voltage/ current), Harmonic power: 0th to 50 th orders 14. Harmonic voltage-current phase angle: 1th to 50 th orders 15. Total harmonic distortion factor (voltage/ current) 16. Inter harmonic (voltage/ current): 0.5 th to 49.5 th order 17. K Factor (multiplication factor) 18. IEC Flicker, Δ V10 Flicker 19. Mains signaling voltage
Record	Repeated ON: 1 year, Maximum recording event: 9999 × 366 days (up to 9999 events per day) Repeated off: 35 days, maximum recording event: 9999 events
Interfaces	SD/SDHC memory card, LAN (HTTP server function / FTP function), USB2.0 (for communication)
Display	6.5-inch TFT color LCD (640 × 480 dots)
Power supply	AC adapter Z1002 (100 V to 240 V AC, 50/60 Hz, rated current 1.7 A), Battery Pack Z1003 (Continuous use: 180 minutes, Charging time: Max. 5 hr 30 m with AC adapter)
Dimensions and mass	300 mm (11.81 in)W × 211 mm (8.31 in)H × 68 mm (2.68 in)D, 2.6 kg (91.7 oz) (including Battery Pack Z1003)
Included accessories	Instruction manual ×1, Measurement guide ×1, Voltage Cord L1000 ×1 set (Red/ Yellow/ Blue/ Gray each 1, Black 4, 3m (9.84ft) length, Alligator clip ×8), Spiral tube x20, Color clip, AC Adapter Z1002 ×1, Strap ×1, USB cable (1 m 3.28 ft length) ×1, Battery pack Z1003 ×1, SD Memory Card 2GB Z4001 ×1
