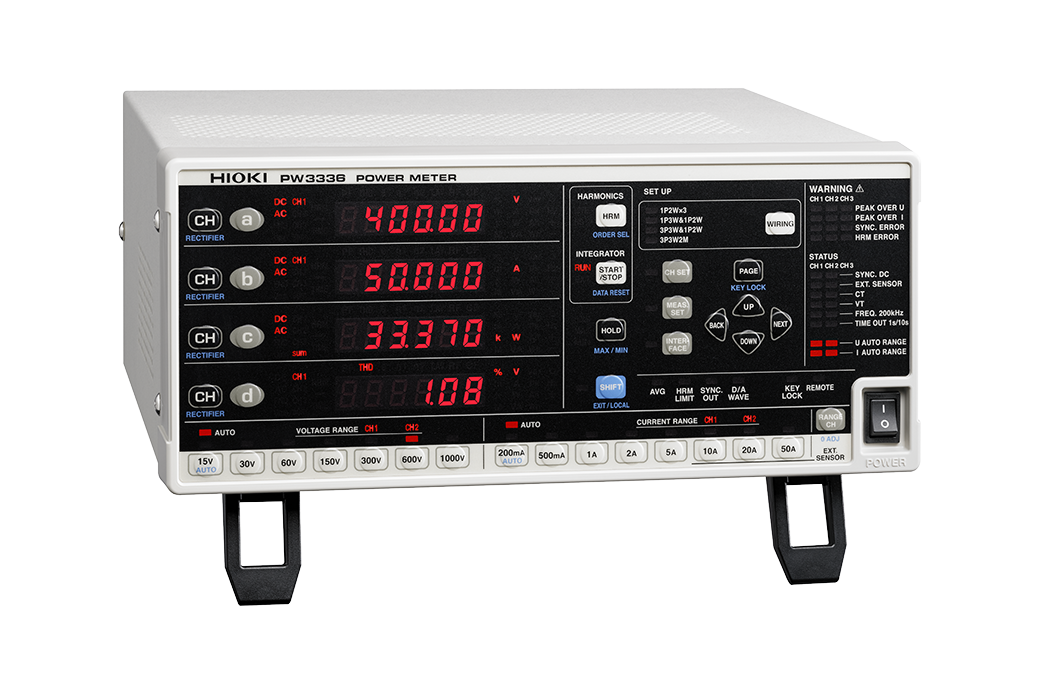

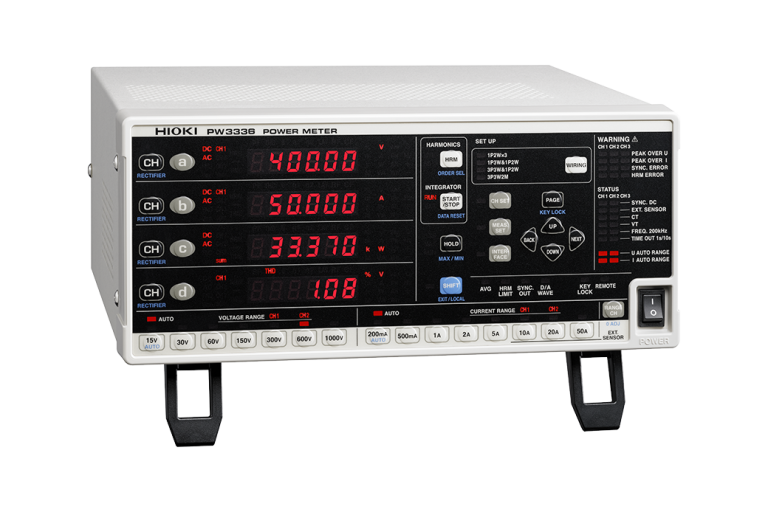

Hioki PW3336-02 POWER METER

At Mohammad Mahdi Electronics, we offer the Hioki PW3336-02 POWER METER, a versatile and accurate power measurement tool designed for a wide range of applications. With its single-phase and three-phase capabilities, this power meter can handle various power measurement tasks with ease.

Whether you’re working in a laboratory, factory, or field, the Hioki PW3336-02 is an excellent choice for anyone who needs to measure power with high accuracy. Its wide measurement range for voltage and current ensures that you can capture even the smallest changes in power consumption.

Hioki PW3336-02 Key Features

The Hioki PW3336-02 power meter offers a range of advanced features that make it an ideal choice for power measurement applications. Some of its key features include:

• Measurement lines: Single-phase 2-wires, single-phase 3-wires, 3-phase 3-wires
• Measurement items: Voltage, Current, Active power, Apparent power, Reactive power, Power factor, Phase angle, Frequency, Efficiency, Current integration, Active power integration, Integrated time, Voltage waveform peak value, Current waveform peak value, Voltage crest factor, Current crest factor, Time average current, Time average active power, Voltage ripple factor, Current ripple factor
• Harmonic parameters: Synchronization frequency range: 10 Hz to 640 Hz, Analysis order up to 50th Harmonic voltage RMS value, Harmonic current RMS value, Harmonic active power, Total harmonic voltage distortion, Total harmonic current distortion, Voltage fundamental waveform, Current fundamental waveform, Active power fundamental waveform, Apparent power fundamental waveform, Reactive power fundamental waveform, Power factor fundamental waveform (displacement power factor), Voltage current phase difference fundamental waveform, Interchannel voltage fundamental wave phase difference, Interchannel current fundamental wave phase difference, Harmonic voltage content %, Harmonic current content %, Harmonic active power content %
• Measurement range: [Voltage] 0.15 V to 1000 V AC/DC, [Current] Direct input: 2 mA to 65 A AC/DC, For AC/DC measurement using the CT6877A as an example: 4 A to 2000 A AC/DC (typical accuracy ±0.348%), For AC measurement using the CT9667-01 as an example: 10 A to 5000 A AC (typical accuracy ±2.6%)
• Integration measurement: [Current] No.of displayed digits: 6 digits (from 0.00000 mAh, Polarity-independent integration and Sum value), [Active power] No.of displayed digits: 6 digits (from 0.00000 mWh, Polarity-independent integration and Sum value)
• Input resistance: [Voltage] 2 MΩ, [Current] 1 mΩ or less (direct input)
• Basic accuracy: ±0.1% rdg. ±0.1% f.s. (DC) ±0.1% rdg. ±0.05% f.s. (45 Hz to 66 Hz, at Input ±0.15% rdg. (45 Hz to 66 Hz, at 50% f.s. ≤ Input)
• Display refresh rate: 5 times/s to 20 seconds (depend on average times settings)
• Frequency characteristics: DC, 0.1 Hz to 100 kHz
• D/A output: 16 channels (selectable from following it

Who Needs the Hioki PW3336-02?

The Hioki PW3336-02 power meter is designed for a wide range of applications, including:

Power quality analysis and monitoring

Energy management and optimization

Research and development

Field measurements and testing

Industrial process control and automation

Power distribution and transmission system monitoring

And many more

Hioki PW3336-02 Applications

The Hioki PW3336-02 power meter can be used in a variety of applications, including:

• Power quality analysis and monitoring
• Energy management and optimization
• Research and development
• Field measurements and testing
• Industrial process control and automation
• Power distribution and transmission system monitoring

Why Buy Hioki PW3336-02 from Mohammad Mahdi Electronics?

Browse our power quality analyzers. Read more in our best power quality analyzers.

At Mohammad Mahdi Electronics, we offer the Hioki PW3336-02 POWER METER at a competitive price, with fast shipping and excellent customer service. We are a trusted supplier of Hioki products, and we guarantee the quality and authenticity of our products.

Whether you’re looking for a power meter for research and development, industrial process control, or power distribution and transmission system monitoring, the Hioki PW3336-02 is an excellent choice. With its advanced features and high accuracy, this power meter is designed to meet the needs of even the most demanding applications.

Hioki PW3336-02 Specifications
