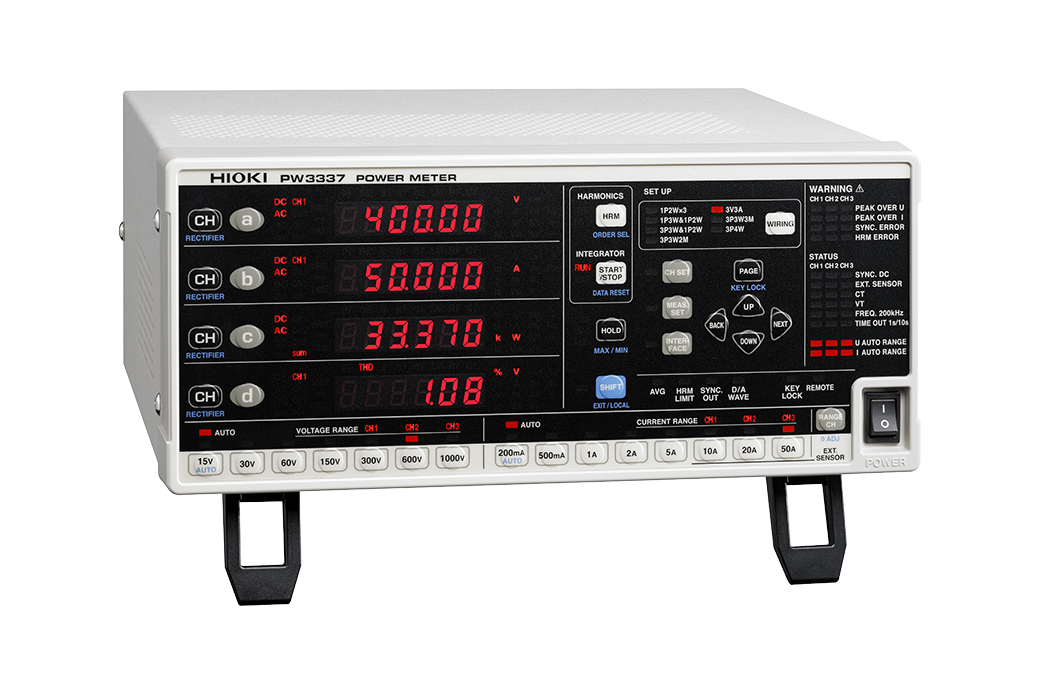

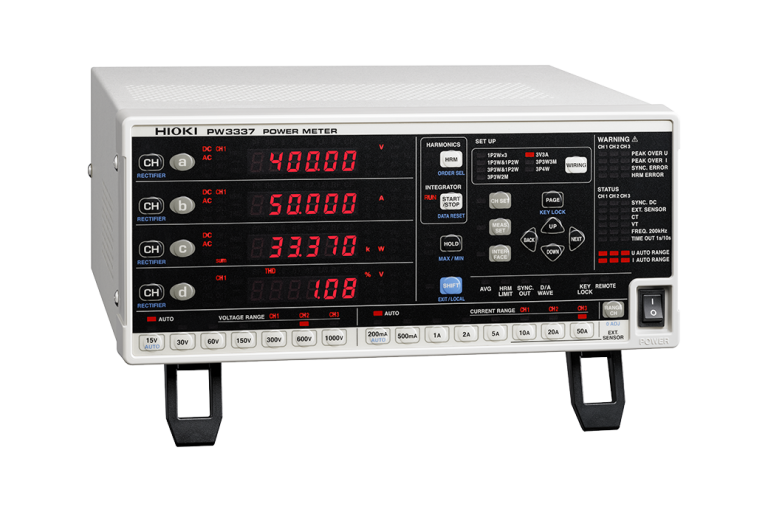

Hioki PW3337-01 POWER METER | Mohammad Mahdi Electronics

The Hioki PW3337-01 POWER METER is a versatile and accurate power measurement tool designed for a wide range of applications. With its ability to measure power quality in various configurations, including single-phase 2-wires, single-phase 3-wires, 3-phase 3-wires, and 3-phase 4-wires, this power meter is an essential tool for any professional.

Whether you’re working with Hioki instruments or other brands, the PW3337-01 POWER METER is designed to provide accurate and reliable measurements. With its ability to measure up to 50th Harmonic voltage RMS value, this power meter is ideal for applications where harmonic distortion is a concern.

Hioki PW3337-01 Key Features

The Hioki PW3337-01 POWER METER features a range of key specifications, including:

• Measurement lines: Single-phase 2-wires, single-phase 3-wires, 3-phase 3-wires, 3-phase 4-wires
• Measurement items: Voltage, Current, Active power, Apparent power, Reactive power, Power factor, Phase angle, Frequency, Efficiency, Current integration, Active power integration, Integrated time, Voltage waveform peak value, Current waveform peak value, Voltage crest factor, Current crest factor, Time average current, Time average active power, Voltage ripple factor, Current ripple factor
• Harmonic parameters: Synchronization frequency range: 10 Hz to 640 Hz, Analysis order up to 50th Harmonic voltage RMS value, Harmonic current RMS value, Harmonic active power, Total harmonic voltage distortion, Total harmonic current distortion, Voltage fundamental waveform, Current fundamental waveform, Active power fundamental waveform, Apparent power fundamental waveform, Reactive power fundamental waveform, Power factor fundamental waveform (displacement power factor), Voltage current phase difference fundamental waveform, Interchannel voltage fundamental wave phase difference, Interchannel current fundamental wave phase difference, Harmonic voltage content %, Harmonic current content %, Harmonic active power content %
• Measurement range: [Voltage] 0.15 V to 1000 V AC/DC, [Current] Direct input: 2 mA to 65 A AC/DC, For AC/DC measurement using the CT6877A as an example: 4 A to 2000 A AC/DC, For AC measurement using the CT9667-01 as an example: 10 A to 5000 A AC
• Integration measurement: [Current] No.of displayed digits: 6 digits (from 0.00000 mAh, Polarity-independent integration and Sum value), [Active power] No.of displayed digits: 6 digits (from 0.00000 mWh, Polarity-independent integration and Sum value)
• Input resistance: [Voltage] 2 MΩ, [Current] 1 mΩ or less (direct input)
• Basic accuracy: ±0.1% rdg. ±0.1% f.s. (DC) ±0.1% rdg. ±0.05% f.s. (45 Hz to 66 Hz, at Input ±0.15% rdg. (45 Hz to 66 Hz, at 50% f.s. ≤ Input)
• Display refresh rate: 5 times/s to 20 seconds (depends on average times settings)
• Frequency characteristics: DC, 0.1 Hz to 100 kHz
• D/A output: 16 channels (selectable)

Who Needs the Hioki PW3337-01?

The Hioki PW3337-01 POWER METER is designed for a wide range of applications, including:

Power quality analysis

Harmonic distortion measurement

Power measurement in various configurations

Integration measurement

Frequency measurement

Other applications where accurate power measurement is required

Hioki PW3337-01 Applications

The Hioki PW3337-01 POWER METER is ideal for a wide range of applications, including:

• Power quality analysis
• Harmonic distortion measurement
• Power measurement in various configurations
• Integration measurement
• Frequency measurement

Why Buy Hioki PW3337-01 from Mohammad Mahdi Electronics?

Read more in our best power quality analyzers.

At Mohammad Mahdi Electronics, we offer the Hioki PW3337-01 POWER METER at a competitive price, with fast shipping and excellent customer service. Whether you’re a professional or a hobbyist, we have the expertise and resources to help you find the right power meter for your needs.

With our wide range of power quality analyzers and other products, we’re confident that you’ll find the perfect solution for your power measurement needs. Contact us today to learn more about the Hioki PW3337-01 POWER METER and how it can benefit your work or hobby.

Hioki PW3337-01 Specifications
