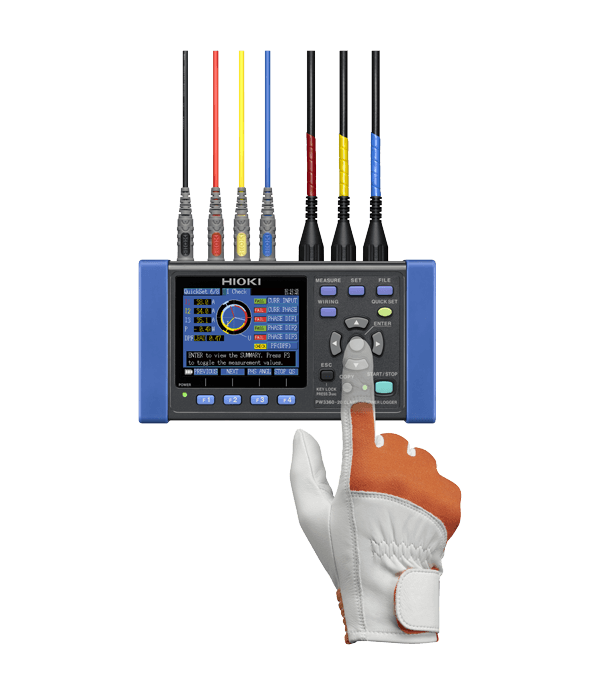

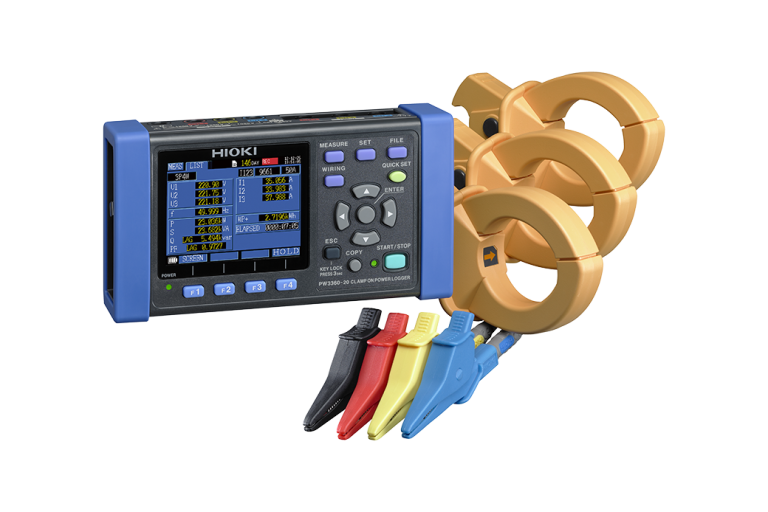

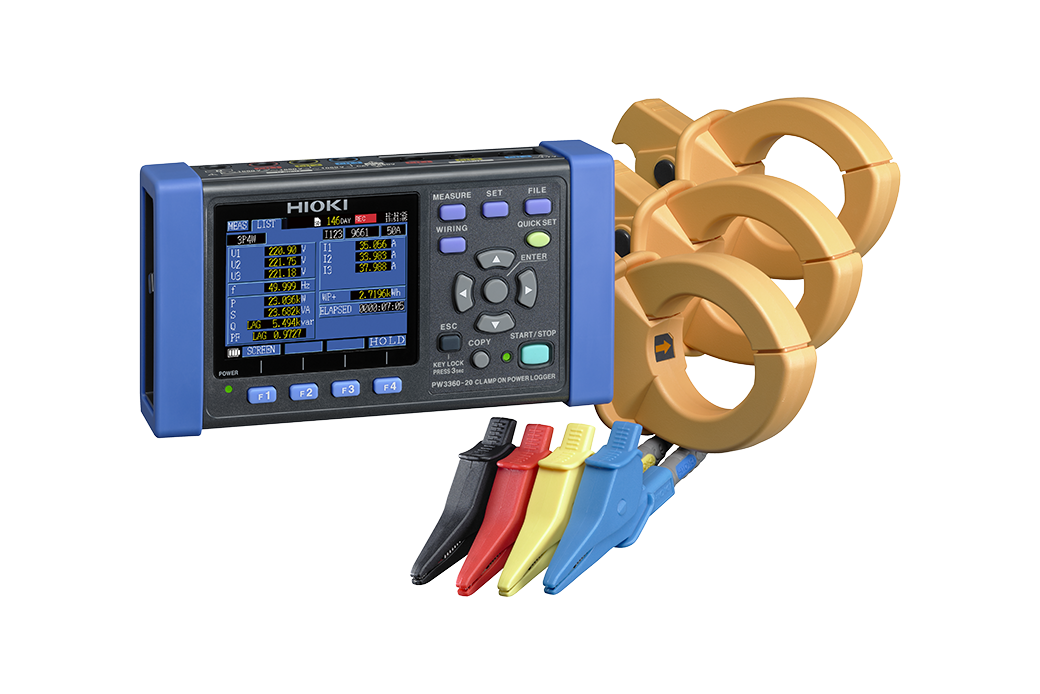

Hioki PW3360-31 Clamp On Power Logger — Electrical Instruments

At MME, we understand the importance of accurate power measurement in various industries. That’s why we offer the Hioki PW3360-31 Clamp On Power Logger, a powerful tool designed to measure power consumption with high accuracy. With its advanced features and user-friendly interface, this logger is perfect for electrical engineers, researchers, and anyone who needs to measure power consumption in real-time.

Whether you’re working on a project that requires precise power measurement or simply need to monitor your energy consumption, the Hioki PW3360-31 is the perfect solution. Its high accuracy and advanced features make it an essential tool for anyone who needs to measure power consumption.

Hioki PW3360-31 Key Features

The Hioki PW3360-31 Clamp On Power Logger offers a range of advanced features that make it an essential tool for power measurement. Some of its key features include:

• Measurement line & number of circuits: 50/60 Hz, Single phase 2 wires (1/2/3 circuits), Single phase 3 wires (1 circuit), Three phases 3 wires (1 circuit), Three phases 4 wires (1 circuit), Current only: 1 to 3 channels
• Measurement items: Voltage RMS, current RMS, voltage fundamental wave value, current fundamental wave value, voltage fundamental wave phase angle, current fundamental wave phase angle, frequency (U1), voltage waveform peak (absolute value), current waveform peak (absolute value), active power, reactive power (with lag/lead display), apparent power, power factor (with lag/lead display) or displacement power factor (with lag/lead display), active energy (consumption, regeneration), reactive energy (lag, lead), energy cost display, active power demand quantity (consumption, regeneration), reactive power demand quantity (lag, lead), active power demand value (consumption, regeneration), reactive power demand value (lag, lead), power factor demand, pulse input [PW3360-21 only]: Harmonic voltage level, harmonic current level, harmonic power level, content percentage, phase angle, total harmonic distortion (THD-F or THD-R), up to 40th order
• Voltage ranges: 600 V AC (Effective measurement range: 90.00 V to 780.00 V)
• Current ranges: 500.00 mA to 5.0000 kA AC (depends on current sensor in use), 50.000 mA to 5.0000 A AC (Leak clamp on sensor only)
• Power ranges: 300.00 W to 9.0000 MW (depends on voltage/current combination and measured line type)
• Basic accuracy: Voltage : ±0.3% rdg. ±0.1% f.s Current : ±0.3% rdg. ±0.1% f.s. + clamp sensor accuracy Active power : ±0.3% rdg. ±0.1% f.s. + clamp sensor accuracy (at power factor = 1)
• Display update rate: 0.5 sec (except when accessing SD card or internal memory, or during LAN/USB communication)
• Save destination: SD memory card, or internal memory at real time
• Data save interval: 1 sec to 30 sec, 1 minute to 60 minutes, 14 selections
• Save items: Measurement value save: Average only / Average, Max./Min. value, [PW3360-21 only]: Harmonic data save: Average only / average, max./min. value in binary format, Screen copy: BMP form (saved every 5 min. at minimum interval time), Waveform save: Binary waveform data
• Interfaces: SD/SDHC memory card LAN 100BASE-TX: HTTP server function USB 2.0: When connected to a PC, the SD Card and internal memory are recognized as removable storage devices, remote settings via communication program, data download Pulse output: proportional to active power consumption when measuring i

Who Needs the Hioki PW3360-31?

The Hioki PW3360-31 Clamp On Power Logger is designed for electrical engineers, researchers, and anyone who needs to measure power consumption in real-time. Its advanced features and user-friendly interface make it an essential tool for anyone who needs to monitor their energy consumption.

Whether you’re working on a project that requires precise power measurement or simply need to monitor your energy consumption, the Hioki PW3360-31 is the perfect solution. Its high accuracy and advanced features make it an essential tool for anyone who needs to measure power consumption.

At mme-ae, we understand the importance of accurate power measurement in various industries. That’s why we offer the Hioki PW3360-31 Clamp On Power Logger, a powerful tool designed to measure power consumption with high accuracy.

Hioki PW3360-31 Applications

The Hioki PW3360-31 Clamp On Power Logger has a wide range of applications, including:

Why Buy Hioki PW3360-31 from Mohammad Mahdi Electronics?

Browse our electrical instruments. Read more in our electrical safety standards guide.

At Mohammad Mahdi Electronics, we offer the Hioki PW3360-31 Clamp On Power Logger at a competitive price. Our team of experts is always available to provide support and guidance on the use of this powerful tool.

We understand the importance of accurate power measurement in various industries, and that’s why we offer the Hioki PW3360-31 Clamp On Power Logger, a powerful tool designed to measure power consumption with high accuracy.

Hioki PW3360-31 Specifications

Buy Hioki PW3360-31 Clamp On Power Logger from MME

At MME, we offer the Hioki PW3360-31 Clamp On Power Logger at a competitive price. Our team of experts is always available to provide support and guidance on the use of this powerful tool.

Whether you’re working on a project that requires precise power measurement or simply need to monitor your energy consumption, the Hioki PW3360-31 is the perfect solution. Its high accuracy and advanced features make it an essential tool for anyone who needs to measure power consumption.

Don’t wait any longer, buy the Hioki PW3360-31 Clamp On Power Logger from MME today and start measuring power consumption with high accuracy.
