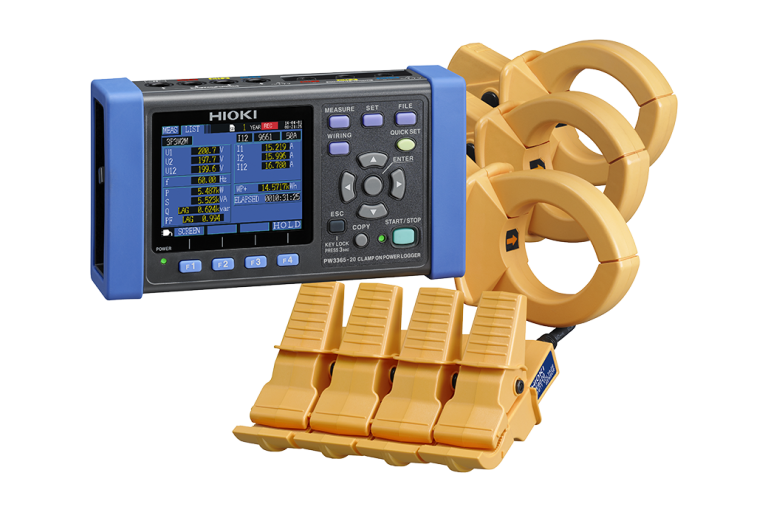

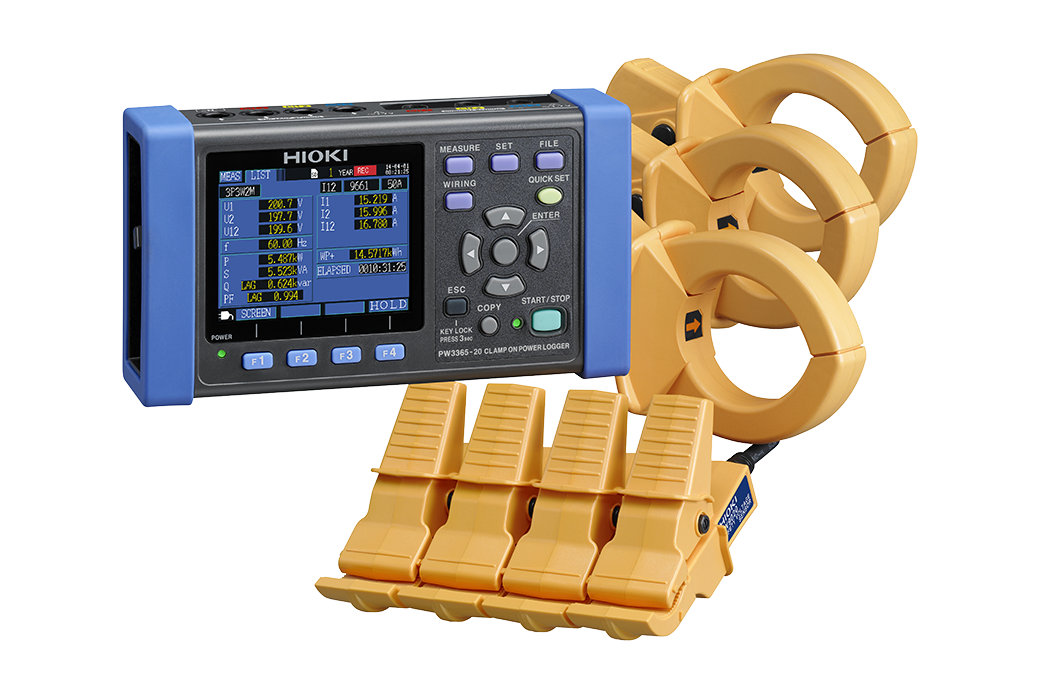

Hioki PW3365-20 Clamp On Power Logger — Electrical Instruments

At mme-ae, we offer the Hioki PW3365-20 Clamp On Power Logger, a powerful tool for measuring electrical power in various applications. With its high accuracy and wide measurement range, this logger is ideal for electrical instruments professionals.

The PW3365-20 features a 50/60 Hz measurement line and can measure up to 3 channels of current. It also includes harmonic analysis up to the 13th order, making it a valuable tool for electrical safety standards compliance.

Hioki PW3365-20 Key Features

The PW3365-20 Clamp On Power Logger offers a range of key features, including:

• Measurement line & number of circuits: 50/60 Hz, Single phase 2 wires (1/2/3 circuits), Single phase 3 wires (1 circuit), Three phases 3 wires (1 circuit), Three phases 4 wires (1 circuit), Current only: 1 to 3 channels
• Measurement items: Voltage RMS, current RMS, voltage fundamental wave value, current fundamental wave value, voltage fundamental wave phase angle, current fundamental wave phase angle, frequency (U1), voltage waveform peak (absolute value), current waveform peak (absolute value), active power, reactive power, apparent power, power factor (with lag/lead display) or displacement power factor (with lag/lead display), active energy (consumption, regeneration), reactive energy (lag, lead), energy cost display, active power demand quantity (consumption, regeneration), reactive power demand quantity (lag, lead), active power demand value (consumption, regeneration), reactive power demand value (lag, lead), power factor demand
• Voltage ranges: 400 V AC (Effective measurement range: 90.0 V to 520.0 V)
• Harmonic: Harmonic voltage, harmonic current, voltage total harmonic distortion (THD-F or THD-R), current total harmonic distortion (THD-F or TDH-R), up to 13th order
• Current ranges: 500.00 mA to 5.0000 kA AC (depends on current sensor in use), 50.000 mA to 5.0000 A AC (Leak clamp on sensor only)
• Power ranges: 200.00 W to 6.0000 MW (depends on voltage/current combination and measured line type)
• Basic accuracy: Voltage : ±1.5% rdg. ±0.2% f.s(combined accuracy with PW3365-20 + PW9020) Current : ±0.3% rdg. ±0.1% f.s. + clamp sensor accuracy Active power : ±2.0% rdg. ±0.3% f.s. + clamp sensor accuracy (at power factor = 1)
• Display update rate: 0.5 sec (except when accessing SD card or internal memory, or during LAN/USB communication)
• Save destination: SD/SDHC Memory card, or internal memory at real time
• Data save interval: 1 sec to 30 sec, 1 minute to 60 minutes, 14 selections
• Save items: Measurement value save: Average only / Average, Maximum, Minimum value Screen copy: BMP form (saved every 5 min. at minimum interval time) Waveform save: Binary waveform data
• Interfaces: SD/SDHC memory card, LAN 100BASE-TX: HTTP server function, remote settings via communication program, data download, USB 2.0: When connected to a PC, the SD Card and internal memory are recognized as removable storage devices, remote settings via communication program, data download
• Functions: Connection check, Quick Set navigation guide, clock
• Power supply: AC adapter Z1008: (100 to 240 V

Who Needs the Hioki PW3365-20?

The Hioki PW3365-20 Clamp On Power Logger is designed for professionals who need to measure electrical power in various applications. This includes:

Electrical engineers and technicians who need to measure power in industrial settings

Researchers who need to measure power in laboratory settings

Utility companies who need to measure power in the field

Anyone who needs to measure power in a variety of applications

Hioki PW3365-20 Applications

The Hioki PW3365-20 Clamp On Power Logger has a wide range of applications, including:

• Industrial power measurement
• Research and development
• Utility company field measurements
• Power quality analysis
• Energy auditing

Why Buy Hioki PW3365-20 from Mohammad Mahdi Electronics?

At Mohammad Mahdi Electronics, we offer the Hioki PW3365-20 Clamp On Power Logger at a competitive price. Our team of experts can help you choose the right product for your needs and provide you with excellent customer service.

We also offer a wide range of electrical instruments and Hioki products to meet your needs.

Hioki PW3365-20 Specifications
