Description

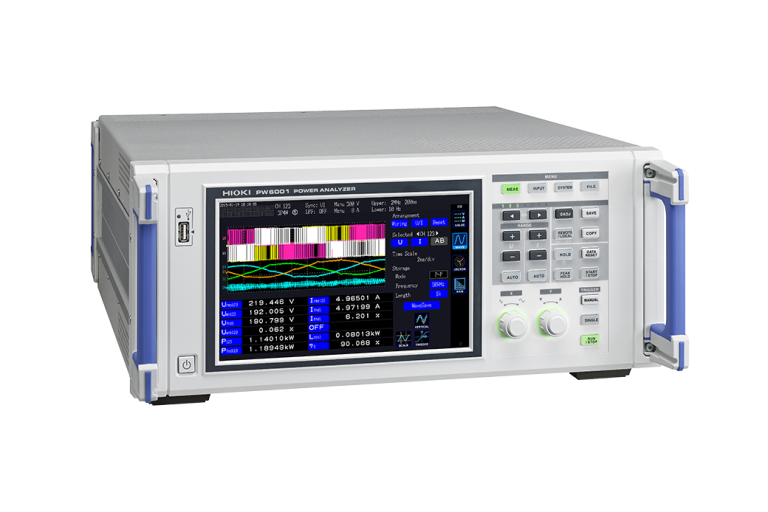

Welcome to the Hioki PW6001-05 POWER ANALYZER, a cutting-edge device designed to measure and analyze power quality in various applications. At Mohammad Mahdi Electronics, we offer this powerful tool to help you optimize your electrical systems and ensure reliable operation.

The Hioki PW6001-05 is a versatile power analyzer that can measure up to 6 channels simultaneously, providing a wide range of measurement parameters, including voltage, current, power, and frequency. With its advanced measurement capabilities, this device is ideal for applications such as power quality analysis, energy management, and electrical system design.

Hioki PW6001-05 Key Features

The Hioki PW6001-05 POWER ANALYZER boasts an impressive range of features, including:

Single-phase 2-wire, single-phase 3-wire, three-phase 3-wire, three-phase 4-wire measurement line types
Max. 6 channels for simultaneous voltage and current input
Measures 16 parameters, including voltage, current, power, and frequency
Wide measurement range: 6 to 1500 V, 400 mA to 50 kA, and 0.1 Hz to 2 MHz
Basic accuracy: ±0.02 % rdg. ±0.02 % f.s.
External interfaces: USB, LAN, GP-IB, RS-232C, and External control
Logger connectivity: Wireless data transfer to Hioki LR8410 Link-compatible loggers

Who Needs the Hioki PW6001-05?

The Hioki PW6001-05 POWER ANALYZER is designed for a wide range of applications, including:

Power quality analysis and energy management

Electrical system design and optimization

Research and development in power electronics and electrical engineering

Industrial automation and control

Power distribution and transmission

Hioki PW6001-05 Applications

The Hioki PW6001-05 POWER ANALYZER can be used in a variety of applications, including:

Power quality analysis and monitoring

Energy management and optimization

Electrical system design and testing

Research and development in power electronics and electrical engineering

Industrial automation and control

Power distribution and transmission

Why Buy Hioki PW6001-05 from Mohammad Mahdi Electronics?

Browse our power quality analyzers. Read more in our best power quality analyzers.

At Mohammad Mahdi Electronics, we offer the Hioki PW6001-05 POWER ANALYZER at competitive prices, along with exceptional customer service and support. Our team of experts can help you choose the right device for your needs and provide training and technical support to ensure you get the most out of your investment.

Whether you’re looking to optimize your electrical systems, improve power quality, or simply need a reliable power analyzer, the Hioki PW6001-05 is an excellent choice. Contact us today to learn more about this powerful device and how it can benefit your business or organization.

Hioki PW6001-05 Specifications

Measurement line type	Single-phase 2-wire, single-phase 3-wire, three-phase 3-wire, three-phase 4-wire

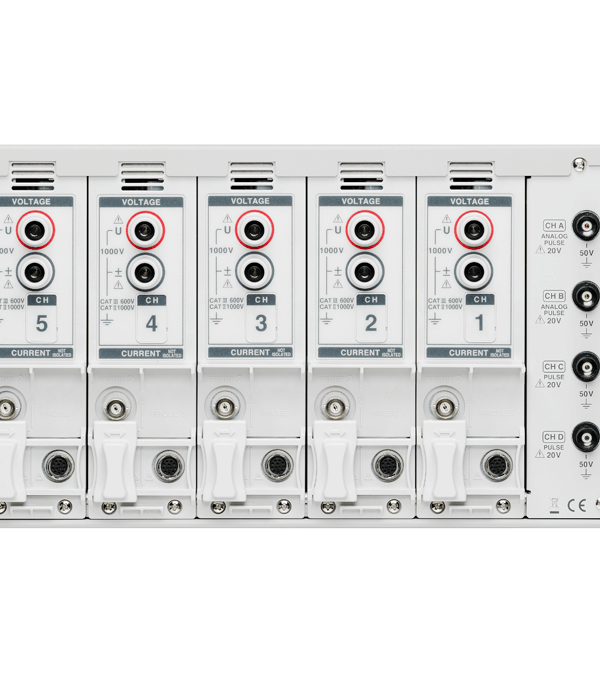

Number of input channels	Max. 6 channels; each input unit provides 1 channel for simultaneous voltage and current input (Voltage measurement unit: Photoisolated input, resistance voltage divider, Current measurement unit: Isolated input from current sensor)
Measurement items	Voltage (U), current (I), active power (P), apparent power (S), reactive power (Q), power factor (λ), phase angle (φ), frequency (f), efficiency (η), loss (Loss), voltage ripple factor (Urf), current ripple factor (Irf), current integration (Ih), power integration (WP), voltage peak (Upk), current peak (Ipk)
	Harmonic measurement: Harmonic active power, select calculation order from 2nd order to 100th order
	Waveform recording: Voltage and current waveforms/ Motor pulse: Always 5 MS/s Motor waveforms: Always 50 kS/s, 16 bits Recording capacity: 1 Mword × ((voltage + current) × number of channels + motor waveforms)
	Motor analysis (PW6001-11 to -16 only): Voltage, Torque, Rotation, Frequency, Slip, or Motor output
Measurement range	Voltage range: 6 to 1500 V, 8 ranges Current range (Probe 1) : 400 mA to 1 kA (depends on current sensor) Current range (Probe 2) : 100 mA to 50 kA (depends on current sensor) Power range: 2.40000W to 4.50000MW (depends on combination of voltage and current range) Frequency range: 0.1 Hz to 2 MHz
Basic accuracy	Voltage: ±0.02 % rdg. ±0.02 % f.s. Current: ±0.02 % rdg. ±0.02 % f.s. Active power: ±0.02 % rdg. ±0.03 % f.s.
Synchronization frequency range	Power measurement: 0.1 Hz to 2 MHz Harmonic measurement: 45 Hz to 66 Hz (IEC standard mode), 0.1 Hz to 300 kHz (Wideband mode)
Frequency band	DC, 0.1 Hz to 2 MHz
Data update rate	Power measurement: 10 ms/ 50 ms/ 200 ms Harmonic measurement: 200 ms (IEC standard mode), 50 ms (Wideband mode
Data save interval	OFF, 10 msec to 500 msec, 1 sec to 30 sec, 1 minute to 60 minutes User-selected from all measured values, including harmonic measured values, Specified measured values can be saved in internal memory or USB flash drive
External interfaces	USB (memory), LAN, GP-IB, RS-232C (for communication/LR8410 link), External control ,Synchronization control
Logger connectivity	Sends measured values wirelessly to logger by using a Bluetooth® wireless technology serial conversion adapter. (Supported devices: Hioki LR8410 Link-compatible loggers), Ver. 2.0 and later
Power supply	100 to 240 V AC, 50/60 Hz, 200 VA max
Dimensions and mass	430 mm (16.93 in)W × 177 mm (6.97 in)H × 450 mm (17.72 in)D, 14 kg (49.4 oz) (PW6001-16)
Included accessories	Instruction Manual ×1, Power cord ×1, D-sub connector × 1 (PW6001-1x only)
