Hioki pw6001-15 High Precision Power Analyzer
(No Reviews)
The Hioki PW6001-15 Power Analyzer is a versatile instrument that provides high accuracy, stability, and a wide range of measurement frequencies. It is an essential tool for manufacturers, engineers, and researchers working on energy conversion efficiency, motor and inverter analysis, and power quality analysis in various industries.
Terms of sending goods ›
Order Via phone number
Order Via Online Form
[custom_stock_status]
Description
Hioki pw6001-15 High Precision Power Analyzer
The Hioki PW6001-15 High Precision Power Analyzer is a state-of-the-art instrument designed to meet the increasing demands of manufacturers in measuring energy conversion efficiency for electric vehicles and solar power equipment. This power analyzer offers high accuracy, a broad range of measurement frequencies, and stability, making it an ideal tool for applications that require precise power analysis. In this article, we will explore the features, specifications, and applications of the Hioki PW6001-15 High Precision Power Analyzer, highlighting its benefits and advantages.
Features
The Hioki PW6001-15 is a power analyzer with world-class measurement accuracy (0.05%). It has a broad measurement frequency range of 0.1 Hz to 2 MHz, making it ideal for high-speed switching devices like silicon-carbide (SiC) inverters. It offers improved stability and noise resistance, waveform synchronization mode, and up to 12 measurement channels for single- and three-phase inverter motor system measurements.
Applications
The Hioki PW6001-15 power analyzer is a versatile tool that offers several applications. It can measure energy conversion efficiency in electric vehicles and solar power equipment. This makes it a must-have tool for manufacturers in these industries. Additionally, it can be used to analyze the efficiency of motors and inverters in various systems, helping engineers and researchers optimize their designs.
The power analyzer’s high accuracy and stability make it suitable for analyzing power quality issues in electrical systems, ensuring the reliability and performance of the equipment. Finally, researchers and developers working on advanced power electronics will find the Hioki PW6001-15 invaluable, as it provides them with the necessary measurements and analysis capabilities.
Advantages
- High Accuracy and Stability: With its world-class measurement accuracy and improved noise resistance, this power analyzer provides reliable and stable measurements, even in challenging environments.
- Wide Measurement Frequency Range: The Hioki PW6001-15 can handle high-speed switching devices, making it a versatile tool for various applications.
- Advanced Waveform Analysis Functionality: The waveform synchronization mode and 12 measurement channels allow for in-depth analysis of complex power waveforms, helping users gain a better understanding of their systems.
- User-Friendly Interface: This power analyzer features a user-friendly interface, making it easy to set up and operate, even for users with limited experience.
Hioki pw6001-15 High Precision Power Analyzer
- Measurement Line Type:
- Single-phase 2-wire
- Single-phase 3-wire
- Three-phase 3-wire
- Three-phase 4-wire
- Number of Input Channels: 5
- Measurement Items:
- Voltage (U)
- Current (I)
- Active power (P)
- Apparent power (S)
- Reactive power (Q)
- Power factor (λ)
- Phase angle (φ)
- Frequency (f)
- Efficiency (η)
- Loss (Loss)
- Voltage ripple factor (Urf)
- Current ripple factor (Irf)
- Current integration (Ih)
- Power integration (WP)
- Voltage peak (Upk)
- Current peak (Ipk)
- Motor Analysis Measurement Items:
- Voltage
- Torque
- Rotation
- Frequency
- Slip
- Motor output
- Voltage Range: 6 to 1500 V, 8 ranges
- Data Update Rate:
- Power measurement: 10 ms/ 50 ms/ 200 ms
- Harmonic measurement: 200 ms (IEC standard mode), 50 ms (Wideband mode)
- Data Save Interval:
- OFF
- 10 to 500 msec
- 1 to 30 sec
- 1 to 60 minutes
- User-selected from all measured values
- Including harmonic measured values
- Specified measured values can be saved in internal memory or USB flash drive
- External Interfaces: USB (memory), LAN, GP-IB, RS-232C, External control, Synchronization control
Additional information
| active__power__range__ac (power quality analyser) |
0-10MW |
|---|---|
| active__power__range__dc (power quality analyser) |
0-10kW |
| current__range__ac (power quality analyser) |
0-1000A |
| current__range__dc (power quality analyser) |
0-1000A |
| power__quality__type (power quality analyser) |
single phase and 3 phase |
| voltage__range__ac (power quality analyser) |
0-1500V |
| voltage__range__dc (power quality analyser) |
0-1500V |
Datasheet
Datasheet
specifications
specifications
| General | |
|---|---|
| Measurement line type | Single-phase 2-wire, single-phase 3-wire, three-phase 3-wire, three-phase 4-wire |

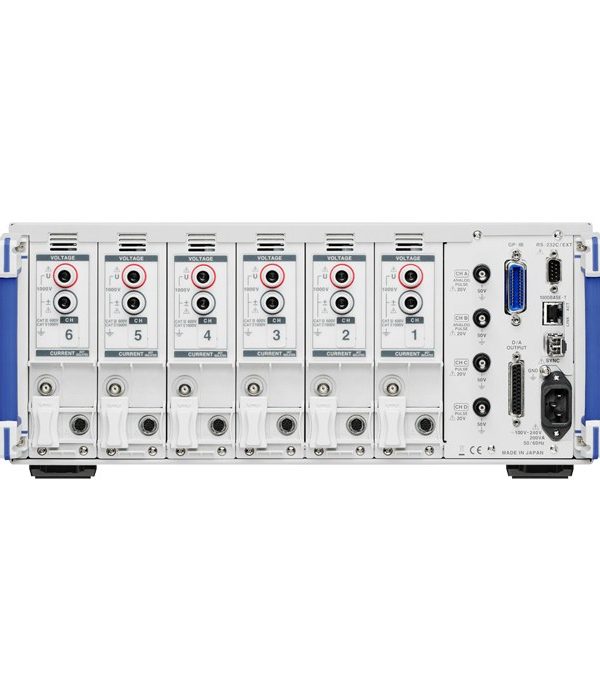

| Number of input channels | Max. 6 channels; each input unit provides 1 channel for simultaneous voltage and current input (Voltage measurement unit: Photoisolated input, resistance voltage divider; Current measurement unit: Isolated input from current sensor) |
| Measurement items | |
| Electrical parameters | Voltage (U), current (I), active power (P), apparent power (S), reactive power (Q), power factor (λ), phase angle (φ), frequency (f), efficiency (η), loss (Loss), voltage ripple factor (Urf), current ripple factor (Irf), current integration (Ih), power integration (WP), voltage peak (Upk), current peak (Ipk) |
| Harmonic measurement | Harmonic active power; selectable calculation order from 2nd to 100th |
| Waveform recording | Voltage and current waveforms / Motor pulse: Always 5 MS/s Motor waveforms: Always 50 kS/s, 16 bits Recording capacity: 1 Mword × ((voltage + current) × number of channels + motor waveforms) |
| Motor analysis (PW6001-11 to -16 only) |
Voltage, Torque, Rotation, Frequency, Slip, Motor output |
| Measurement ranges & accuracy | |
| Voltage range | 6 to 1500 V, 8 ranges |
| Current range (Probe 1) | 400 mA to 1 kA (depends on current sensor) |
| Current range (Probe 2) | 100 mA to 50 kA (depends on current sensor) |
| Power range | 2.40000 W to 4.50000 MW (depends on combination of voltage and current range) |
| Frequency range | 0.1 Hz to 2 MHz |
| Basic accuracy (Voltage) | ±0.02 % rdg. ±0.02 % f.s. |
| Basic accuracy (Current) | ±0.02 % rdg. ±0.02 % f.s. |
| Basic accuracy (Active power) | ±0.02 % rdg. ±0.03 % f.s. |
| Synchronization & harmonic | |
| Synchronization frequency range | Power measurement: 0.1 Hz to 2 MHz Harmonic measurement: 45 Hz to 66 Hz (IEC standard mode), 0.1 Hz to 300 kHz (Wideband mode) |
| Frequency band | DC, 0.1 Hz to 2 MHz |
| Speed / logging | |
| Data update rate | Power measurement: 10 ms / 50 ms / 200 ms Harmonic measurement: 200 ms (IEC standard mode), 50 ms (Wideband mode) |
| Data save interval | OFF, 10 msec to 500 msec, 1 sec to 30 sec, 1 minute to 60 minutes User-selected from all measured values, including harmonic measured values; specified measured values can be saved in internal memory or USB flash drive |
| Connectivity | |
| External interfaces | USB (memory), LAN, GP-IB, RS-232C (for communication / LR8410 link), External control, Synchronization control |
| Logger connectivity | Sends measured values wirelessly to logger via Bluetooth® serial conversion adapter (Supported: Hioki LR8410 Link-compatible loggers), Ver. 2.0 and later |
| Power & mechanics | |
| Power supply | 100 to 240 V AC, 50/60 Hz, 200 VA max |
| Dimensions and mass | 430 mm (16.93 in) W × 177 mm (6.97 in) H × 450 mm (17.72 in) D, 14 kg (49.4 oz) (PW6001-16) |
| Included accessories | |
| Items | Instruction Manual ×1, Power cord ×1, D-sub connector ×1 (PW6001-1x only) |
