Description

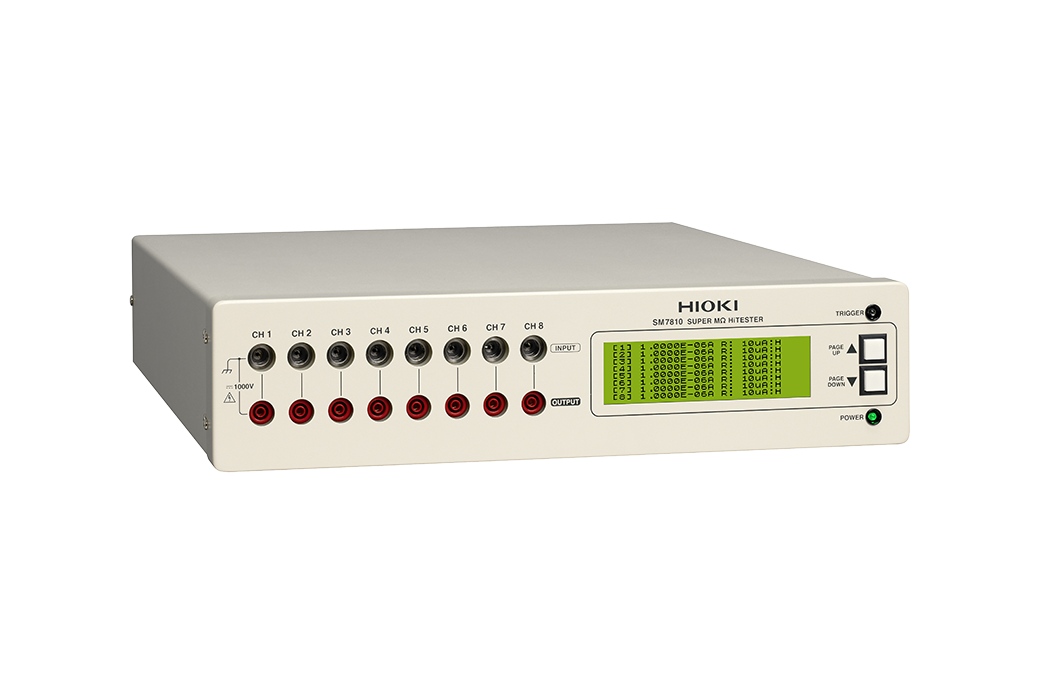

The Hioki SM7810 SUPER MΩ HiTESTER is a cutting-edge electrical measurement instrument designed for a wide range of applications. With its 8 channels for parallel and simultaneous measurement, this instrument provides unparalleled accuracy and efficiency.

Whether you’re working with HiTester instruments or other electrical measurement tools, the Hioki SM7810 is an essential addition to your toolkit. Its supply voltage from an external power source and measurement range from 1 pA to 1 mA and 1 × 10^2 Ω to 1 × 10^15 Ω make it an ideal choice for a variety of applications.

Hioki SM7810 Key Features

The Hioki SM7810 offers a range of advanced features, including FAST measurement speed of 6.8 ms, basic measurement accuracy of ±(2.0+ (0.5 µA / (Measured current value)) ) %, and testing voltage setting from 0.1 V to 1000.0 V.

8 channels for parallel and simultaneous measurement
Supply voltage from external power source
Measurement range from 1 pA to 1 mA and 1 × 10^2 Ω to 1 × 10^15 Ω
FAST measurement speed of 6.8 ms
Basic measurement accuracy of ±(2.0+ (0.5 µA / (Measured current value)) ) %
Testing voltage setting from 0.1 V to 1000.0 V
Contact check function to judge contact state
Trigger delay, averaging, and jig capacity open correction functions
GP-IB, RS-232C, and EXT I/O interfaces

Who Needs the Hioki SM7810?

The Hioki SM7810 is designed for a wide range of applications, including electrical safety standards and Hioki instruments. Whether you’re working in a laboratory, manufacturing facility, or field environment, this instrument provides the accuracy and efficiency you need to get the job done.

At Mohammad Mahdi Electronics, we understand the importance of reliable and accurate measurement instruments. That’s why we offer the Hioki SM7810 as part of our range of HiTester instruments.

Hioki SM7810 Applications

The Hioki SM7810 is suitable for a wide range of applications, including:

Electrical safety standards testing and verification
Hioki instruments calibration and verification
Electrical measurement and testing
Research and development applications

Why Buy Hioki SM7810 from mme-ae?

At mme-ae, we offer the Hioki SM7810 as part of our range of HiTester instruments. With our Hioki instruments expertise and electrical safety standards knowledge, we can provide you with the support and guidance you need to get the most out of your Hioki SM7810.

Whether you’re looking for a reliable and accurate measurement instrument or just need some advice on how to use your Hioki SM7810, we’re here to help. Contact us today to learn more about our HiTester instruments and Hioki instruments range.

Hioki SM7810 Specifications

Number of channels	8 channels (parallel and simultaneous measurement)
Applied voltage	Supply voltage from external power source (voltage input terminal on the rear panel)
Measurement range	Current: 1 pA to 1 mA, Ranges: 100 pA/ 1 nA/ 10 nA/ 100 nA/ 1 µA/ 10 µA/ 100 µA/ 1 mA Resistance: 1 × 10^2 Ω to 1 × 10^15 Ω
Measurement speed INDEX typical time	FAST: 6.8 ms, MED: 26.0 ms, SLOW: 100.0 ms, SLOW2: 320.0 ms
Basic measurement accuracy (1µA range, FAST)	Current accuracy: ±(2.0+ (0.5 µA / (Measured current value)) ) % Resistance accuracy: Current accuracy + Voltage generation accuracy of external power supply
Testing voltage setting	0.1 V to 1000.0 V (Resolution: 0.1 V)
Contact check	Judges the contact state by comparing the measured capacitance to a reference value
Other functions	Trigger delay, averaging, contact check, jig capacity open correction, Measured value comparison and judgment, jig resistance open correction functions
Interfaces	GP-IB, RS-232C, EXT I/O
Power supply	SM7810: AC 100 V/110 V, 50/60 Hz, 30 VA SM7810-20: AC 220 V, 50/60 Hz, 30 VA
Dimensions and mass	425 mm (16.73 in) W × 99 mm (3.90 in) H × 488 mm (19.21 in) D, 10.5 kg (370.4 oz)
Included accessories	Power cord ×1, Instruction manual ×1, Voltage input connector L2220 ×1, Spare fuse (built into inlet) ×1, Rubber feet ×4
