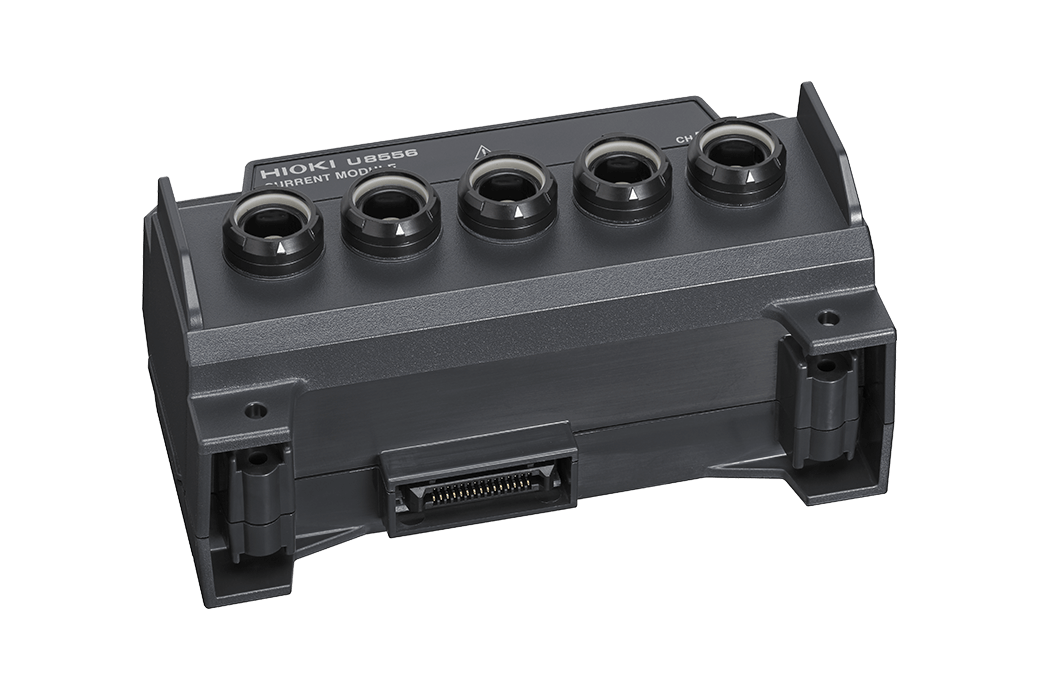

Hioki U8556 CURRENT MODULE — High-Precision Current Measurement | MME

The Hioki U8556 CURRENT MODULE is a high-precision current measurement device designed for use with various instruments, including the Memory HiLogger LR8450 and LR8450-01. With its wide operating temperature and humidity range, this module is suitable for use in various environments.

Whether you’re working in a laboratory or on a construction site, the Hioki U8556 CURRENT MODULE provides accurate and reliable current measurements. Its compact design and ease of use make it an ideal choice for a variety of applications.

Hioki U8556 CURRENT MODULE Key Features

The Hioki U8556 CURRENT MODULE offers a range of features that make it an essential tool for any professional or researcher. Some of its key features include:

• Connectable instruments: Memory HiLogger LR8450 (Designed for use with plug-in units only) and Memory HiLogger LR8450-01 (Wireless LAN model)
• Operating temperature and humidity: -10°C to 50°C, 80% RH or less (no condensation)
• Storage temperature and humidity: -20°C to 60°C, 80% RH or less (no condensation)
• Vibration resistance: JIS D 1601:1995 5.3(1), Class 1A (passenger vehicle) equivalent
• Number of input channels: 5 ch
• Measurement targets: Current (using an optional current sensor)
• Input format: Current sensor (Hioki PL14)
• Response time for instantaneous values: 150 μs
• Frequency characteristics for RMS values: DC to 5 kHz
• Response time for RMS values: 0.8 s
• Current measurement: 200 mA, 2 A (CT7812), 500 mA, 5 A (CT7116), 2 A, 20 A (CT7822), 5 A, 50 A (CT7126), 100 A (CT7131, CT7731), 50 A, 500 A (CT7136, CT7736), 200 A, 2000 A (CT7742), 50 A, 500 A, 5000 A (CT7044, CT7045, CT7046)

Who Needs the Hioki U8556?

The Hioki U8556 CURRENT MODULE is designed for use in a variety of applications, including:

Research and development laboratories

Construction sites

Manufacturing facilities

Power plants

Anywhere accurate and reliable current measurements are required

Hioki U8556 CURRENT MODULE Applications

The Hioki U8556 CURRENT MODULE is suitable for use in a variety of applications, including:

Why Buy Hioki U8556 CURRENT MODULE from MME?

Browse our electrical instruments. Read more in our electrical safety standards guide.

MME is a leading supplier of high-quality electrical instruments, including the Hioki U8556 CURRENT MODULE. With our extensive range of products and excellent customer service, you can trust MME to meet all your electrical measurement needs.

Whether you’re working in a laboratory or on a construction site, the Hioki U8556 CURRENT MODULE is an essential tool for any professional or researcher. With its high-precision current measurement capabilities and compact design, this module is suitable for use in a variety of applications.

Hioki U8556 CURRENT MODULE Specifications
