Description

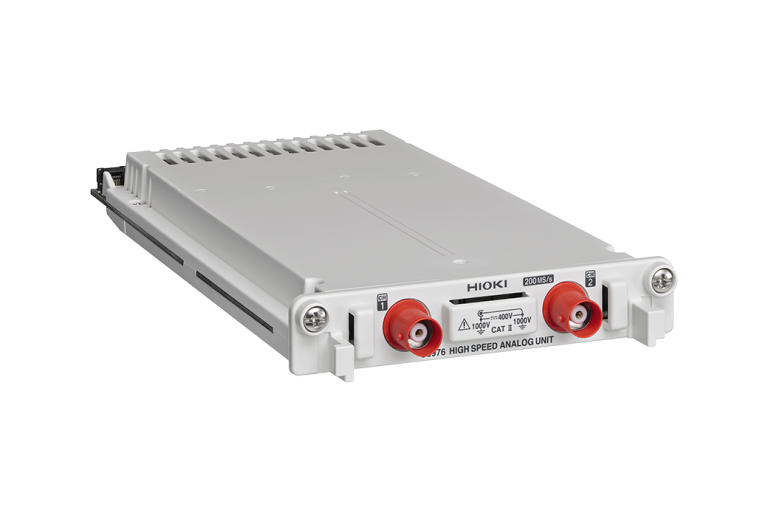

At MME, we offer the Hioki U8976 High Speed Analog Unit, designed for precise measurements in various applications. This unit features 2 channels for voltage measurement, ensuring accurate data collection.

With its isolated BNC terminal, the Hioki U8976 provides a high input impedance of 1 MΩ, making it ideal for sensitive measurements. The unit can withstand a max. rated voltage to earth of 1000 V AC or DC, ensuring reliable operation even in harsh environments.

Hioki U8976 Key Features

The Hioki U8976 boasts an impressive range of features, including:

12 measurement ranges, including 280 V rms for AC voltage
200 MS/s sampling rate for fast data collection
±0.5% f.s. measurement accuracy for precise results
DC to 30 MHz frequency characteristics for wideband measurements
Compact dimensions: 106 mm W × 19.8 mm H × 196.5 mm D, 280 g

Who Needs the Hioki U8976?

The Hioki U8976 is designed for various applications, including:

Research and development teams requiring high-speed measurements

Manufacturing facilities seeking precise voltage measurements

Test and measurement engineers needing a reliable and accurate analog unit

Hioki U8976 Applications

The Hioki U8976 can be used in a variety of applications, including:

Power supply testing

Motor control testing

Electrical safety testing

Why Buy Hioki U8976 from mme-ae?

At mme-ae, we offer the Hioki U8976 as part of our range of high-quality test and measurement equipment. With its precise measurements and reliable operation, this unit is ideal for various applications. Browse our selection of recorders and dataloggers and discover the benefits of working with Mohammad Mahdi Electronics.

For more information on the Hioki U8976, please refer to our measurement guides or visit our Hioki instruments page.

Hioki U8976 Specifications

Measurement functions	Number of channels: 2, for voltage measurement
Input terminals	Isolated BNC terminal (Input impedance: 1 MΩ, Input capacitance: 22 pF) Max. rated voltage to earth: 1000 V AC or DC (with input isolated from the unit, the maximum voltage that can be applied between input channel and chassis and between input channels without damage)
Measurement range	100, 200, 400 mV f.s., 1, 2, 4, 10, 20, 40, 100, 200, 400 V f.s., 12 ranges (AC voltage for possible measurement/display using the memory function: 280 V rms) Low-pass filter: 5/500/5 k/1 MHz
Measurement resolution	1/1600 of measurement range (using 12-bit A/D conversion)
Highest sampling rate	200 MS/s (2 channel simultaneous sampling)
Measurement accuracy	±0.5% f.s. (with filter 5 Hz, zero position accuracy included)
Frequency characteristics	DC to 30 MHz -3 dB, with AC coupling: 7 Hz to 30 MHz -3dB
Input coupling	AC/DC/GND
Max. allowable input	400 V DC (when direct input), 1000 V DC (when using the 9665)
Dimensions and mass	106 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D, 280 g (9.9 oz)
Included accessories	None
