HIOKI INSULATION TESTER IR4053

HIOKI INSULATION TESTER IR4053 Key Features:

  • Built-in comparator function
  • Safely and accurately measure PV insulation resistance even while generating solar power
  • Built-in 1000 VDC voltage measurement for open voltage tests of PV systems that support 1000 V
  • Drop proof design withstands drop onto concrete from a height of 1 meter
  • Five ranges (50/125/250/500/1000V) built in for normal insulation resistance measurement
(1 customer review)
SKU: 1109

Call for Price

We are not Supporting COD Payments Terms Outside UAE

11 People watching this product now!

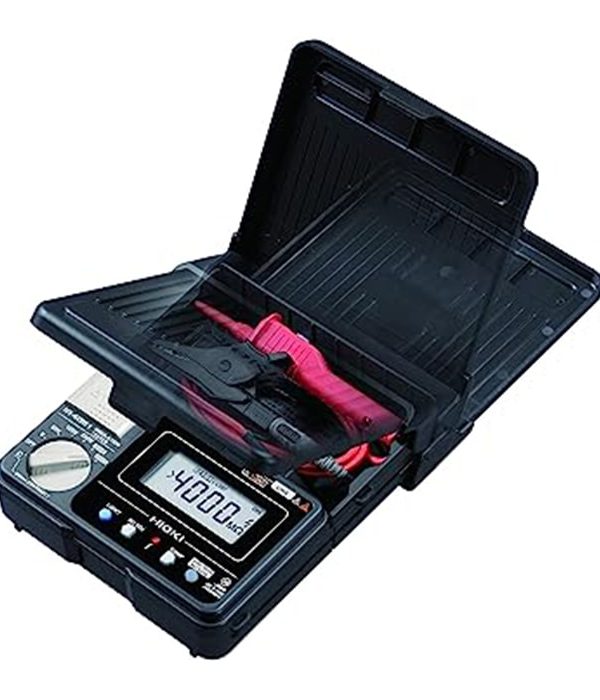

HIOKI INSULATION TESTER IR4053

The Hioki IR4053 is a digital insulation resistance tester for photovoltaic generation systems. Measure insulation resistance accurate and safely without being affected by generated solar power and identify the value in just 4 seconds.



HIOKI INSULATION TESTER IR4053 Specifications

  • Effective maximum indicated value(250 V DC): 500 MΩ / Accuracy: ±4% rdg
  • Lower limit resistance(250 V DC): 0.25 MΩ
  • Overload protection(250 V DC): 600 V AC (10 s)
  • DC voltage range: 4.2 V to 1000 V , 4 ranges / Accuracy: ±1.3% rdg
  • AC voltage range: 420 V , 2 ranges / Accuracy: ±2.3% rdg
  • Power supply: AA alkaline batteries (LR6) ×4
  • Dimensions and mass: 159 mm (6.26 in) W × 177 mm H (6.97 in) H × 53 mm (2.09 in) D, Approx. 600 g
