Megger MIT 200 Series- INSULATION AND CONTINUITY TESTER
2 Comments
Discover precise insulation testing with the Megger MIT 200 Series, perfect for ensuring electrical safety in your applications.
Terms of sending goods ›
AED 2,300 (excl.VAT)
Order Via phone number
In stockDelivers in 2-3 business days.
Description

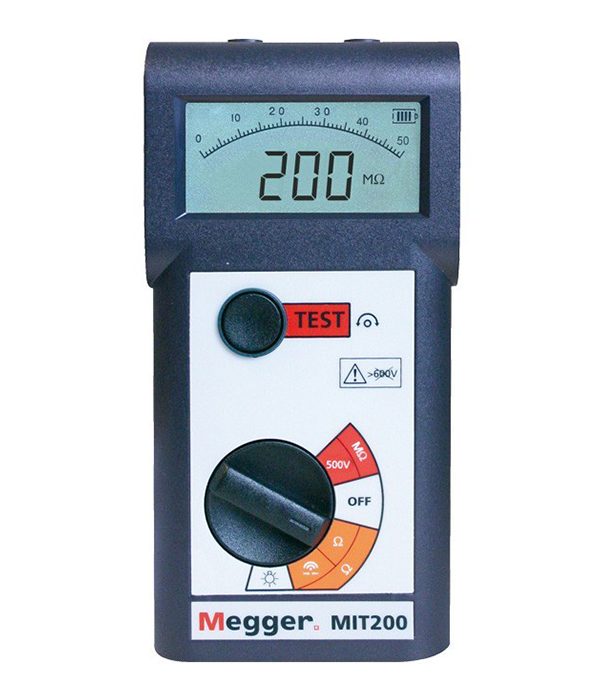

Megger MIT 200 Series- INSULATION AND CONTINUITY TESTER
The MIT200 is one of the most compact insulation testers available on the market today. With options of one, two and three test voltage instruments, the MIT200 series offers a surprising range of safety and operational features.
The display offers a combination of digital readout and analogue display, using Megger’s patented DART technology, so includes the benefits of an LCD display such as clear, accurate measurement and precise readings, with an analogue pointer response for evaluating circuit charge and discharge characteristics.
The instrument housing is in tough ABS, designed to withstand the rigours of hard day-to-day use, and is small enough to drop into your pocket or toolbag. Battery requirements are 6 AA batteries of either standard alkaline or nickel metal hydride (NiMH) rechargeable type. A low battery warning indicator gives advanced warning of exhausted batteries.
Megger MIT 200 Series- INSULATION AND CONTINUITY TESTER Specifications:
- Accuracy:25 V to 450 V a.c./d.c. ± 1% ± 1 digit 450 V to 600 V a.c. ± 2% ± 1 digit
- Test inhibit: If more than 50 V is detected, testing will be inhibited.
- Auto power down operates after 10 minutes if left in standby mode.
- Operating temperature range and humidity: -10 °C to +55 °C 93 % R.H. at +40 °C max.
- Storage temperature range and humidity: -25 °C to +65 °C.
- IP rating: IP40.
- Fuse: 500 mA (F) 600 V, 32 x 6 mm Ceramic HBC 50 kA minimum.
- The display shows if the fuse is ruptured.
- Over-voltage safety: category meets the requirements of IEC61010- 1 Cat III 600 V phase to earth.
- Automatic discharge: After an insulation test the item under test will be discharged automatically. Any voltage present will be indicated on the display so that the discharge can be monitored.
- Power supply : Battery 6 x 1,5 V cells IEC LR6 type (AA alkaline). Rechargeable NiMH cells may be used. Battery condition is constantly shown on the display as a four-section bargraph.
- Battery life: 3000 consecutive tests (5 seconds per test) on any test using 2 Ah batteries.
- Weight: All units: 530 gms ± 5 %.
- Dimensions: All units: 195 x 98 x 40 mm.
- EMC: In accordance with IEC61326-.
Datasheet
Datasheet
Specifications
Specifications
| Specifications | |
|---|---|
| Insulation Range | |
| Nominal Test Voltage | 1000 V, 500 V, 250 V (DC) |
| Measurement Range | 10 kΩ – 1000 MΩ on all ranges |
| Terminal Voltage on Open Circuit (DC) | −0% +25% of rated voltage |
| Test Current on Load | >1 mA at minimum pass values of insulation as specified in BS 7671, HD 384, IEC 364, and VDE 0413 part 1 |
| Continuity Range | |
| Measuring Range | 0.01 Ω – 100.0 Ω (0–50 Ω on analogue scale) |
| Open Circuit Voltage | 5 V ±1 V |
| Short Circuit Current | 205 mA +10 mA −5 mA (>18 mA for 10–100 Ω) |
| Accuracy (at 20°C) | ±0.01 Ω to 9.99 Ω: ±3% ±2 digits 10.0 Ω to 99.9 Ω: ±5% ±2 digits |
| Zero Offset Adjust | 0 to 9.99 Ω |
| Continuity Buzzer | Operates at < 2 Ω |
| Default Voltmeter | |
| Operation | When >25 V AC or DC is applied, the display operates as a voltmeter |
| Range | 25 V to 600 V @ 50/60 Hz & DC |
| Accuracy | 25 V to 450 V AC/DC: ±1% ±1 digit 450 V to 600 V AC: ±2% ±1 digit |
| Safety & Protection | |
| Test Inhibit | Testing is inhibited if >50 V is detected |
| Automatic Discharge | After an insulation test, the item under test is automatically discharged. Any voltage present is indicated on the display. |
| Fuse | 500 mA (F) 600 V, 32 × 6 mm Ceramic HBC, 50 kA minimum. Display shows if fuse is ruptured. |
| Over-voltage Category | IEC61010-1 CAT III 600 V phase to earth |
| IP Rating | IP40 |
| Power & Battery | |
| Power Supply | 6 × 1.5 V cells IEC LR6 (AA alkaline). Rechargeable NiMH cells may be used. |
| Battery Indicator | Displayed as a four-section bargraph |
| Battery Life | 3000 consecutive tests (5 seconds per test) with 2 Ah batteries |
| Environmental Conditions | |
| Operating Temperature / Humidity | −10 °C to +55 °C; 93% RH at +40 °C max |
| Storage Temperature / Humidity | −25 °C to +65 °C |
| EMC Compliance | IEC61326-1 |
| Physical Characteristics | |
| Dimensions | 195 × 98 × 40 mm |
| Weight | 530 g ±5% |
| Additional Features | |
| Auto Power Down | Activates after 10 minutes in standby mode |
