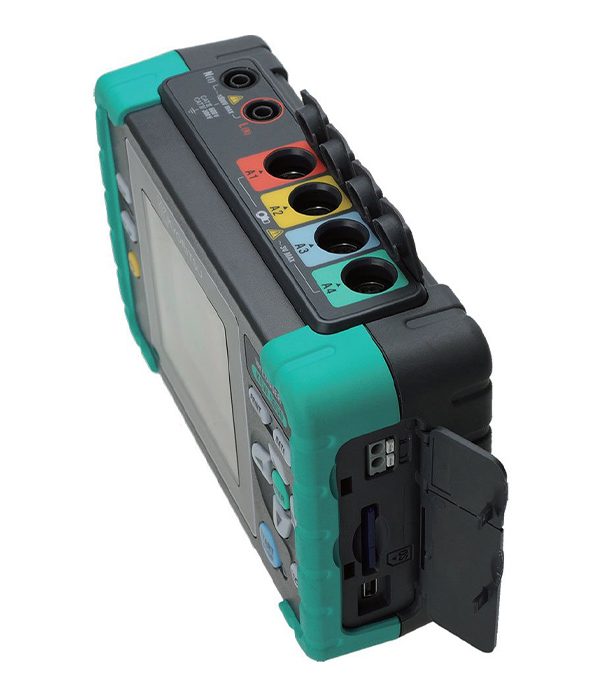

Kyoritsu KEW 5050 Ior Logger

Kyoritsu KEW 5050 Ior Logger

Designed to detect electrical leakages in various wiring systems, this advanced leakage current logger also measures and logs Ior up to 4 parameters with a measured value less susceptible to harmonics.

A data logger that is already included inside the  Kyoritsu KEW 5050 can store up to 5000 sets of measurement data. Using the accompanying software, users can download the data to a PC and analyze and graph it for additional investigation. For precise time stamping of the recorded data, the device additionally has a real-time clock.

The KEW 5050 features a sizable, backlit LCD display that shows all measured values simultaneously and is designed for simple usage. Additionally, it offers a straightforward user interface with just one button for beginning and ending measurements.

kyoritsu ior logger kew 5050 Features:

• Provides simultaneous measurements and logs up to 4 channels
• Supports various wiring systems (Single-phase 2&3-wire, Three-phase 3&4-wire)
• World’s fastest 200ms interval for leakage current measurement
• Offers both traditional leakage/load current measurements
• Large graphic display and magnet on the back case to attach it to metal enclosures

To get more information contact us through mme.

Kyoritsu KEW 5050 Ior Logger specifications:

• Recording Interval: 200/400 ms/1/5/15/30 s/1/5/15/30 m/1/2 hours
• Ior Range: 10/100/1000 mA/10 A/AUTO
• Voltage Range: 1000 V
• Phase Angle Display Range: 0 to ±180° (regarding the phase of reference voltage as 0°)
• Frequency Meter Range: 40 to 70 Hz
• Power Source: 6 x 1.5 AA LR6 (Battery life approx. 11h)
• Applicable Standards: EC61010-1 CATIV 300V , CATIII 600V Pollution degree 2
• IEC61010-2-030 , IEC61010-031 , IEC61326
