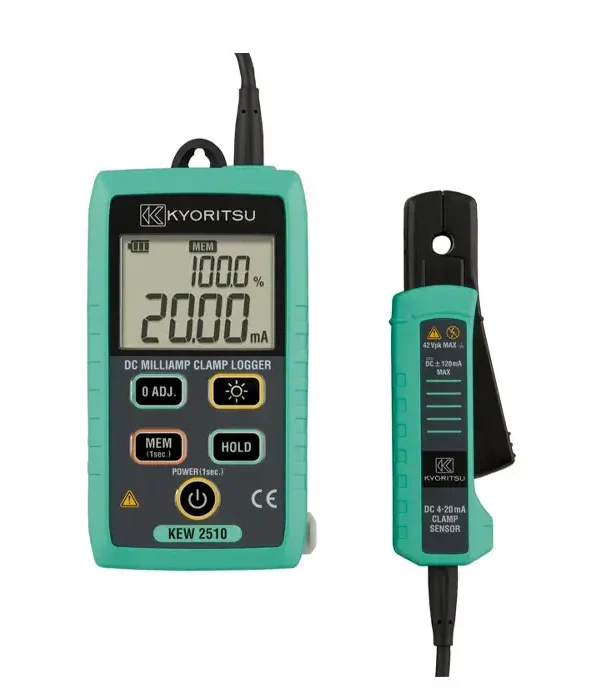

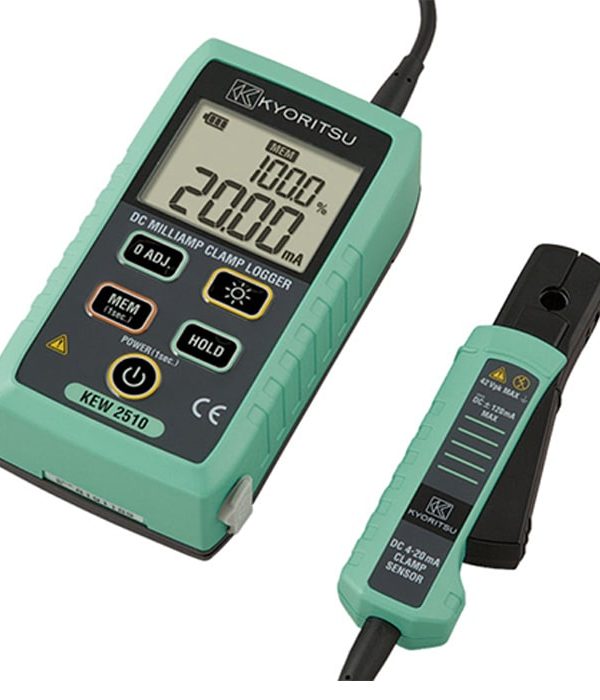

Kyoritsu KEW 2510 DC Milliamp Clamp Logger

Kyoritsu DC Milliamp Clamp Logger KEW 2510

The Kyoritsu KEW 2510 DC Milliamp Clamp Logger is a specialized instrument designed for measuring and logging DC milliamp currents. It’s commonly used in industrial and process control applications where monitoring and recording low-level current signals are essential.

DC Milliamp Clamp Logger, 4:20 mA, 192,000 data, 0.2%accuracy, 6mm clamp jaw • Measures 4 to 20 mA instrumentation and process signals without breaking the loop
• Memory function stores up to 192000 data useful for monitoring the signals over time and fault finding
• Transfer data to PC via Bluetooth

Kyoritsu DC Milliamp Clamp Logger KEW 2510 Key features :

•  Measures 4 to 20 mA instrumentation and process signals without breaking the loop
• The memory function stores up to 192000 data useful for monitoring the signals over time and fault finding
•  Transfer data to PC via Bluetooth
•  Top-class measurement with 0.2% accuracy
•  ∅6mm clamp jaw easy to use in tight places
•  LED light for illuminating the measurement spot
• Analog output terminal to allow the connection to a recorder or a digital multimeter

Kyoritsu 2510 Specifications :

• AC A: 20/100mA(Auto-ranging)
• Conductor size: φ6mm max.
• Analog output: Recorder; DC1000mV against DC100mA
• Operating temperature & humidity range : -10 – +50℃ <85%
• Storage temperature & humidity range : -20 – +60℃ <85%
• Power source : R6/LR6(AA) (1.5V) x4 (Alkaline LR6 is recommended.) ,External supply (AC adapter MODEL8320)
• Communication interface Bluetooth: Ver2.1+EDR Class2
• Optional Accessories 7256(Output cord)
