Kyoritsu AC/DC Digital Clamp Meter KEW 2009R

kyoritsu ac/dc clamp meter KEW 2009R

The Kyoritsu KEW2009R AC/DC Digital Clamp Meter is a versatile and precise instrument designed for professionals who require reliable and accurate measurements in complex electrical environments. This True RMS reading tool is essential for obtaining accurate measurements of distorted and non-sinusoidal waveforms, often found in systems using thyristors. It offers a robust capability to measure both AC and DC currents up to 2000A, providing flexibility for a wide range of applications.

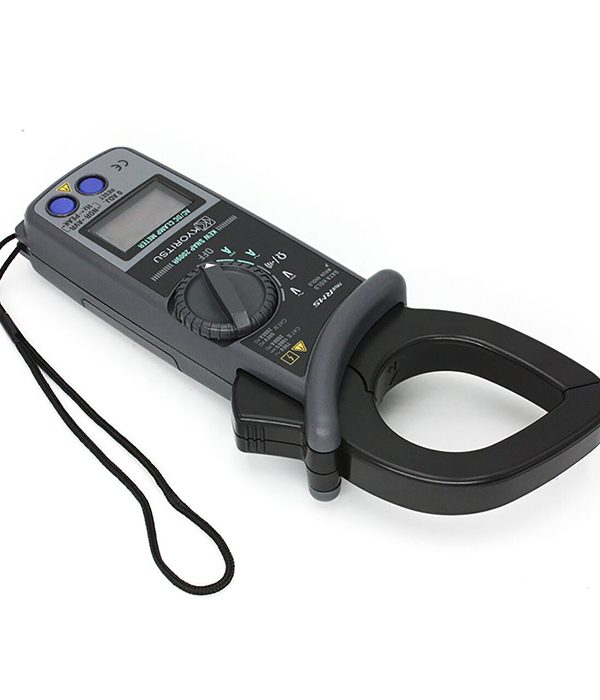

One of the standout features of the Kyoritsu 2009R is its uniquely designed teardrop-shaped jaws. This innovative design facilitates ease of use in crowded cable areas and other tight spaces where traditional clamp meters might struggle. This feature is particularly useful for electricians and technicians working in industrial settings or on large installations.

The meter also comes equipped with a data hold function, which is invaluable in environments with poor lighting or where the display might be difficult to read directly. This function freezes the measurement on the screen, allowing for easy recording or later viewing. For further convenience, there is an output terminal for direct connection to recorders, enabling continuous monitoring or recording of measurements over time.

In terms of precision, the Kyoritsu 2009R boasts a minimum resolution of 0.1A, allowing for very fine measurements and improved accuracy in readings. The ability to take True RMS readings of AC current or voltage ensures that measurements are reliable and reflective of actual operating conditions, regardless of waveform distortions.

Kyoritsu kyoritsu ac dc clamp meter KEW 2009R specification:

• AC  A: 400.0/2000A
  ±1.3%rdg±3dgt (0 – 400.0A, 150 – 1700A) (45 – 66Hz)
  ±2.0%rdg±5dgt (0 – 400.0A, 150 – 1700A) (20Hz – 1kHz)
  ±2.3%rdg±3dgt (1701 – 2000A) (45 – 66Hz)
• DC A: 400.0/2000A±1.3%rdg±2dgt
• AC V: 40.00/400.0/750V
  ±1.0%rdg±3dgt (45 – 66Hz)
  ±1.5%rdg±5dgt (20Hz – 1kHz)
• DC V: 40.00/400.0/1000V±1.0%rdg±2dgt
• CONDUCTOR SIZE: Ø55mm max.
• Ω: 400.0/4000Ω ±1.5%rdg±2dgt
  (Electronic protection (no fuse) up to 600V)
• HZ: 10.0 – 4000Hz±1.5%rdg±5dgt
  (Input sensitivityCurrent: more than 40AVoltage: more than 10V)
• OUTPUT: Recorder :
  DC400mV against AC/DC400.0A
  DC200mV against AC/DC2000A
