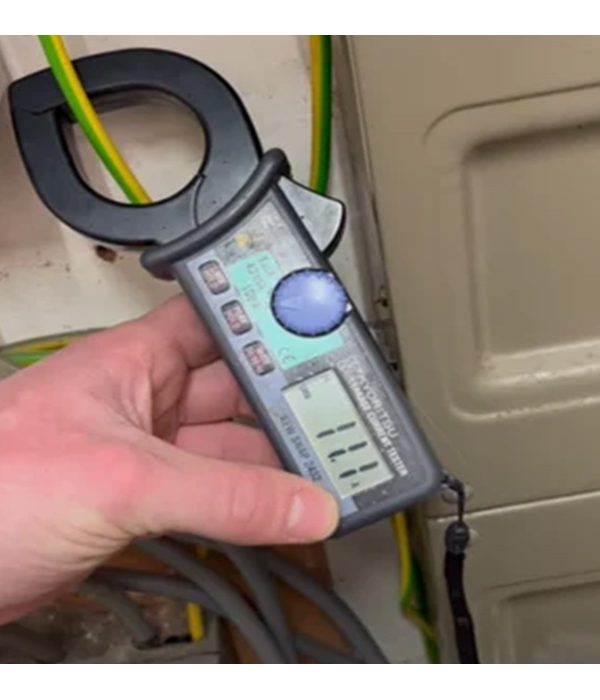

Kyoritsu 2433R Leakage Clamp Meter

Kyoritsu Leakage Clamp Meters MODEL 2433R

• Frequency selector switch to eliminate the effect of harmonics
• Measures from 0.01mA to 199.9A AC
• Tear drop shaped jaws for easy use in tight places and crowded cable areas
• Maximum conductor size is 24mm in diameter
• Data hold function to allow for easy readings in dimly illuminated or hard-to-reach locations
• Rotary switch for easy power-on and range selection
• Auto power-off function to conserve battery power

Kyoritsu Leakage Clamp Meters MODEL 2433R specifications:

• AC A (50/60Hz):40/400mA/400A
  ±1%rdg±5dgt (40/400mA)
  ±1%rdg±5dgt (0 – 300A)
  ±2%rdg (300.1 – 399.9A)
• AC A (WIDE): 40/400mA/400A
  ±2.5%rdg±10dgt [20Hz – 1kHz] (40/400mA)
  ±2.5%rdg±10dgt [40Hz – 1kHz] (0 – 300A)
  ±5%rdg [40Hz – 1kHz] (300.1 – 399.9A)
• Maximum circuit voltage: 600V AC/DC (between line/neutral)
  300V AC/DC (against earth)
• Effect of External Stray Magnetic Field: 10mA AC approx. in proximity to a 15mm-dia
  conductor carrying 100A AC
• Applicable standards: IEC 61010-1 CAT III 300V Pollution Degree 2
  IEC 61010-2-032
• Response Time: Approx. 2 seconds
