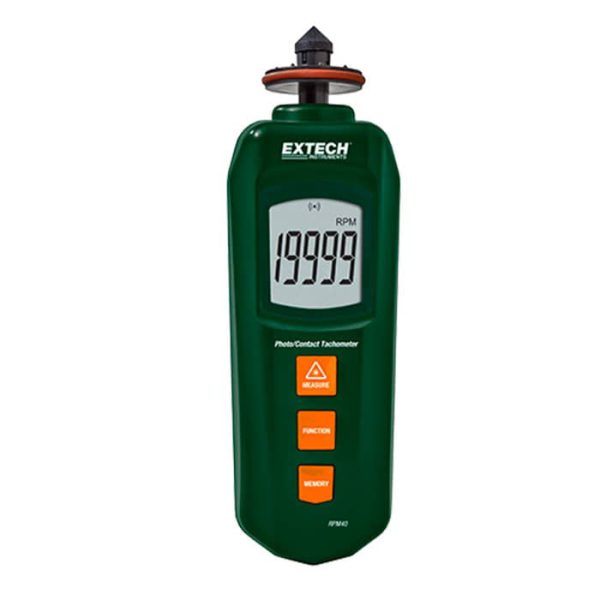

EXTECH RPM40 Combination Contact,Laser Photo Tachometer

EXTECH RPM40 Combination Contact,Laser Photo Tachometer

The Extech RPM40 Laser Photo/Contact Pocket Tachometer is a versatile and important instrument for precision measurement. This pocket-sized instrument quickly and precisely monitors both RPM (Rotations Per Minute) and Linear Surface Speed. The RPM40 has you covered whether you require close-up readings or safer, non-contact measures.

The Extech RPM40 has two measuring modes to choose from. When you need up-close and direct data, the contact wheel can capture rotation speeds up to an astonishing 19,999 RPM. Alternatively, use the laser mode to take non-contact measures up to 4.9 feet (1.5 meters) away, assuring safety and convenience in difficult-to-reach regions.

The RPM40’s big LCD screen can display up to 5 digits. Its intelligent display direction reversal, depending on the measurement method, is what sets it distinct. The display adjusts to deliver the most intuitive reading experience, whether in laser or touch mode.

When in laser mode, the RPM40 measures rotation speed using an infrared laser with a maximum measurement range of 4.9 feet (1.5 Meter s). A piece of the provided reflective tape can be placed on the object being measured to improve the accuracy of your measurements.

The Extech RPM40’s capacity to precisely measure the rotation of numerous items such as flywheels, pumps, conveyors, fans, motors, and gears places it in a wide range of industries and duties, from maintenance and repair to quality control and beyond.

EXTECH RPM40 Tachometer Specifications:

• Range (rpm):5 to 99,999 rpm,0.5 to 19,999 rpm
• Surface Speed:2.0 to 78,740 inches/min,0.2 to 6560 ft/min,0.05 to 1999.9 m/min
• Accuracy:±(0.1% rdg +1 digit), ±(0.1% rdg +1 digit)
• Sampling Time:1 sec (> 60 rpm), 1sec (> 6 rpm)
• Resolution:0.1rpm ( < 1000 rpm); 1rpm (> 1000 rpm)
• Dimensions / Weight:6.2 x 2.0 x 1.3″ (160 x 50 x 33 mm) / 6.4oz (182g)
