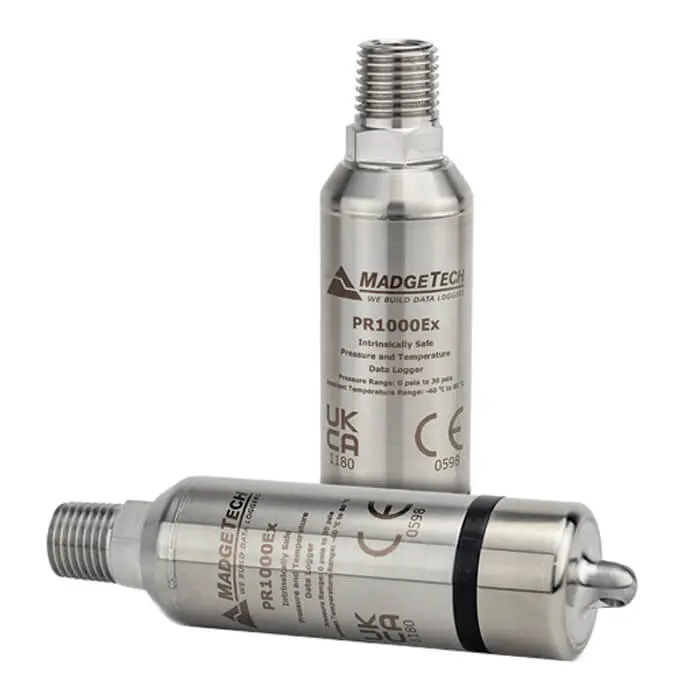

MadgeTech PR1000Ex Pressure and Temperature Data Logger

MadgeTech PR1000Ex Data Logger

The MadgeTech PR1000Ex is a certified transient temperature, pressure, and pressure data logger for hazardous areas (ATEX, IECEx).

• Electrical Protection Concepts: IEC: 60079-11 Ex ia – Ex ic, Intrinsic Safety Zones 0-2
• Equipment Protection Level: Ga – Gc, Zones 0-2
• Gas Groups: IIC
• Temperature Class: T4

Designed to fit in the palm of your hand, the PR1000Ex is just 3.6 inches tall and features the popular ¼-inch NPT pressure port for easy installation. The PR1000Ex can store over 1.3 million readings with an internal temperature sensor that provides measurements from -40°C to +80°C (-40°F to +176°F) with accuracy ±2.0°C. To suit most applications, the PR1000Ex will be available in 10 different pressure ranges from 30 to 5000 PSIA/PSIG.

The PR1000Ex is compatible with the latest MadgeTech 4 software, making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data are provided for analysis and can be viewed as customizable engineering units.

similar products are MadgeTech PR1000 and MadgeTech AVS140-6 . For more information please contact us.

MadgeTech PR1000Ex Features

• ATEX Approved
• Compact Design
• ¼ Inch NPT Fitting
• Available in 10 Measurement Ranges

MadgeTech PR1000Ex Specifications:

• Memory: 1,396,736 readings
• Battery Life: 1 year
• Material: 316 Stainless Steel/Radel
• Dimensions: 3.6 in x 0.97 in dia. (91.3 mm x 24.6 mm dia.)
• Temperature

• Temperature Sensor Internal semiconductor
• Temperature Range -40 °C to +80 °C (-40 °F to +176 °F)

• Pressure

• Pressure Sensor Semiconductor (strain gauge)
• Pressure Range 0-30, 0-100, 0-300, 0-500 PSIA/PSIG, 0-1000, 0-5000 PSIA
