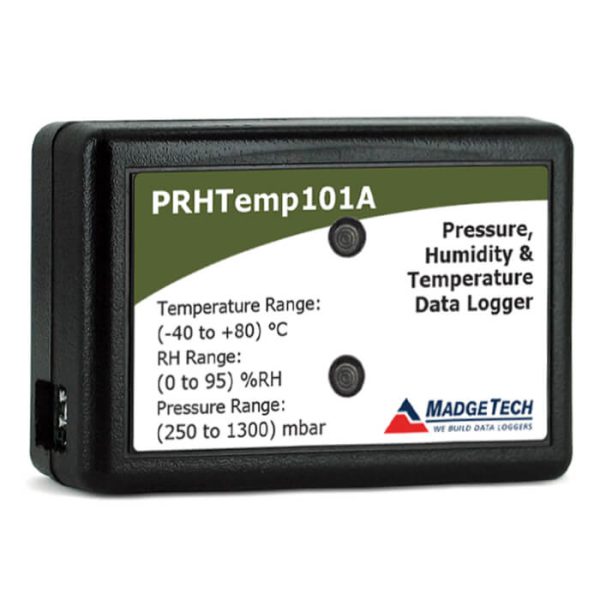

MadgeTech PRHTEMP101A Data Logger

MadgeTech PRHTEMP101A Pressure, Humidity, and Temperature Data Logger

PRHTemp101A is a pressure, humidity, and temperature data logger. It’s compact design and 10-year lifespan make it ideal for long-term deployment. The PRHTemp101A has multiple start/stop functions and can even be programmed to start recording 18 months in advance. It also features user-specified high/low alarm limits (pressure channel only) and the ability to store up to 523,776 readings.

The PRHTemp101A is compatible with the latest MadgeTech 4 software, making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data are provided for analysis and can be viewed as customizable engineering units.

MadgeTech PRHTEMP101A Features

• Compact Size
• Configurable Alarms
• Memory Capacity of 500,000+ Readings

MadgeTech PRHTEMP101A Specifications:

• Memory: 523,776 readings
• Battery Life: 10 years typical (at a 15-minute reading rate)
• Material: Polycarbonate
• Dimensions: 1.4 in x 2.1 in x 0.6 in (35 mm x 54 mm x 15 mm)
• Temperature

• Internal Channel Temperature Sensor Resistance Temperature Detector (RTD)
• Internal Channel Temperature Range -40 °C to +80 °C (-40 °F to +176 °F)

• Humidity

• Humidity Sensor Capacitive Polymer
• Humidity Range 0 %RH to 95 %RH

• Pressure

• Pressure Sensor Piezoresistive
• Pressure Range 250 mbar to 1300 mbar
