MarMonix MCA 212 Professional Clamp Meter | 1200A AC/DC, Voltage, Resistance, Capacitance & Temperature
(No Reviews)
The MarMonix MCA 212 Clamp Meter measures AC/DC current up to 1200A, voltage, resistance, capacitance, frequency, and temperature with True RMS accuracy. Featuring a 6000-count backlit display, rugged design, and CAT IV 600V safety rating, it’s the perfect tool for industrial, commercial, and residential testing in UAE and Dubai.
Terms of sending goods ›
Order Via phone number
In stockDelivers in 2-3 business days.
Description

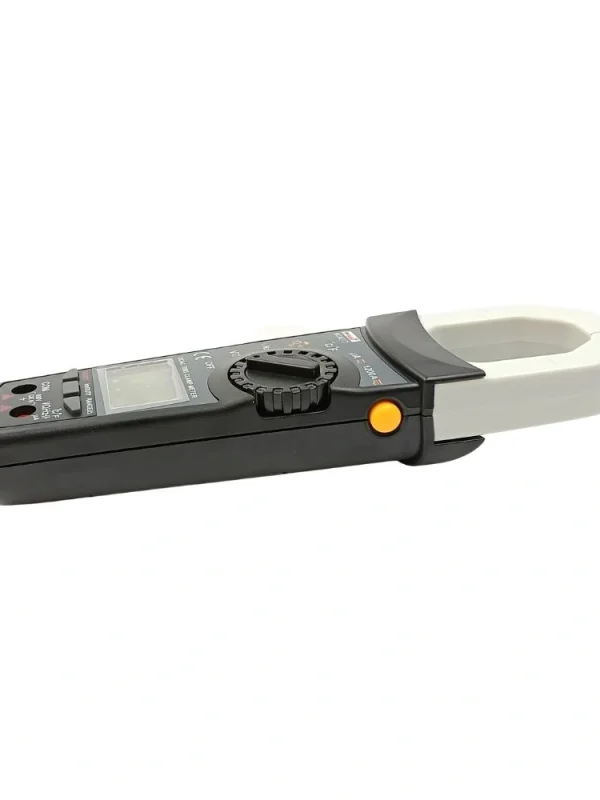

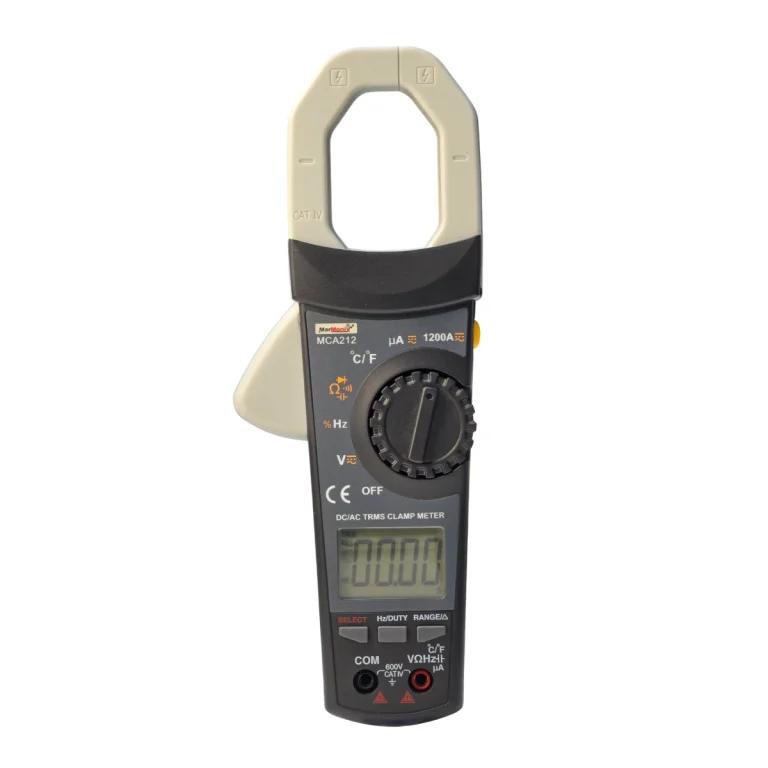

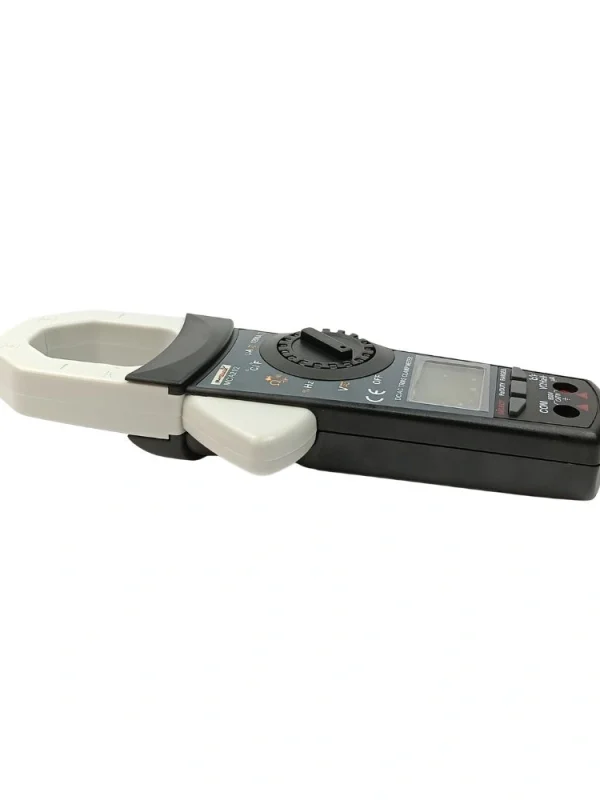

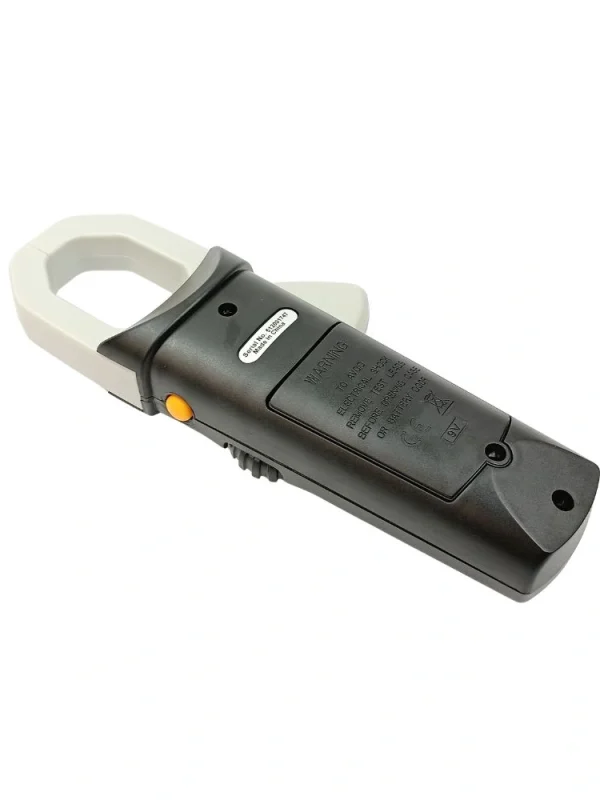

MarMonix MCA 212 Clamp Meter overview
The MarMonix MCA 212 Clamp Meter is a versatile, high-performance testing device designed for industrial, commercial, and residential applications. With a 6000-count LCD display, True RMS accuracy, and the ability to measure AC/DC current up to 1200A, it ensures precision and safety for electricians, engineers, and technicians.
Its rugged design (240 × 90 × 45 mm), bright backlight for use in dark environments, and auto power-off function make it reliable for extended fieldwork. The MCA 212 is certified to CAT IV 600V, guaranteeing maximum safety in high-voltage environments.
As the official MarMonix distributor in UAE and Dubai (MME), we provide this clamp meter with full warranty and competitive pricing.
MarMonix MCA 212 Key Features
The MCA 212 Clamp Meter offers advanced measurement functions and safety:
-
6000-count LCD display with backlight for clear readings
-
True RMS measurement for accurate AC values
-
AC/DC current up to 1200A
-
Voltage testing: up to 1000V DC / 750V AC
-
Resistance range: up to 60 MΩ with high accuracy
-
Capacitance testing: up to 9.999 mF
-
Frequency range: up to 9.999 MHz
-
Temperature measurement: –20 °C to +1000 °C (–4 °F to +1832 °F)
-
Additional functions: duty cycle, data hold, relative measurement, MAX/MIN
-
Safety certified CAT IV 600V
-
Durable and portable design with auto power-off
MarMonix MCA 212 Clamp Meter Applications
The MarMonix MCA 212 Clamp Meter is ideal for:
-
Industrial power systems: high-current testing up to 1200A
-
Residential & commercial electricians: fast voltage, resistance, and continuity checks
-
Automotive diagnostics: alternator and battery current flow testing
-
Educational labs: training students with professional-grade instruments
-
Field technicians: rugged, backlit design for reliable outdoor or dark-site work
What’s in the MarMonix MCA 212 Clamp Meter Box
-
MarMonix MCA 212 Clamp Meter (Main Unit)
-

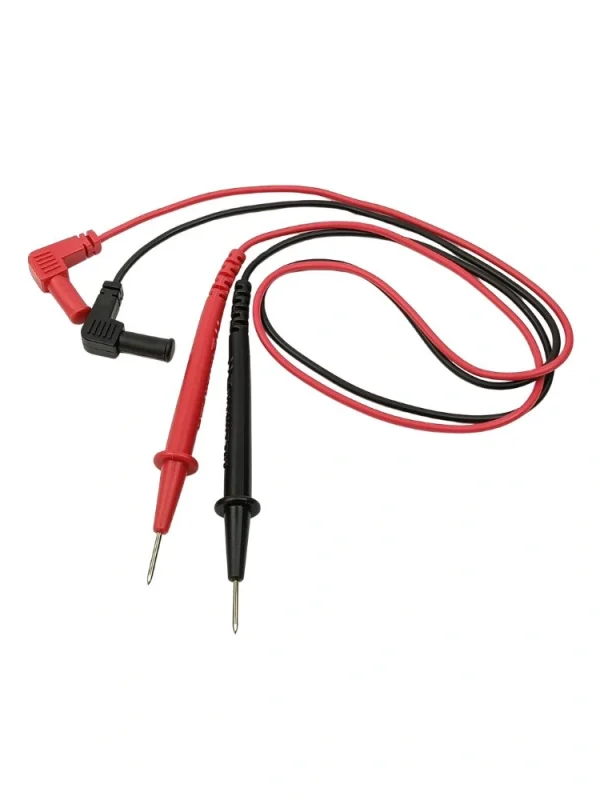

Test Leads
-

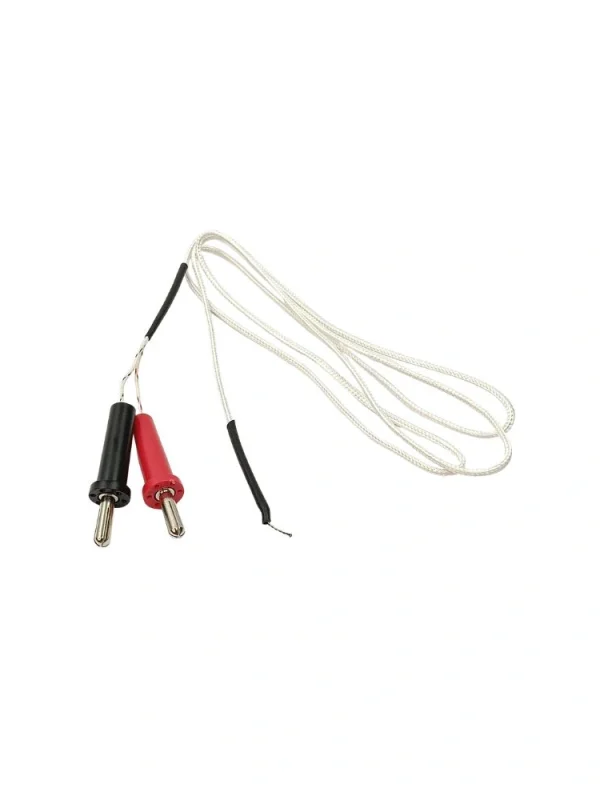

Temperature Probe
-
2 × AA Batteries
-
User Manual
-
Soft Carrying Case
-
Warranty Card
-
Certificate of Conformity
Specifications
Specifications
| Function | Range | Accuracy |
|---|---|---|
| DC Voltage | 600 mV / 6 V / 60 V / 600 V / 1000 V | ±(0.5%+3) |
| AC Voltage | 600 mV / 6 V / 60 V / 600 V / 750 V | ±(1.0%+3) |
| DC Current | 600 μA / 6000 μA | ±(1.2%+3) |
| AC Current | 600 μA / 1000 A / 1200 A | ±(2.0%+30) |
| Resistance | 600 Ω – 60 MΩ | ±(0.5%+3 to 1.5%+3) |
| Capacitance | 9.999 nF – 9.999 mF | ±(2.0%+5 to 5.0%+20) |
| Frequency | 99.99 Hz – 9.999 MHz | ±(0.1%+2) |
| Duty Cycle | 1% – 99% | ±(0.1%+2) |
| Temperature | –20 °C to +1000 °C | ±(2.5%+5) |
| Diode/Continuity | Yes | |
| Display | 6000 counts LCD with backlight | |
| Power Supply | Battery operated (2 × AA) | |
| Dimensions | 240 × 90 × 45 mm | |
| Safety Rating | CAT IV 600 V | |
