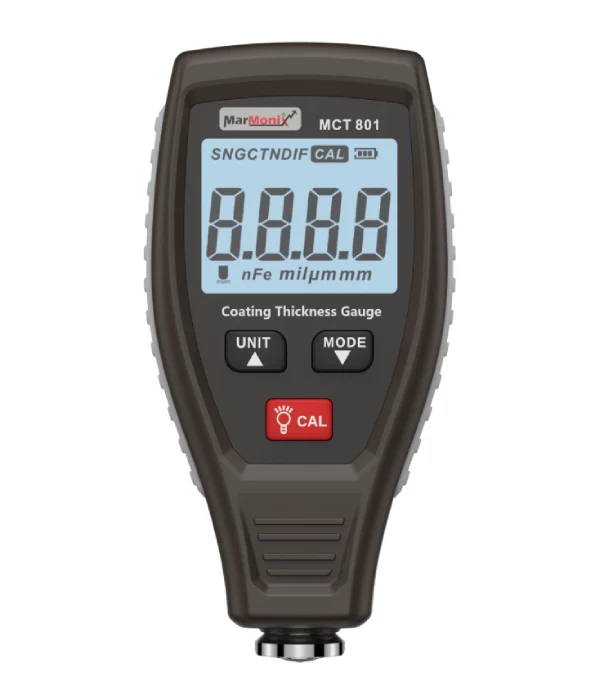

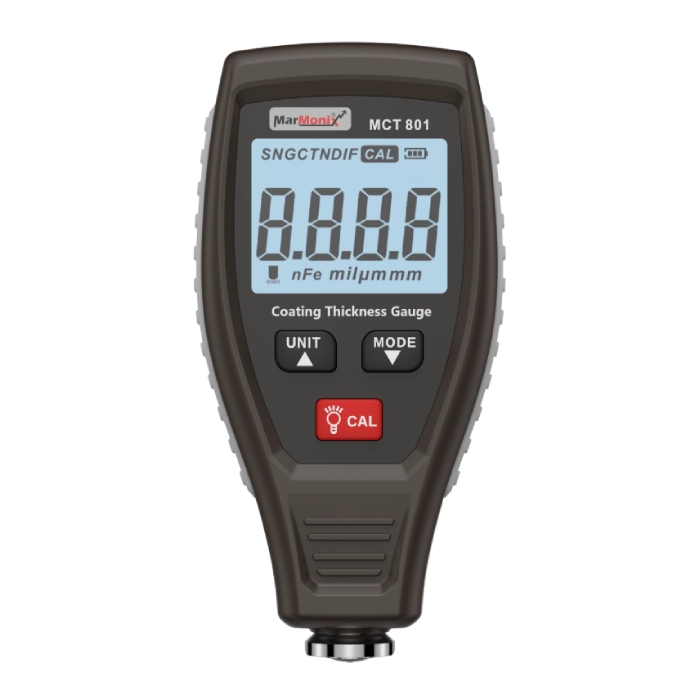

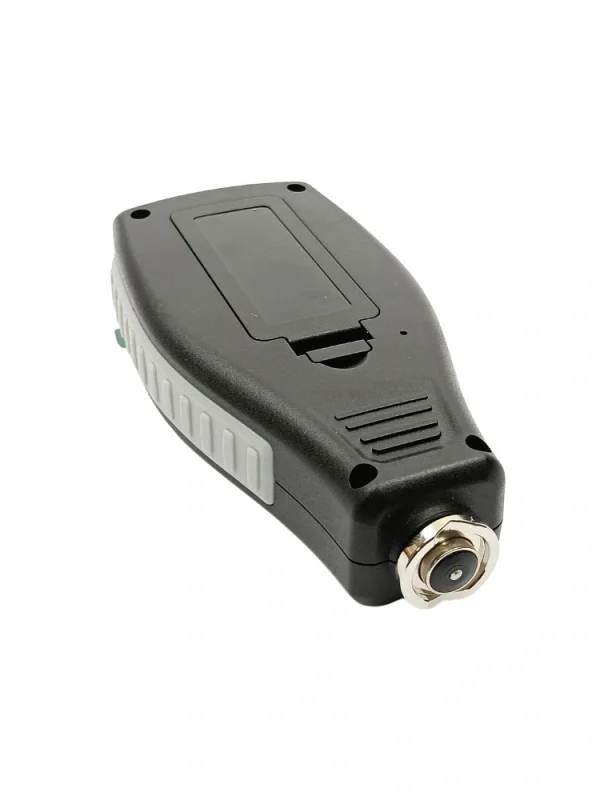

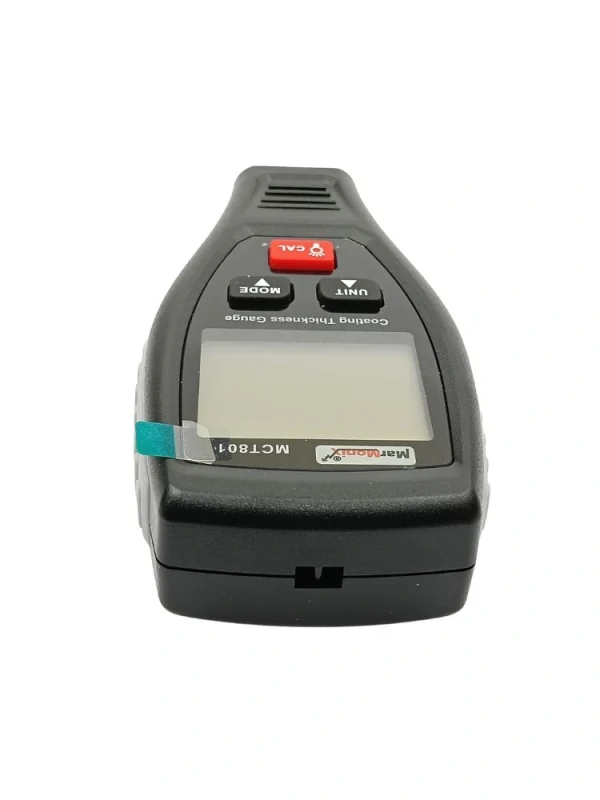

MarMonix MCT 801 Coating Thickness Gauge – High Accuracy, 0–1800 µm Range
(No Reviews)
The MarMonix MCT 801 Coating Thickness Gauge measures 0–1800 µm (70.8 mil / 1.8 mm) on magnetic and non-magnetic substrates with automatic detection, multiple modes, and calibration functions.
Terms of sending goods ›
Order Via phone number
In stockDelivers in 2-3 business days.
Description
MarMonix MCT 801 Coating Thickness Gauge overview
The MarMonix MCT 801 Coating Thickness Gauge is a compact, precise, and versatile instrument built for automotive inspection, industrial coatings, and manufacturing quality control. It automatically detects whether the surface is magnetic or non-magnetic, ensuring error-free operation across different applications.
With a measurement range of 0–1800 µm (70.8 mil / 1.8 mm), multiple modes (single, continuous, differential), and calibration options (zero-point, offset, basic), the MCT 801 delivers accurate, non-destructive readings every time. Its backlit LCD, unit switching (µm, mil, mm), and auto shut-off add convenience for field and lab use.
MarMonix MCT 801 Coating Thickness Gauge Key Features
The MarMonix MCT 801 combines smart functionality with high precision:
-
Dual-function: measures non-magnetic coatings on ferrous substrates and coatings on non-magnetic bases
-
Automatic substrate identification for hassle-free operation
-
Measurement modes: Single (SNG), Continuous (CTN), Differential (DIF)
-
Flexible calibration: zero-point, offset, basic
-
Wide measuring range: 0–1800 µm / 70.8 mil / 1.8 mm
-
High accuracy: ≤150 µm: ±5 µm; >150 µm: ±(3%H + 1 µm)
-
Resolution: 0.1 µm (<100 µm); 1 µm (≥100 µm); 0.1 mil; 0.001 mm
-
Clear backlit LCD display with unit switching
-
Auto power-off for energy saving
-
Compact, portable design: 62 × 27 × 121.5 mm, ≈105 g
MarMonix MCT 801 Coating Thickness Gauge Applications
The MarMonix MCT 801 is a trusted tool for:
-
Automotive industry – paint thickness inspection for OEM, repair, and quality checks
-
Metal processing & fabrication – coating validation in industrial operations
-
Chemical and commodity inspection – confirming proper coating application
-
Manufacturing QA/QC – fast non-destructive thickness testing in production lines
What’s in the MarMonix MCT 801 Coating Thickness Gauge Box
-
MarMonix MCT 801 Coating Thickness Gauge (Main Unit)
-

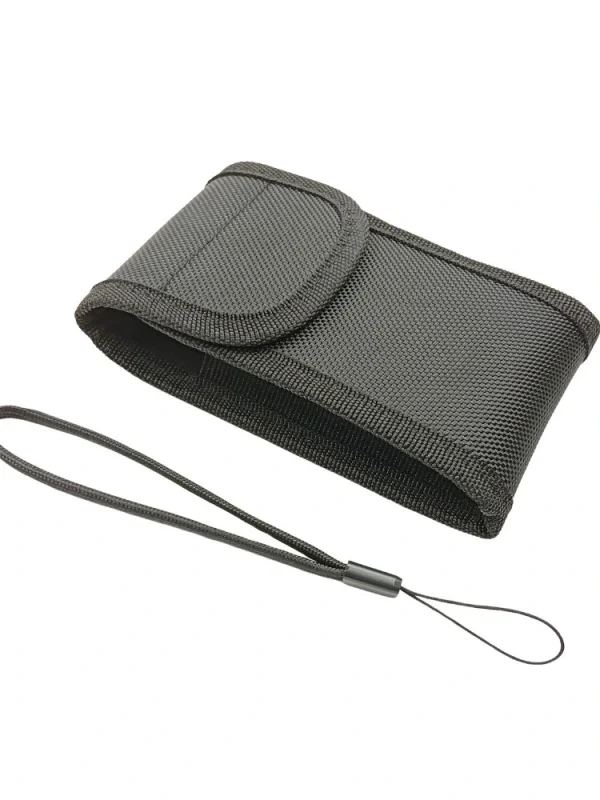

Protective carrying case or pouch
-

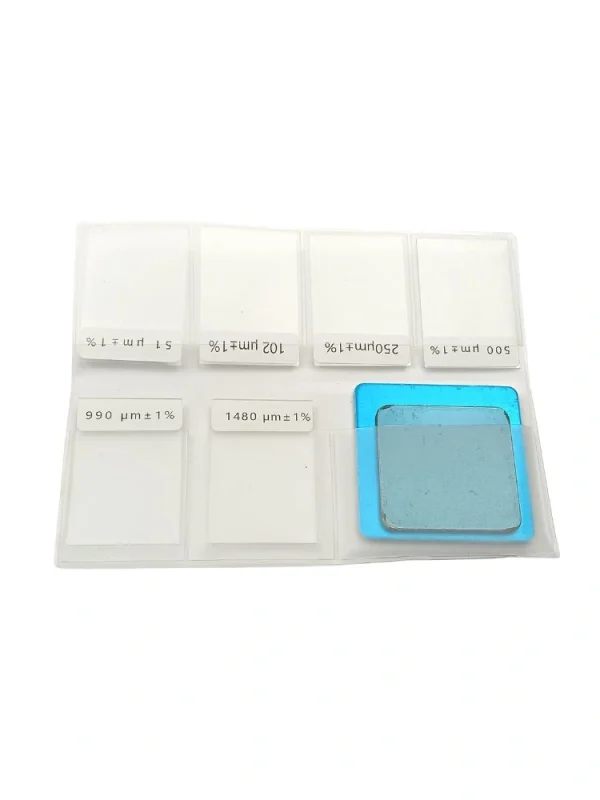

2 × Calibration standards or substrates
-
User manual
-
2 × AAA batteries
-
Certificate of Conformity & Warranty card
Specifications
Specifications
| Specification | Details |
|---|---|
| Measurement Range | 0–1800 µm / 0–70.8 mil / 0–1.8 mm |
| Resolution | 0.1 µm (<100 µm); 1 µm (≥100 µm); 0.1 mil; 0.001 mm |
| Accuracy | ≤150 µm: ±5 µm; >150 µm: ±(3%H + 1 µm) |
| Substrate Detection | Automatic (magnetic vs. non-magnetic) |
| Measurement Modes | Single, Continuous, Differential |
| Calibration | Zero-point, Offset, Basic |
| Units | µm, mil, mm (switchable) |
| Display | Backlit LCD |
| Auto Power-Off | Yes |
| Operating Temperature | –20 to 40 °C |
| Operating Humidity | 10–95% RH |
| Power Supply | 2 × 1.5 V AAA batteries |
| Dimensions | 62 × 27 × 121.5 mm |
| Weight | ≈105 g |
