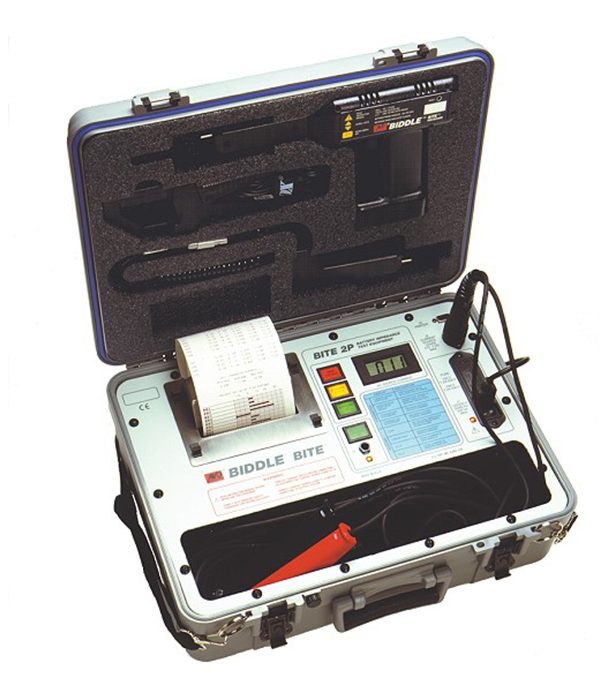

Buy Megger BITE2P

The Megger BITE2P Battery Impedance Tester is an essential tool for maintaining and assessing the performance of lead-acid and nickel-cadmium battery cells, with capacities of up to 7000 Ah. This robust and reliable instrument is designed for online testing, allowing for efficient evaluations of continuous power systems without requiring system downtime.

A key feature of the BITE2P is its ability to deliver instant battery health diagnostics using Pass/Warning/Fail indicators. These results are calculated based on user-defined baseline values, making it easy to interpret the condition of each battery cell. This simplifies the decision-making process regarding maintenance or replacement, ensuring swift and informed actions to optimize system performance.

Megger BITE2P Key Features

Megger BITE2P has several features that make it an ideal tool for battery testing. These include:

Determines the condition of lead-acid and NiCd cells up to 7000 Ah
On-board Pass/Warning/Fail indications
Robust, repeatable instruments
On-line testing
Check charger condition by measuring AC ripple current
Includes PowerDB LITE Software

Megger BITE2P Specifications

Megger BITE2P measures with a maximum total voltage of 275 V DC at current source leads and precision impedance measurement down to 1µΩ; the BITE2P guarantees accurate readings. Its built-in thermal printer and LCD make on-the-spot reporting and analysis easy and efficient!

Application	The BITE 2 and BITE 2P test lead-acid and nickel-cadmium cells up to 7000 Ah.
Maximum Total Voltage at Current Source Leads	275 V dc (larger battery systems can be sectioned to accommodate this specification)
Transmitter	Supply Voltage
	100 to 130 V, 50/60 Hz, 200 VA max
	210 to 250 V, 50/60 Hz, 200 VA max
	Source Output Current
	10 A nominal, 50/60 Hz operation
Receiver	Accuracy
	ac impedance 5% +1 LSD
	dc voltage ±(0.5% of rdg +1 LSD)
	Precision
	better than 0.5% one sigma
Voltage Range and Resolution	1 to 2.500 V dc, 1 mV resolution
Voltage Range and Resolution	2.5 to 25.00 V dc, 10 mV resolution
Impedance Range and Resolution	0 to 1.000 mΩ, 1µΩ resolution
	1 to 10.00 mΩ, 10µΩ resolution
	10 to 100.0 mΩ, 0.1µΩ resolution
Setting Time per Reading	3 seconds maximum
Supply	4.8 V dc, 800 mAh, quick charge nickel-cadmium battery pack
	Battery Pack Life, Full Charge
	5 hours continuous
	Maximum Cell/Jar Test Voltage
	25 V dc between receiver and potential probe
Display	LCD, 2 x 16 characters
Temperature	Operating: 32 to 105° F (0 to 40° C)
	Storage: -5 to 130° F (-20 to 55° C)
	Humidity: 20 to 90% RH, noncondensing
Maximum Battery String Test Voltage	275 V dc at source lead terminals (section the battery if >275 Vdc)
	Display
	Digital LCD meter, 0 to 15 A
	BITE 2P Printer
	Built-in thermal, with 4.25 in. (110 mm) printing width
Charger	Supply Voltage
	100 to 130 V, 50/60 Hz, 14 VA
	210 to 250 V, 50/60 Hz, 14 VA
	Output
	6.50 V dc @ 1.10 A dc charging (max)
	9.60 V dc open circuit
Clamp Range	Standard CT
	2.0 in. (50 mm) maximum opening
	Optional Miniature CT
	0.5 in. (12 mm) maximum opening
	Optional RopeCTTM
	12 in. (300 mm) opening, approx.
Safety	Designed to meet IEC 1010-1
Dimensions Transmitter	BITE 2: 6.5 H x 14 W x 10.6 D in.
	(16.5 H x 35.6 W x 27 D cm)
	BITE 2P: 7.5 H x 18.5 W x 14.6 D in.
	(19 H x 47 W x 37 D cm)
	Receiver (irregular shape)
	7.25 H x 11.25 W x 2 D in.
	(18 H x 29 W x 5 D cm)
Weight	Transmitter
	BITE 2: 17 lb (7.7 kg)
	BITE 2P: 18 lb (8.2 kg) alone, 32 lb (14.5 kg) packed
	Receiver
	1.6 lb (0.7 kg)

Get reliable battery diagnostics with the Megger BITE2P-Battery Impedance Tester from MME-AE, designed to ensure optimal performance of lead-acid and nickel-cadmium cells up to 7000 Ah.

Data Sheet

–

specifications

Specification	Megger BITE2P
Internal Charger
– Supply Voltage	100 to 130 V, 50/60 Hz, 14 VA
– Supply Voltage	210 to 250 V, 50/60 Hz, 14 VA
– Output	6.50 V DC @ 1.10 A DC charging (max)
– Output	9.60 V DC open circuit
Operating Temperature	50 to 95°F (10 to 35°C)
Receiver
– Accuracy	AC impedance: 5% + 1 LSD
– Accuracy	DC voltage: ±(1.5% of rdg +1 LSD)
– Precision	Better than 0.5% one sigma
– Voltage Range and Resolution	1 to 2.500 V DC, 1 mV resolution
– Voltage Range and Resolution	2.5 to 25.00 V DC, 10 mV resolution
– Impedance Range and Resolution	0 to 1.000 mΩ, 1µΩ resolution
	1 to 10.00 mΩ, 10µΩ resolution
	10 to 100.0 mΩ, 0.1mΩ resolution
– Settling Time per Reading	3 seconds maximum
– Ripple Current Range	100 mA to 15 A ± CT
Display	LCD, 2 x 16 characters
Supply	4.8 V DC, 800 mAh, quick charge NiMH battery pack
Battery Pack Life (Full Charge)	5 hours continuous
Maximum Cell/Jar Test Voltage	25 V DC between receiver and potential probe
Temperature
– Operating	32 to 105°F (0 to 40°C)
– Storage	-5 to 130°F (-20 to 55°C)
Humidity	20 to 90% RH, non-condensing
Clamp Range
– Standard CT	2.0 in. (50 mm) maximum opening
– Optional Miniature CT	0.5 in. (12 mm) maximum opening
– Optional RopeCTTM	6 in. (150 mm) opening (approx.)
Standards	Conforms to EMC Directive 2004/108/EC
Standards	LVD Directive 2006/95/EC
Dimensions
– Transmitter	7.5 H x 18.5 W x 14.6 D in. (19 H x 47 W x 37 D cm)
– Receiver (irregular shape)	7.25 H x 11.25 W x 2 D in. (18 H x 29 W x 5 D cm)
Weight
– Transmitter	18 lb (8.2 kg) alone
– Transmitter	32 lb (14.5 kg) packed
– Receiver	1.6 lb (0.7 kg)
