Name: Megger DLRO10 Digital Low Resistance Micro-ohmmeter
Brand: Megger
SKU: 86345

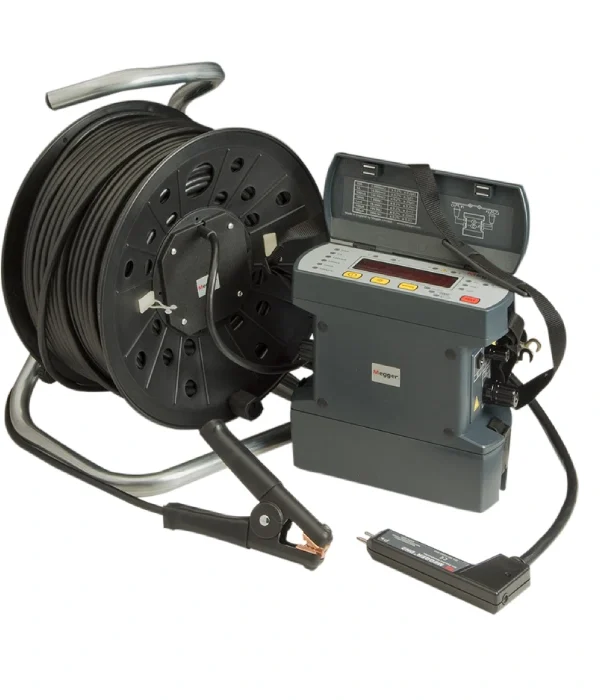

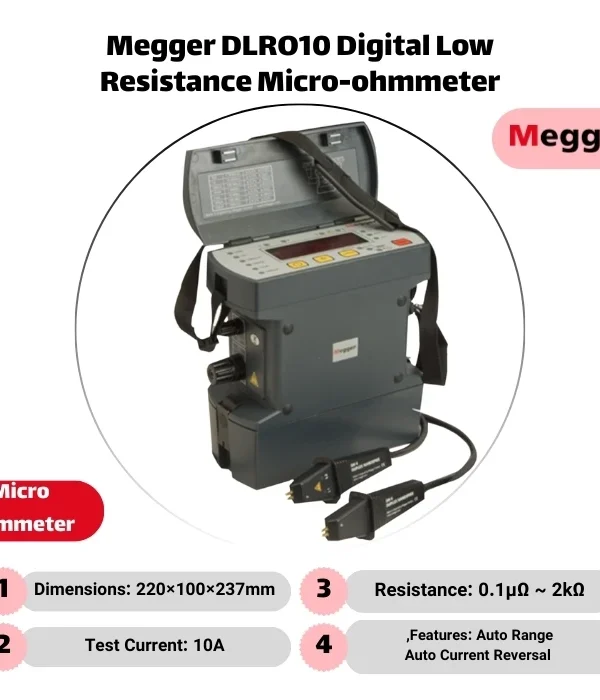

Megger DLRO10 Digital Low Resistance Micro-ohmmeter

The Megger DLRO10 is a digital low resistance micro-ohmmeter designed to provide highly accurate low resistance measurements, making it suitable for various industrial applications.

The DLRO10 is equipped with a large, bright 4.5-digit LED display, while the DLRO10X features a large, backlit LCD screen. Both displays are designed to be clearly visible in all lighting conditions, minimizing reading errors.

Both devices are housed in a sturdy, lightweight case, making them suitable for both fieldwork and laboratory use. They are portable enough to be worn around the neck, allowing access to areas that were previously difficult to reach.

Megger DLRO 10 Key Features

NEW interchangeable test lead terminations
Auto current reversal cancels standing emfs
Protected to 600 V
Automatically detects continuity in potential and current connections
Multiple operating modes including fully automatic

Rated 0 out of 5

0 reviews

Rated 5 out of 5

Rated 4 out of 5

Rated 3 out of 5

Rated 2 out of 5

Rated 1 out of 5

Reviews

Clear filters

There are no reviews yet.

Be the first to review “Megger DLRO10 Digital Low Resistance Micro-ohmmeter”

You must be logged in to post a review.

Brand

Megger

Megger since 1889 is a leading global premium manufacturer of measurement and testing technology. Megger top priority has always been to make your everyday work easier and safer. As such, insulation testers, micro-ohmmeters, and multimeters are among the long line of Megger inventions, making this brand one of the pioneers in the electrical industry. Megger products combine many years of experience and the valued feedback from our global users with the inventiveness and conscientiousness of our product developers. In Germany, we manufacture at three sites, Aachen, and Baunach near Bamberg and Radeburg near Dresden. Other manufacturing locations are based in Sweden, England, and America.

Datasheet

Specifications

Megger DLRO10 Specifications

Feature	DLRO10	DLRO10X
Measurement Modes	Manual, Auto, Continuous, Inductive	Manual, Auto, Continuous, Inductive, Unidirectional
Measurement Control	Fully Automatic	Fully Automatic/Manual
Measurement Speed	<3 seconds for forward and reverse current and to display average
Display	4.5-digit seven-segment LED	Large color display
Range and Safety	LED indications	LED indications
Test Method	Single cycle reversing d.c., ratiometric measurement – average result display
Test Current Accuracy	±10%	±10%
Test Current Stability	<10 ppm per second	<10 ppm per second
Lead Resistance	Maximum 100 mΩ total for 10 A operation irrespective of battery condition
Voltmeter Input Impedance	>200 kΩ	>200 kΩ
Noise Rejection	Less than 1% ±20 digits additional error with 100 mV peak 50/60 Hz on the potential leads. Warning will show if hum or noise exceeds this level.
Data Transfer	N/A	Real Time or from storage via RS232
Data Storage	N/A	700 tests
Memo Field	N/A	Up to 200 characters per test via integral alphanumeric keypad
Battery Type	5.2 lithium ion rechargeable	5.2 lithium ion rechargeable
Battery Life	Typical 1300 x 10 A tests before recharge	Typical 1300 x 10 A tests before recharge
Battery Charge Time	Standard: 2.5 hours to 90% capacity, 4 hours to fully charged; Slow Charge: +10 °C to +45 °C (50 °F to 113 °F)
