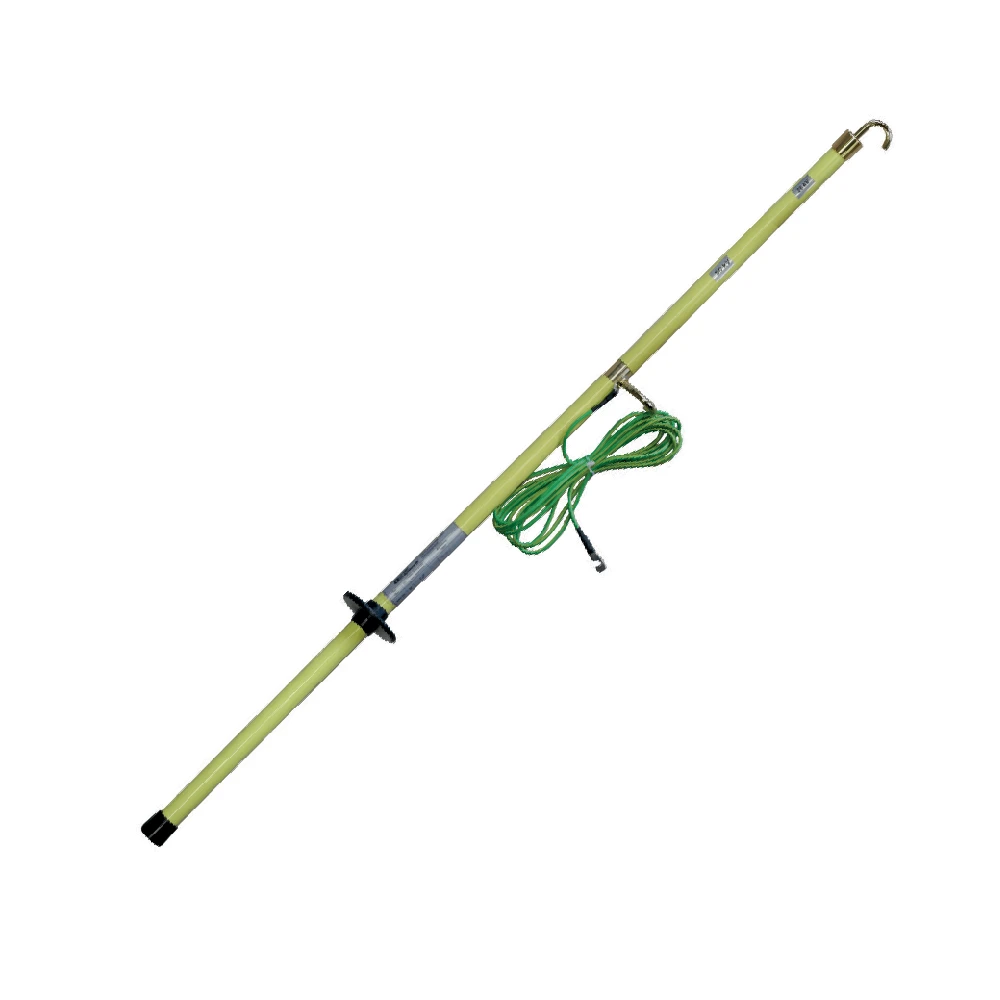

Megger EST 100 High voltage discharge rod
(No Reviews)
- Maximum Safety Margin: Rated for extreme high-voltage environments up to 100 kV.
- Long-Reach Profile: 176 cm overall length ensures the operator remains at a secure distance from active lines.
- High-Ohmic Damping: 200 kΩ internal resistor smoothly bleeds charge from capacitors and power cables up to 3 μF.
- Industrial Grade Insulation: Heavy-duty fiberglass-reinforced plastic (GFK) construction for extreme electrical environments.
Terms of sending goods ›
Order Via phone number
In stockDelivers in 2-3 business days.
Description
Megger EST 100: Heavy-Duty 100 kV Discharge & Earthing Rod
When handling ultra-high voltage power distribution cables, safety requires the ultimate line of defense. The Megger EST 100 discharge rod is specifically engineered to safely ground and dissipate residual static energy in test environments up to 100 kV. By utilizing an integrated 200 kΩ resistor, this safety rod prevents rapid high-current discharges, protecting delicate diagnostic equipment and personnel.
Advanced Safety Design
- Extruded GFK Rod Body: Reinforced fiberglass body offers high mechanical stability and maximum dialectric performance.
- Anti-Contact Shielding: Features a wide guard collar to prevent hand slippage toward the active metal tip.
- Safe Heat Dissipation: Built to safely withstand energy discharge cycles; requires a standard 30-minute thermal reset cooling time.
Specifications
Specifications
| Model Designation | EST 100 (Megger) |
| Max. Discharge Voltage | 100,000 Volts (100 kV) |
| Resistor Value | 200 Kilohms (200 kΩ) |
| Max. Cable Capacity | 3 microfarads (μF) |
| Physical Length | 1.76 Meters (Approx. 69 inches) |
| Total Net Weight | 2.50 kg |
