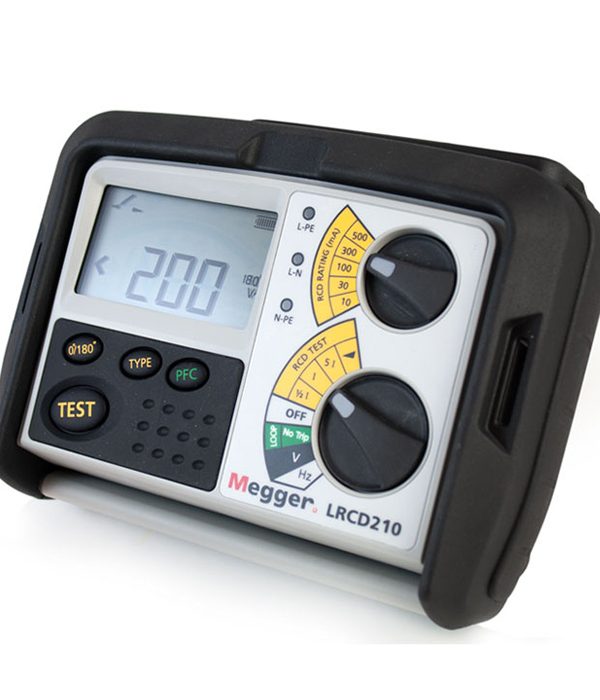

Megger LRCD210 Loop & RCD Tester
Brand:
Megger
SKU:
3525
The Megger LRCD210 is a combined loop impedance and RCD tester with ½×I, 1×I and 5×I trip tests plus ramp testing. UK Part P compliant, it verifies installations to EN 61557 in one rugged handheld unit.
- Safe Buy
- Fast Delivery
- Original Guarantee
- Online Payment
Description
Megger LRCD210 Loop & RCD Tester — Full RCD & Loop Testing
The Megger LRCD210 is a compact combined loop impedance and RCD tester that adds ½×I and 5×I trip tests plus ramp testing to the LRCD200 platform, making it UK Part P compliant. It delivers no-trip loop testing and complete RCD verification to EN 61557 in a single rugged handheld instrument for residential, commercial and light-industrial work.
Key Features
- Combined loop & RCD testing — measures loop impedance from 0.01 Ω to 2 kΩ and tests RCDs in one instrument, to EN 61557 parts 1, 3 and 6.
- No-trip loop testing — a nominal 15 mA, 3-wire test current measures loop impedance on RCD-protected circuits without nuisance tripping.
- Full RCD test suite — ½×I no-trip, 1×I and 5×I trip tests plus a 20–110% ramp test on 10, 30, 100, 300 and 500 mA RCDs.
- AC, A and S type RCDs — selectable RCD type with 0°/180° phase testing for complete device verification.
- UK Part P compliant — suitable for UK wiring-regulation testing as well as international use.
- Accurate trip-time measurement — ±1% ±1 ms trip-time accuracy with a selectable 25 V or 50 V touch-voltage limit.
- Voltage measurement — built-in 0–500 V measurement for quick supply checks.
- CAT III 300 V safety — rated to IEC 61010-1 CAT III 300 V (phase to earth) in an IP54 sealed case for site use.
- Long battery life — up to 2000 consecutive tests from 8 × AA cells; 203 × 148 × 78 mm, 980 g.
Applications
The LRCD210 is ideal for periodic inspection and testing, new installation commissioning and fault-finding on single-phase circuits in domestic, commercial and light-industrial premises — anywhere loop impedance and full RCD performance must be verified to wiring-regulation standards.
What’s in the Box
- Megger LRCD210 loop and RCD tester
- 3-wire test lead set — red, black and green (part no. 6231-592)
- Mains plug test lead (regional variant)
- 8 × AA alkaline batteries (fitted)
- User guide
Why Buy from MME in UAE
MOHAMMAD MAHDI Electronics Trading LLC (MME) is your trusted supplier of genuine Megger test and measurement equipment in the UAE. We offer competitive pricing, fast local delivery across Dubai, Abu Dhabi and the wider UAE, and knowledgeable after-sales support. Contact us on WhatsApp for the latest price and availability.
Download the Megger LRCD210 datasheet (PDF).
Specifications
Specifications
| SPECIFICATIONS – LRCD200 / LRCD210 / LRCD220 | |
|---|---|
| Voltage Measurement (LRCD200, 210, 220) | |
| Range | 0 V – 500 V |
| Accuracy | ±2% ±2 digits |
| Frequency Measurement (LRCD200, 210, 220) | |
| Range | 25 Hz – 450 Hz |
| Accuracy | 25.0–199.9 Hz: ±0.1 Hz 200–450 Hz: ±1 Hz |
| Phase Rotation Indicator (LRCD220 only) | |
| Description | Three-wire identification of phase rotation |
| Frequency | 45 Hz – 65 Hz |
| Loop Testing (to EN 61557-3) | |
| No Trip Loop Test (3-wire, Line to Earth) | |
| Supply | LRCD200/210: 200 V – 280 V, 45–65 Hz LRCD220: 100 V – 280 V, 45–65 Hz |
| Nominal Test Current | 15 mA |
| Loop Accuracy | 0.01–9.99 Ω: ±5% ±0.03 Ω 10.0–99.9 Ω: ±5% ±0.5 Ω 100–999 Ω: ±5% ±5 Ω 1.00–2.00 kΩ: ±5% ±30 Ω |
| High Current Line/Earth Loop Test (2-wire, LRCD220 only) | |
| Supply | 100 V – 480 V |
| Nominal Test Current | 15 mA – 2.4 A |
| Loop Accuracy | 0.01–9.99 Ω: ±5% ±0.03 Ω 10.0–99.9 Ω: ±5% ±0.5 Ω 100–999 Ω: ±5% ±5 Ω 1.00–2.00 kΩ: ±5% ±30 Ω |
| Line/Line (LRCD220 only) | |
| Supply | 100 V – 480 V, 45–65 Hz |
| Prospective Fault Current (PSCC) | |
| Description | Prospective fault current = Nominal supply voltage / Loop resistance (accuracy derived from loop test) |
| Resolution | 1–199 A: 1 A resolution 0.20–1.99 kA: 10 A resolution 2.0–19.9 kA: 100 A resolution |
| RCD Testing (to EN61557-6) | |
| RCD Test Ranges | LRCD200/210: 10 mA, 30 mA, 100 mA, 300 mA, 500 mA LRCD220: 10 mA, 30 mA, 100 mA, 300 mA, 500 mA, 1000 mA |
| Supply Voltage | LRCD200/210: 200–280 V, 45–65 Hz LRCD220: 100–280 V, 45–65 Hz |
| Test Current Accuracy | No Trip Test (½I): −8% to −2% Trip Test (I, 5I): +2% to +8% |
| Trip Time | ±1% ±1 ms |
| Fault (Touch) Voltage | |
| Displayed Range | 0–50 V |
| Error | +5% / +15% ±0.5 V |
| Temperature and Humidity | |
| Operating Range | −5°C to +40°C |
| Operating Humidity | 93% RH at +40°C max |
| Storage Range | −25°C to +70°C |
| Maximum Altitude | 2000 m |
| Environmental Protection | IP54 |
| Safety | |
| Standard | IEC 61010 |
| Category | Meets IEC61010-1 Cat III 300 V phase to earth |
| EN61557 Compliance | Part 1 – General Requirements Part 3 – Loop Resistance Part 6 – Residual Current Devices |
| Power Supply | |
| Battery | 8 × 1.5 V IEC LR6 type (AA alkaline) |
| Rechargeable | 8 × 1.2 V NiCd or NiMH cells |
| Battery Life | 2000 consecutive tests |
| Physical | |
| Weight | 980 g |
| Dimensions | 203 × 148 × 78 mm |
| E.M.C. | |
| Standard | In accordance with IEC61326-1 |
