Megger PVK330 PHOTOVOLTAIC KIT

Megger PVK330 Photovolatic Kit

The Megger PVK330 Photovoltaic Kit supplements a standard electrician’s toolbox so that he or she can carry out installation, commissioning, and testing on photovoltaic panels. The kit features a Megger PVM210 Irradiance Meter and a Megger DCM340 Clamp Meter in addition to a specialist test lead for all your photovoltaic-related needs.

The Megger PVM210 Irradiance Meter is a good instrument for finding the best location for solar panels because it measures the energy from the sun in any given location. The device is small, light, and can be operated with just one hand which is useful up ladders and on slanted rooves. In combination with a current measurement device, the PVM210 can also calculate short circuit current.

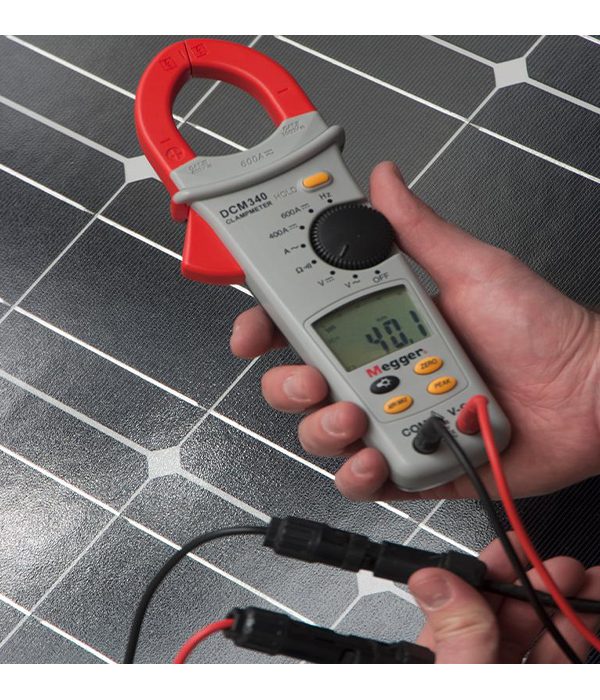

The highly versatile Megger DCM340 Digital Multimeter is the other instrument in the Megger PVK330 Photovoltaic Kit. It can measure AC/DC voltage up to 600V and AC/DC current up to 600A as well as resistance and frequency so it is very versatile and combines well with the PVM210 when working on solar installations.

In addition to the instruments, the Megger PVK330 also includes a selection of specialist PV test leads in addition to those included with the DCM340. Firstly, a pair of 1.3m test leads connect standard 4mm inputs to solar MC4 connections whilst a second adapts MC4 plugs to MC3 so that the DCM340 is rendered compatible with the vast majority of solar panels. All accessories are supplied in a handy, soft carry case.

The Megger PVK330 Kit’s highly accurate instruments and range of test leads make it a versatile, advanced set for performing work on all manner of solar installations.

Similar Products

The Megger PVK320 and Megger PVK330 are two similar products offered by Megger, a leading manufacturer of electrical testing equipment. While both products serve a similar purpose, there are some differences between them.

Megger PVK330-Photovolatic Kit Specifications

• Display: 3¾ digit LCD
• Ranges: 1999 W/m² / 634 BTU/(ft²*h)
• Accuracy: typically within ± 10 W/m² / ±3 BTU/(ft²*h)
• Resolution: 0.1 W/m² / 0.1 BTU/(ft²*h)
• Dimensions: 134 mm (H) x 48 mm (W) x 27 mm (D)
• Weight: approx. 90g
• Batteries: 2 x AAA, MN2400, LR03

Megger DCM340 600V AC/DC Clamp Meter

• dc / ac volts: 600 V dc / 600 V ac
• dc / ac current: 600 A dc / ac
• Resistance: 400 Ω
• Frequency: 400 Hz
• Dimensions: 68 mm (W) x 237 mm (H) x 42 mm (D)

• Weight: 225g
• Batteries: 9 V PP3, 6F22, NEDA

For full information on individual instruments and electrical specifications please refer to the appropriate datasheets on each instrument.

PV test leads

• 1 pair 1.3 metre leads terminated with 4 mm plugs and MC4 solar connectors
• 1 pair 0.2 metre adapter leads terminated with MC4 and MC3 solar connectors
• Maximum current: 19 A
• Maximum voltage: 1000 V

Zipped pouch

• Dimensions: 230 mm (L) x 170 mm (W) x 70 mm (D)
