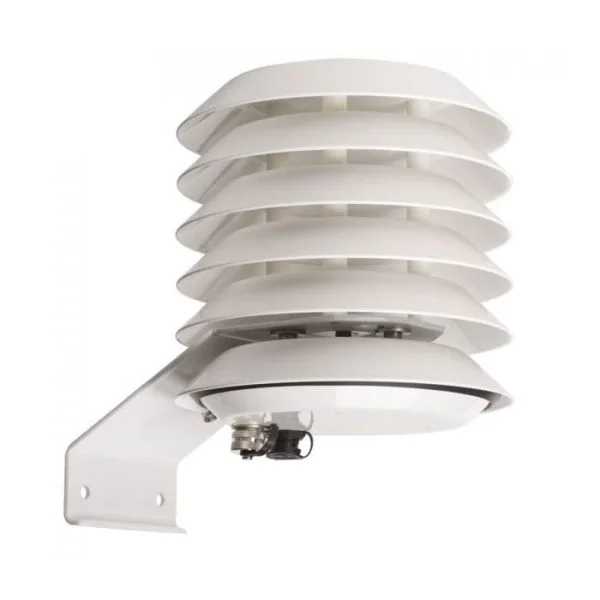

MET ONE Temperature Humidity Pressure Sensor 597A

Overview

The Met One 597A is an integrated temperature, relative humidity and barometric pressure sensor built for continuous duty in hostile environments. Combining three high-quality sensing elements in a single housing, it delivers reference-grade meteorological data for air-quality, regulatory and research monitoring stations.

The 597A uses a platinum RTD for temperature, a solid-state humidity sensor and a piezo-resistive pressure element, providing both digital (RS-232, SDI-12, RS-485) and analog outputs. Housed in a multi-plate naturally aspirated radiation shield and operating from 9–36 VDC, it is a compact, low-power all-in-one environmental sensor.

Key Features

• Integrated temperature, humidity and pressure sensor
• Temperature -50 to +70 °C (±0.2 °C)
• Humidity 0-100% (±2%)
• Pressure 500-1100 mbar (±0.5 mbar)
• Platinum RTD, solid-state RH and piezo-resistive pressure elements
• RS-232C, SDI-12, RS-485 and analog outputs
• Multi-plate naturally aspirated radiation shield
• Low power 9-36 VDC, 25 mA typical

Applications

• Meteorological and weather-station monitoring
• Regulatory air-quality networks
• Environmental and research monitoring
• Industrial and remote monitoring

What’s in the Box

• Met One 597A temperature/humidity/pressure sensor
• Multi-plate radiation shield
• Mounting hardware and product documentation
