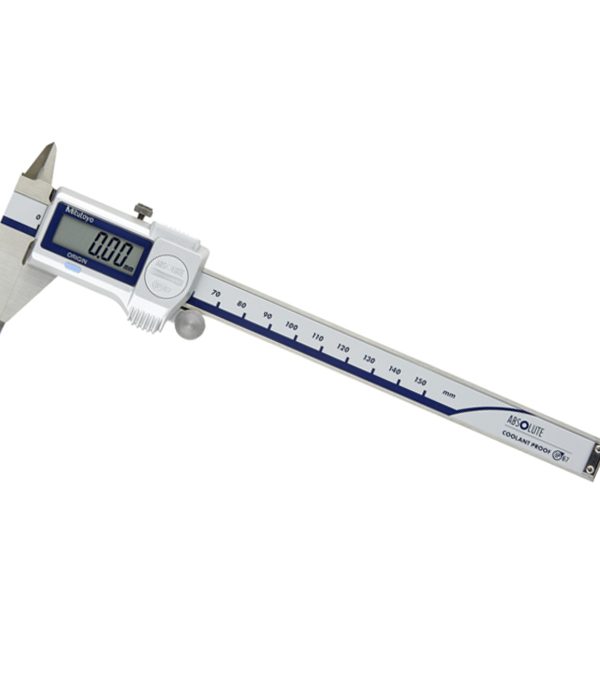

Mitutoyo 573-625-20 Digimatic Point Caliper

Mitutoyo 573-625-20 Digimatic Point Caliper

Professionals in a variety of sectors may benefit from the high-quality measurement capabilities of the Mitutoyo 573-625-20 ABSOLUTE Digimatic Point Caliper. It has characteristics that are user-friendly, durable, and precise to satisfy the needs of precise measurements in a variety of contexts.

User friendly

This caliper excels in measuring tough outer measurements because of its narrow-tipped jaws. It can easily fit into small locations and precisely measure things with complex curves or forms. Its measurement capabilities are further increased by the fact that its jaws are skilled at measuring the inside of tiny grooves and tracks.

Stainless steel construction

The caliper’s hardened stainless steel construction guarantees great toughness and lifespan. It withstands the rigorous industrial settings’ challenging circumstances, such as wear, corrosion, and impact, without sacrificing precision or performance.

The Mitutoyo 573-625-20 has an IP67 certification, which offers excellent defense against dust, cutting oil, and brief submersion in water. This characteristic makes it the perfect option for usage in settings exposed to these factors, such as workshops or production lines.

Built-in depth bar

The caliper makes precise measurement steps simpler by having a built-in depth bar. It facilitates rapid and simple depth measurements, simplifying processes and guaranteeing accurate outcomes.

The Mitutoyo 573-625-20 also has an SPC output feature that enables real-time data handling. By interacting with data gathering systems, this function enables smooth integration into quality control procedures and boosts efficiency.

ABS linear scale

Upon power-up, the ABS linear scale technology does not need the user to repeatedly establish the origin point. By doing this, manual origin adjustments are eliminated along with any chance for mistake. The ABSOLUTE scale also prevents overspeed mistakes, guaranteeing precise and trustworthy readings.

The caliper has a number of features, including inch/mm conversion (for inch/metric versions), Origin Set, Zero Setting, Power for/Off, and Data Output. These features increase measuring flexibility and convenience.

Certificate of Calibration

Every caliper purchase includes a Mitutoyo Certificate of Calibration. This certification ensures that the instrument has been calibrated and satisfies the exacting requirements established by the International Electrotechnical Commission (IEC) 17025 and the International Organization for Standardization (ISO/IEC) 17025. Users are reassured of the caliper’s accuracy and dependability by this.

The Mitutoyo 573-625-20 is provided in a fitting plastic box for easy storage and protection. When not in use, this case protects the caliper from bumps, dust, and other possible dangers, extending its lifespan.

Mitutoyo 573-625-20 Specifications

• Technology: Digimatic
• Length Standard: ABSOLUTE electromagnetic induction type linear encoder
• Max Response Speed: Unlimited
• Display: LCD
• Battery: SR44 (1 pc.) 938882
• Battery life: Approx. 5 years under normal use
• IP Rating: IP67
• SPC Output: Yes
• Weight: 163g
• Optional Accessories: 05CZA624, 05CZA625
• Unit: Metric
• Range: 0-150mm
• Resolution: 0.01mm
• Accuracy: ±0.02mm
