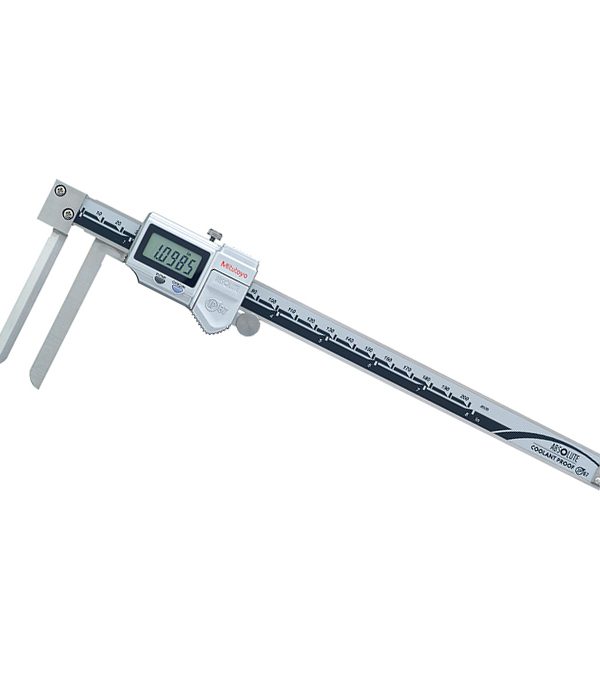

mitutoyo 573-701-20 digimatic offset caliper

mitutoyo 573-701-20 digimatic offset caliper:

product overview

the mitutoyo 573-701-20 Digimatic Offset Caliper is waterproof and suitable for use in the presence of coolant or cutting oil. This offset caliper has a main scale jaw that can slide up and down to facilitate measurement of stepped sections.include a depth bar. The ABSOLUTE system scale offers high-speed measurement that is error-free and outputs SPC data.

working conditions

containing IP67 protection, you may use your device in environments containing cutting oil, dust, and other contaminants while also protecting it from brief submersion in water.

Functions

Functions include Origin Set, Zero Setting, Power On/Off, Data Output and inch/mm conversion (on inch/metric models only).

mitutoyo 573-701-20 digimatic offset caliper features:

• Available in Metric and Inch/Metric models.
• Constructed of hardened stainless steel for better durability and longevity.
• Unnecessary to wipe or clean the scale.
• Supplied in fitted plastic case.
• Technology: Digimatic
• Length Standard: ABSOLUTE electrostatic capacitance type linear encoder
• Max Response Speed: Unlimited
• Display: LCD
• Battery: SR44 (1 pc.) 938882
• Battery life: Approx. 5 years under normal use
• IP Rating: IP67
• SPC Output: Yes
• Optional Accessories: 05CZA624, 05CZA625, 959143

mitutoyo 573-701-20 digimatic offset caliper specifications:

• Max. Permissible Error E MPE:±0,001″
• Max. Permissible Error S MPE:±0,002″
• Digital step:0,0005″/0,01 mm
• Max. response speed:Unlimited
• ORIGIN (ABS-Zero):Yes
• Auto Power OFF after 20 min. non use:Yes
• Low voltage alarm:Yes
• Data output:Yes
• Mass:168 g
• Units:Metric, Inch
• Range:0-150mm / 0-6″
• Resolution: 0.01mm / 0.0005″
• Accuracy:±0.0010″
