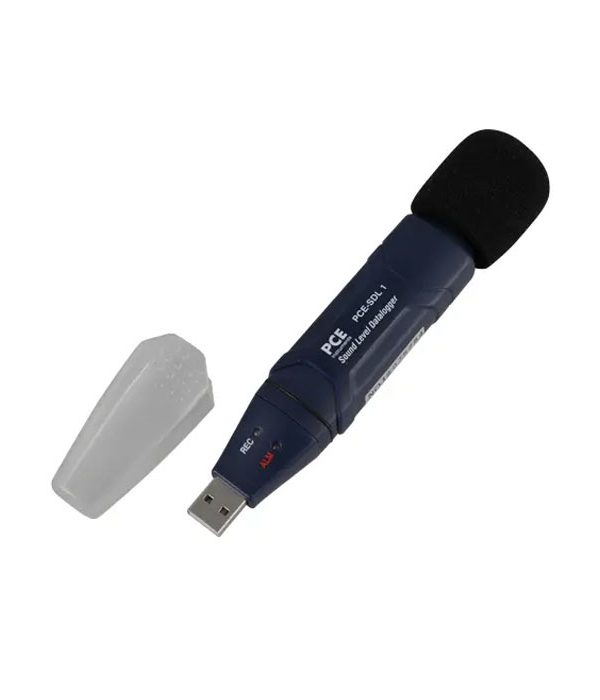

PCE-SDL 1 Mini Sound Level Meter

The PCE-SDL 1 is a Class 2 data-logging sound level meter, often used for long-term acoustic measurements.

SKU:79205

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

AED 868 (excl.VAT)

15People watching this product now!

PCE-SDL 1 Mini Sound Level Meter

The PCE-SDL 1 is a Class 2 data-logging sound level meter, often used for long-term acoustic measurements. It features a USB interface and comes with Windows-compatible software, allowing users to display a progressive graph of the data collected and set alarm limits with visual indicators via flashing LEDs on the meter.

The device covers a measuring range of 30 to 130 dB and can store up to 129,920 data sets, with the capability to record data over intervals ranging from 1 second to 24 hours. It provides both A and C frequency weighting and operates within a frequency range of 31.5 Hz to 8 kHz. The PCE-SDL 1 is designed for a variety of applications, including noise monitoring in environments like factories, schools, offices, and traffic analysis.

PCE-SDL 1 Key Features

  • Measuring range: 30 … 130 dB
  • Memory: Stores up to 129,920 data sets or 36 hours at 1-sec interval
  • Includes USB interface and Windows-compatible software for data transfer to PC
  • NORM (normal) and PEAK modes
  • Adjustable alarm limits
  • LED alarm indicators
  • A and C frequency weighting
  • Frequency range: 31.5 Hz … 8 kHz
  • Adjustable measurement interval
  • Date- and time-stamped data collection
  • Manual and auto-start modes
  • Standard: IEC 61672-1 (Class 2)

PCE SDL 1 Specifications

Measurement range30 … 130 dB
StandardIEC 61672-1 (Class II)
Accuracy± 1.4 dB
Time weightingFast and slow
Frequency31.5 Hz … 8 kHz
Storage capacity129,920 data sets
Frequency weightingA and C
Measuring rate1 sec … 24 hrs
Operating conditions0 … 40 °C / +32 … +104 °F , 10 … 75 % RH
Power supply3.6 V battery
System requirementsWindows 2000 and up
DimensionsApprox. 130 x 25 x 30 mm / 5.12 x 0.98 x 1.18″
WeightApprox. 20 g / 0.05 lb
