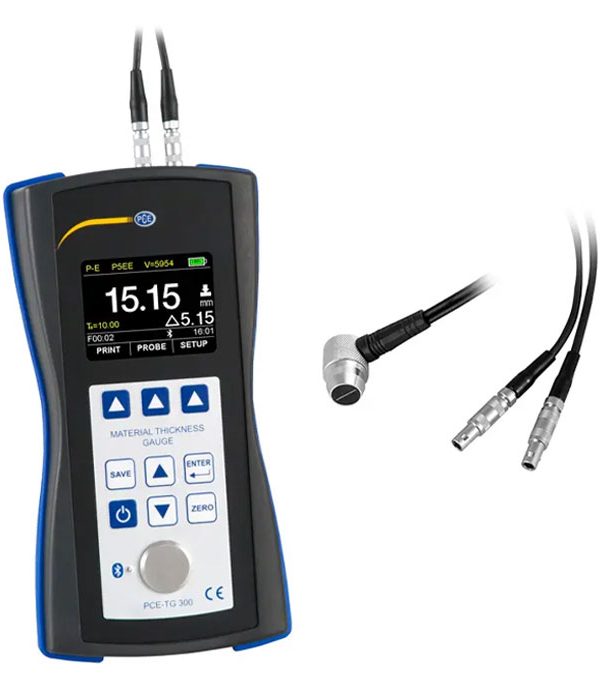

PCE-TG 300-P5EE Ultrasonic Thickness Gauge Thru coating

Short Description:

The PCE-TG 300-P5EE Thickness Meter is a cutting-edge solution that delivers accurate and reliable measurements for various materials. Its special sensors, wide measuring range, TFT color display, and non-destructive ultrasound method make it an ideal tool for professionals seeking precision and efficiency. If you want a versatile thickness meter to elevate your measurement capabilities, head over to mme.ae and explore the PCE-TG 300-P5EE today!

Product purchase

SKU: 63447 Category:
Brand:Pce

AED 5,100 (excl.VAT)

17 People watching this product now!

Terms of sending goods ›

  •  In-stock items are delivered within 2 business days.
  • We are not Supporting COD Payments Terms Outside UAE

PCE-TG 300-P5EE Ultrasonic Thickness Gauge Thru coating

If you need to measure the thickness of walls made of homogeneous materials, including those that have damping or scattering properties, the PCE-TG 300-P5EE is an excellent option. This thickness meter is available on the mme.ae website and offers a range of features that make it suitable for various applications. Professionals across different industries can rely on this innovative and versatile tool for accurate measurements.

Special Sensors for Diverse Applications:

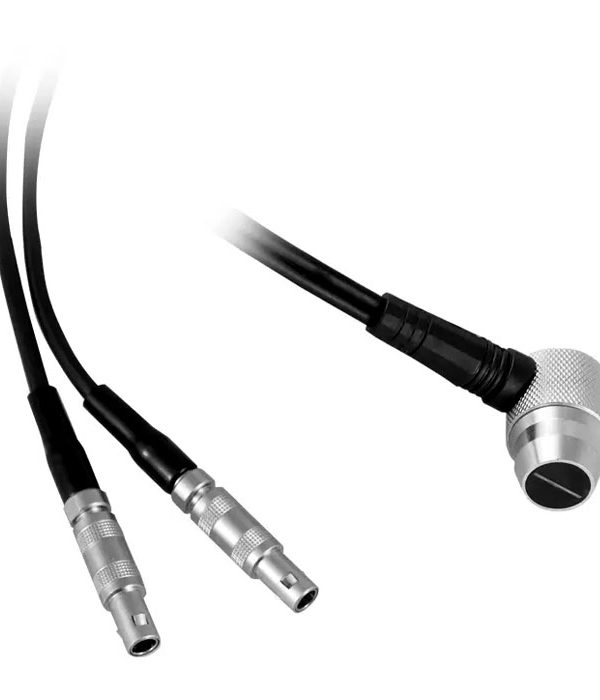

One of the standout features of the PCE-TG 300-P5EE is its compatibility with special sensors for different measurement scenarios. Whether you need to reach hard-to-access points with the angled 90° sensor or perform measurements on coated workpieces with the Echo-Echo mode, this device has you covered. Its adaptability ensures you can tackle a wide range of projects with ease.

Wide Measuring Range and TFT Color Display:

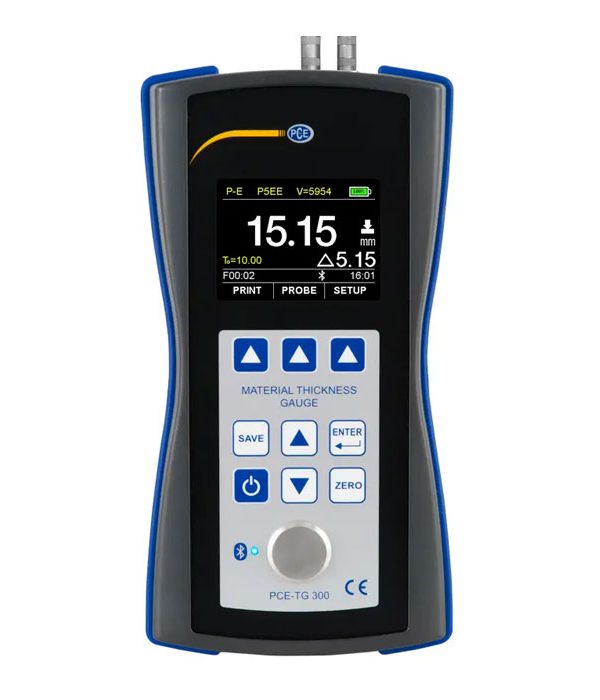

The PCE-TG 300 P5EE boasts a wide measuring range and an adjustable speed of sound, enabling precise and comprehensive measurements. The measured values are displayed on a TFT color display, making it easy to read and interpret the data on the spot. With its user-friendly interface, you can navigate through the readings effortlessly.

Non-Destructive Ultrasound Method and Bluetooth Print Function:

Employing a non-destructive ultrasound method, this thickness meter enables measurements on end products without causing damage. Moreover, it operates on batteries and offers a convenient print function via Bluetooth, streamlining your workflow and enhancing productivity.

Related Products

PCE-TG 300-P5EE Thickness Meter Specifications:

  • Measuring range: 2-600 mm / 0.078-23.62″
  • Minimum diameter of pipes: 20 x 3 mm / 0.787 x 0.118″
  • Frequency: 5 MHz
  • Diameter: 10 mm / 0.39″
  • Measuring range: pulse-echo mode 0.65-600 mm / 0.025-23.62″ (steel)
  • Accuracy: ±0.04 mm H[mm] (<10 mm); ±0.4 % H[mm] (>10 mm), H refers to the material thickness of the workpiece
  • Resolution: 0.1 mm / 0.01 mm / 0.001 mm (adjustable)
  • Measurable materials: metals, plastics, ceramics, epoxy resin, glass, and all homogeneous materials
  • Working modes: Pulse-echo mode (fault and void detection), Echo-echo mode (hide layer thicknesses, e.g. paint)
  • Calibration: sound velocity calibration, zero calibration, two-point calibration
  • View Mode: Normal Mode, Scan Mode, Difference Mode
  • Units: mm / inch
  • Data transfer: printing via Bluetooth / USB 2.0
  • Memory: non-volatile memory with 100 data groups with 100 data sets each
  • Operating time: continuous operation 100 h, automatic stand-by mode (adjustable), auto power-off mode (adjustable)
  • Power supply: 4 x AA battery 1.5 V
  • Display: 320 x 240 pixels TFT LCD color display with brightness adjustment
  • Operating conditions: 0-+50 °C / 32-122 °F, ≤80 % RH non-condensing
  • Storage conditions: -20 to +70 °C / -4-158 °F, ≤80 % RH non-condensing
  • Dimensions: 185 x 97 x 40 mm / 7.2 x 3.8 x 1.5″
  • Weight: 375 g / 13.2 oz

Datasheet
