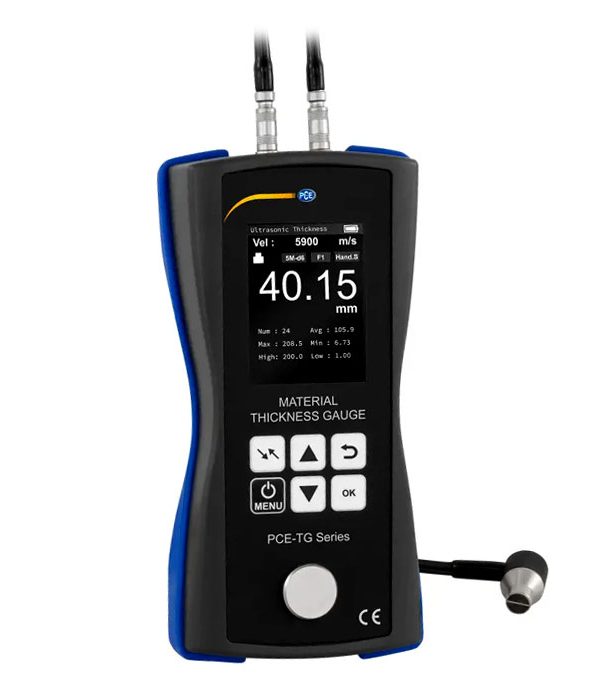

PCE-TG 75 Ultrasonic Thickness Gauge

PCE-TG 75 Ultrasonic Thickness Gauge

In today’s rapidly advancing realm of technology and industrial progress, measurement tools hold immense importance in guaranteeing accuracy and excellence. The PCE Instruments’ PCE-TG 75 Thickness Meter is an extraordinary apparatus in this context. This piece explores the qualities and attributes of this state-of-the-art tool, providing valuable perspectives on its uses and functionalities. If you seek dependable thickness measurements and advanced capabilities, the PCE-TG 75 is the device to rely on.

Introducing the PCE-TG 75 Thickness Meter

The PCE-TG 75 Thickness Meter stands out for its remarkable efficiency and diverse features. The ability to measure material thickness up to 225 mm offers unparalleled versatility. The adjustable speed of sound ensures precise measurements across various materials, making it ideal for applications in industries such as construction, manufacturing, and quality control. Moreover, the device comes with a calibration reference, guaranteeing accuracy in all your measurements. The limit alarm function further adds to its value by providing quality assurance during your operations.

Data management is made easy with the PCE-TG 75’s built-in memory. The device lets you record and analyze measured values, providing valuable insights for your projects and processes. Additionally, equipping it with an ISO calibration certificate ensures compliance with international standards, giving you the confidence of reliable and traceable measurements.

PCE-TG 75 Thickness Meter Specifications:

• Measuring range: 1.00-225.0 mm, 0.04-8.85″
• Resolution: 0.01 mm at ≤99.99 mm, 0.1 mm at ≥100.0 mm
• Accuracy: ±0.5 % of measured value + 0.05 mm
• Storage space: 500 measured values
• Probe frequency: 5 MHz
• Standard sensor: PCE-TG 5M10d
• Adjustable speed of sound: 1000-9999 m/s
• Smallest pipe diameter: Ø20 x 3 mm (steel)
• Material library: 15 memory locations
• Calibration reference: 4 mm
• Display: 2.4 inch TFT LCD color display with brightness adjustment
• Power supply: 3 x 1.5 V AA batteries
• Automatic switch-off: switched off, 2, 5, 10, 30 minutes
• Ambient conditions: 0-40 °C, 32-104 °F, <90 % RH, non-condensing
• Dimensions: 163 x 82 x 38 mm, 6.4 x 3.2 x 1.5″
• Weight: 320 g, 11.2 oz
