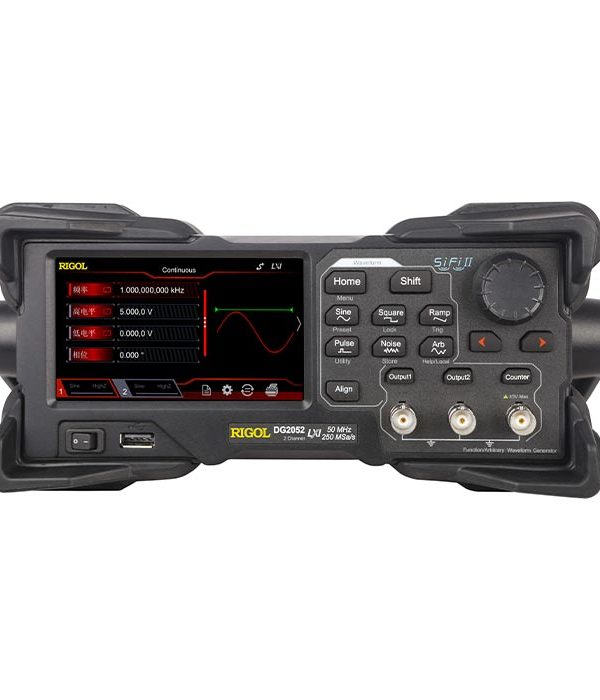

Rigol DG2052 Function Waveform Generator

Rigol DG2052 Function Arbitrary Waveform Generator

The Rigol DG2052 function waveform generator is a 2-channel 50MHz function generator with a maximum sample rate of 250Mbps. As a multifunctional signal generator, the DG2000 Series Function/Arbitrary Waveform Generator integrates several tools in one, such as B. Function Generator, Arbitrary Wave Generator, Noise Generator, Pulse Generator, Harmonic Generator, Analog/Digital Frequency Modulunter.

As a versatile and portable tool, with an intuitive touch screen and high performance at an unprecedented price, it offers a new choice in education, R&D, and manufacturing. To buy the highest quality DG2052 Function Waveform Generator And the cheapest price, refer to our experts.

Rigol DG2052 FEATURES

• Exclusive SiFi II (Signal Fidelity II) technology: point-to-point generation of arbitrary waveforms; restore the signal without distortion; precise and adjustable sample rate; Jitter of all waveforms (including sine, pulse, etc.) up to 200 ps
• Memory depth of 16 Mpts per channel for any waveform
• Two standard channels with the same power, equivalent to two independent signal sources
• High-frequency stability: ± 1 ppm; low phase noise: -105 dBc/Hz
• Built-in high-order harmonics generator (up to 8th harmonics)
• Various analog and digital modulation functions: AM, FM, PM, ASK, FSK, PSK, and PWM
• Default channel tracking function, when enabled, all parameters of both channels are updated according to user configuration
• Default interface: USB Host&Device and LAN (LXI Core 2011 Device); USB GPIB function supported

Rigol DG2052 Generator SPECIFICATIONS

• Channels 2
• Output signals Sinus, Block, Ramp, Pulse, Harmonic, DC, Noise, PRBS, Dual-tone, RS232
• Vertical resolution 16 bits, Sample Rate 250 MSa/s, Frequency Resolution 1 μHz
• Waveform length 16 Mpts
• Amplitude range: <10 MHz: 1 mVpp – 10 Vpp/ <30 MHz: 1 mVpp – 5 Vpp/ <60 MHz: 1 mVpp – 2.5 Vpp/ >60 MHz: 1 mVpp
• Modulation AM, FM, PM, ASK, FSK, PSK, PWM
• Output Precision ± (1% + 5 mV)
• Frequency counter bandwidth 240 MHz (7 digits/s)
• Output Impedance 50 Ω
• Display 4.3″ TFT LCD touch screen (480 x 272)
• Interfaces USB Host, USB Device, LAN
• Weight 3.2 Kg
• Dimensions 261.5x112x318.4 mm
