Rigol DG4102 Function / arbitrary waveform generator
The Rigol DG4102 is a high-performance, two-channel function/arbitrary waveform generator that serves a variety of applications in fields such as education, manufacturing, engineering, and research.
MME Shopping Event
Hurry and get discounts on Most of MME Products up to 20%
Call for Price
11People watching this product now!

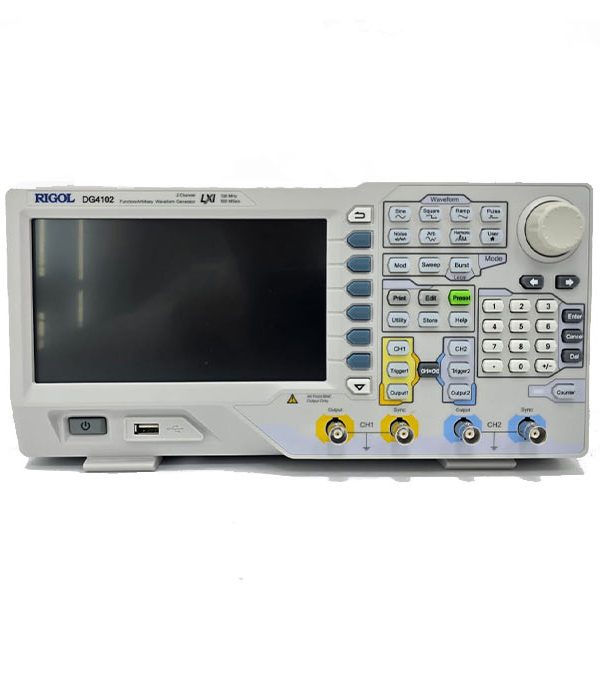

Rigol DG4102 2 channel function / arbitrary waveform generator
The Rigol DG4102 is a high-performance, two-channel function/arbitrary waveform generator that serves a variety of applications in fields such as education, manufacturing, engineering, and research. This device is particularly valued for its versatility and precision in generating various types of waveforms and signals.
The device also includes a large, intuitive display that makes it easy to configure settings and view waveform outputs in real time. Advanced modulation capabilities, such as AM, FM, PM, FSK, and PWM, are integrated, providing further flexibility for users needing to test complex signal modulations.
Rigol DG4102 Key Features
- Filesystem and USB Stick Support
- Integrated Helpsystem
- Arbitrary signal generation
- Independent analogue and digital modulation
- Various sweep functions
Rigol DG4102 Specifications
| Generator | Function / Waveform Generator Rigol DG4102 |
|---|---|
| Display | 17,78 cm (7″) TFT with 16M colors |
| Resolution | 800 × 480 Pixel |
| Interfaces |
|
| Dimensions | 313 mm × 160,7 mm × 116,7 mm (12.32″ × 6.33″ × 4.59″) |
| Weight | 3.2 kg (7.055 lbs) |
| Supported operation systems | Windows XP (32Bit + 64Bit), Vista (32Bit + 64Bit), Windows 7 (32Bit + 64Bit) |
| Function | Function / Waveform Generator Rigol DG4102 |
|---|---|
Channels | 2 |
| Signal Output | Sine, Rectangle, Pulse, Ramp, Noise, Harmonics, 150 predefined arbitrary Waveforms, free definineable arbitrary Waveforms |
| Vertical Resolution | 14 bit |
| Amplitudes | 1 mVpp ~ 10 Vpp (50 Ω) |
| DC Offset | ±5 V (50 Ω) |
| Sample Rate | 500 MSa/s |
| Frequency Range Sine | 1 µHz – 100 MHz |
| Frequency Range Rectangle | 1 µHz – 40 MHz |
| Frequency Range Pulse | 1 µHz – 25 MHz |
| Frequency Range Ramp | 1 µHz – 3 MHz |
| Frequency Range Harmonics | 1 µHz – 50 MHz |
| Frequency Range Arbitrary | 1 µHz – 25 MHz |
| Frequency Range Noise | 80 MHz (-3db) |
| Resolution | 1 µHz |
