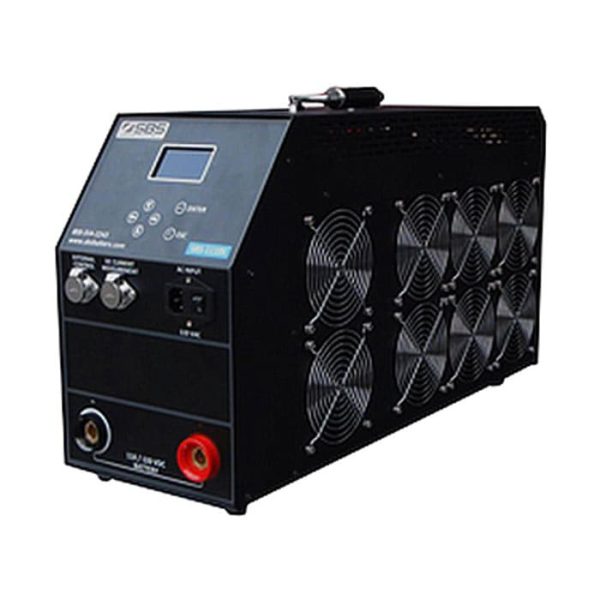

SBS 2206S Battery Capacity Tester

Buy SBS 2206S Battery Capacity Tester

The only way to know if your stationary batteries will perform to specification is to test them regularly.

NERC standard PRC-005-2 requires that vented lead-acid and nickel-cadmium (NiCd) systems be discharge tested every six (6) years and valve-regulated lead acid (VRLA) batteries every three (3) years. IEEE recommends load testing stationary flooded/vented lead acid and NiCd stationary batteries every five (5 )years and VRLA batteries every 12–18 months.

The SBS-2206S constant current load banks are an easy and affordable way to perform accurate IEEE450 (Vented Lead-Acid), IEEE1106 (Ni-Cad), and IEEE1188 (VRLA) load tests.

These units are quick and easy to set up. They display the voltage, current, and Ah removed from the string during the test. Since this is a constant current load bank, the user also does not have to adjust the current during the test.

These load banks come standard with multiple adjustable stop points and built-in protection to ensure that the batteries are never damaged by overdischarge.

SBS 2206S Battery Capacity Tester Specifications

The SBS 2206S Battery Capacity Tester offers a DC Current Range of 0–60 A and a DC Volt Range of 190–265 Vdc, ensuring accurate and comprehensive testing capabilities for a wide range of battery capacities and voltages.

• Weight 40.000000
• Display Type LCD (128 x 64 pixels)
• DC Cables Included, 9 ft. long
• DC Current Range 0–60 A
• DC Volt Range 190–265 Vdc
• Protection Overheat / Overload / Over voltage protection with audible alarm and screen warning
• Test Type Unit holds the set current throughout the test
• Power Supply(s) SBS-2206S uses a DC power supply (from a tested battery)
• 125 and 250 Vdc units use AC power supply (110 Vac 60 Hz)
• Input During discharge: real-time voltage / current / test time/capacity discharged (Ah)
• User can set: end system voltage/test time/capacity discharged (Ah)
• Dimensions 26 x 9 x 16 in.

Keep your batteries in top shape effortlessly with a reliable battery tester from MME-AE—shop now and enjoy expert support to find the perfect tester for your needs, ensuring your business never skips a beat!
