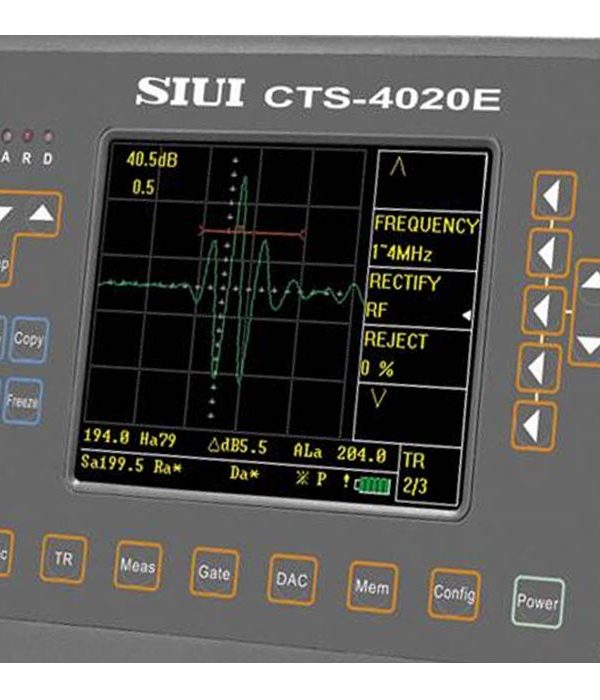

SIUI CTS-4020E Digital Ultrasonic Flaw Detector

SIUI CTS-4020E Digital Ultrasonic Flaw Detector

The SIUI CTS-4020E is a state-of-the-art digital ultrasonic flaw detector that represents the pinnacle of SIUI’s innovative technology and advanced process. Designed to meet various detection demands, including forged pieces, welding lines, and airplane parts, the CTS-4020E combines excellent performance, compact size, lightweight design, and powerful functions for efficient flaw detection.

Key Features of the SIUI ultrasound scanner CTS-4020E

Innovative Technology: The CTS4020e digital ultrasonic flaw detector boasts continuous innovation and world-class technology. It incorporates advanced features such as at least 63dB detection sensitivity surplus, making it ideal for detecting large forged pieces or coarse-crystal materials. It also offers a LAN Ethernet port for real-time communication with a PC and remote control, a cine loop function for recording dynamic scanning processes, and a user-friendly interface with wave tracking for immersion detection. Additionally, it includes new techniques like DAC, TCG, RF echo display, large memory, and a USB port, ensuring outstanding performance.

Superior Functionality

The SIUI CTS-4020E excels in its functionality, offering probe frequency testing and probe angle (K value) measuring functions. It incorporates variable PRF (Pulse Repetition Frequency) to avoid reverberation signals during flaw detection. The device is equipped with a large-capacity lithium battery pack for continuous operation, ensuring uninterrupted flaw detection.

Compact and Lightweight

Despite its powerful capabilities, the CTS-4020E maintains a small size and lightweight design. This portability makes it convenient for field inspections and on-site applications, where maneuverability is crucial.

Wide Range of Applications

The SIUI CTS-4020E is an ultrasound imaging and flexible non-destructive testing (NDT) tool since it can handle a range of detecting requirements. It has uses in a variety of fields, including manufacturing, welding, aerospace, and more. Its utility in crucial quality control procedures is ensured by its capacity to find faults in forged components, welding lines, and airplane parts.

The mme-ae website is just one of the places where you may get the SIUI CTS-4020E. Customers may acquire this cutting-edge technology for their flaw detection requirements by visiting the mme-ae website, which offers a variety of trustworthy ultrasonic flaw detectors, including the CTS-4020E.

SIUI CTS-4020E Digital Ultrasonic Flaw Detector Specifications:

• Probe frequency testing function
• Probe angle (K value) measuring function
• Variable PRF: avoid reverberation signals during flaw detection
• Large capacity lithium battery pack for continuous operation over 6 hours. High-brightness color TFT LCD, bringing optimized effect for reading and measurement
• Color differentiation display function for second echo signals, when detecting with an angle probe
• Ethernet communication for achieving real-time communication with a PC (Host) and remote control
• Large memory for saving up to 1000 data sets, including waveforms, curves, parameters, test reports, etc
• USB port for saving system stored data and data waveforms to a USB disk, as well as easy printing test reports
• 10 waveform and character colors are available for selection
• RF (Radio Frequency) echo display: good for thin-wall material measurement, academic research, or qualitative analysis
• Peak value memory function and echo compare function: useful for fast scanning, measurement, and comparison on workpieces
• Cineloop function for recording dynamic scanning process
• Operating frequency range: 0.5~15MHz, highlighting the advantages of high sensitivity and broadband.
• Interface wave tracking function: Immersion detection or precision measurement can be easily achieved through the logic relation between gates A and B.
• Complete DAC and TCG curve function: convenient for echo evaluation, suitable for on-spot detection, such as detection of large forged pieces and coarse-crystal material.
