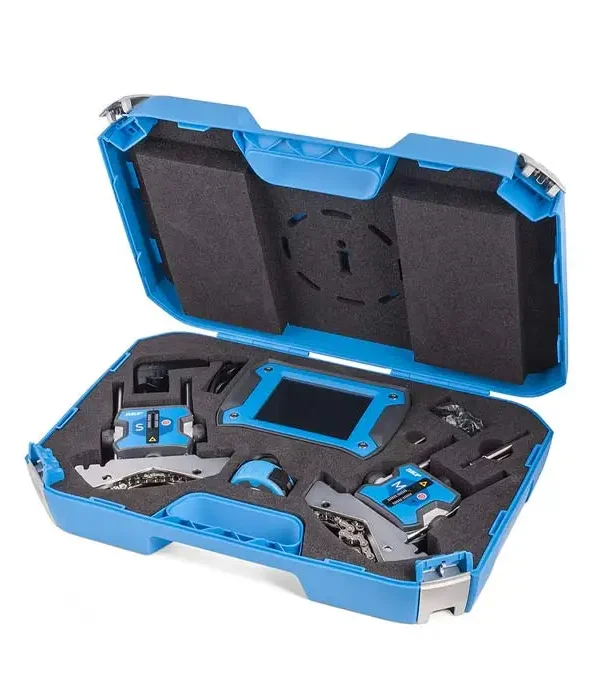

SKF TKSA 31 Shaft alignment tool

The SKF TKSA 31 is SKF’s most affordable laser shaft alignment tool, built for quick and effective horizontal shaft alignment. Featuring a dedicated 5.6″ colour resistive touchscreen display, wired USB connectivity, and an intuitive step-by-step interface, this SKF TKSA 31 alignment tool requires no special training — making it ideal for maintenance teams at every skill level. Its compact, lightweight measuring heads with large-sized laser detectors reduce the need for pre-alignment, while the embedded soft foot tool establishes a solid foundation for accurate results on motors, drives, fans, pumps, and gearboxes — even in tight or hard-to-reach areas.

Whether you know it as the SKF TKSA 31 shaft alignment tool, the TKSA31, or the SKF laser alignment tool TKSA 31, this budget-friendly system delivers reliable performance with a 4-metre measuring range, IP54 environmental protection, and automatic measurement capabilities. Explore the key features, technical specifications, and applications of the SKF TKSA 31 below, and visit the Related Documents tab to download the official datasheet and user manual. Full specifications and box contents are also available under the Specifications tab.

Key Features of the SKF TKSA 31

Here are the core features of the SKF TKSA 31 shaft alignment tool, which highlight its intuitive operation, affordable design, automatic measurement capabilities, built-in reporting, and comprehensive machine library:

• Easy 3-Position Measurement: Uses the well-known 9-12-3 o’clock measurement method with additional positioning flexibility, requiring a minimum rotation of only 140° — suitable for applications with limited rotational access.
• Automatic Measurement: Enables hands-free operation by automatically detecting the position of the measuring heads and capturing data only when they are correctly positioned.
• Live View Correction: Provides real-time vertical and horizontal correction values on the touchscreen display, supporting intuitive adjustments and facilitating precise machine position corrections.
• Automatic PDF Reports: Generates alignment reports after each measurement, which can be customised with application notes and easily exported as PDF files for documentation.
• Machine Library: Built-in library stores all machines and alignment reports, simplifying machine identification and streamlining the alignment workflow across multiple assets.
• Soft Foot Detection: Embedded soft foot tool helps identify and correct soft foot conditions before alignment, ensuring a stable foundation for accurate results.
• Affordable & Budget-Friendly: Focuses on the standard shaft alignment process and essential functions, making professional laser shaft alignment accessible for almost every budget.

SKF TKSA 31 Technical Specs & Hardware

Here are the key technical specifications and hardware details of the SKF TKSA 31 laser shaft alignment system, covering its sensor technology, display unit, measuring range, and robust build quality:

• Sensor Technology: 29 mm (1.1 in.) CCD with red line laser (Class 2) and inclinometer with ±0.5° accuracy.
• Connectivity: Wired USB cables between the measuring heads and the display unit.
• Measuring Distance: 0.07 to 4 m (0.23 to 13.1 ft); up to 2 m (6.6 ft) with the supplied cables.
• Measuring Accuracy: < 0.5% ±5 µm for precise and repeatable alignment results.
• Display Unit: 5.6″ colour resistive touchscreen LCD in a High Impact PC/ABS housing with overmould, weighing 420 g (0.9 lb).
• Display Unit Battery Life: Up to 7 hours at 100% backlight.
• Measuring Head Dimensions: 120 × 90 × 36 mm (4.7 × 3.5 × 1.4 in.), weighing 180 g (0.4 lb) each.
• Housing Material: 20% glass-filled polycarbonate for durability and impact resistance.
• Shaft Diameter Range: 20 to 150 mm (0.8 to 5.9 in.); up to 300 mm (11.8 in.) with optional extension chains (not included).
• Max. Coupling Height: 105 mm (4.2 in.) with standard rods; 195 mm (7.7 in.) with optional extension rods (not included).
• Protection Rating: IP54 against dust and water ingress.
• Operating Temperature: 0 to 45 °C (32 to 113 °F).
• Software Updates: Via USB stick.

SKF TKSA 31 Applications

The SKF TKSA 31 is designed for horizontal shaft alignment across a wide range of rotating machinery. Here are the primary applications where this affordable laser alignment tool delivers accurate, reliable results:

• Motor-to-Pump Alignment: Correct misalignment between electric motors and coupled pumps to reduce vibration, bearing wear, and energy consumption.
• Fan & Blower Alignment: Align fan and blower shafts to minimise noise, extend bearing life, and improve airflow efficiency.
• Gearbox Alignment: Ensure proper shaft alignment of gearbox input and output shafts to prevent premature gear and bearing failures.
• Drive Train Alignment: Perform alignment on coupled drive trains including motors, couplings, and driven equipment in horizontal configurations.
• General Industrial Maintenance: Ideal for routine preventive and predictive maintenance programmes in manufacturing plants, power generation, oil & gas facilities, HVAC systems, and more.
