Testo 310 set with printer
Short Description:
- Robust and light instrument for daily use
- 30 seconds sensor zeroing
- Integrated condensate trap
- Integrated magnets for easy fixing to the burner
testo 310 set incl. battery and calibration protocol for the measurement of O2, CO, hPa, and °C; IR printer (0554 3100); probe 180 mm with cone; case; mains unit incl. cable; silicon hose for pressure measurement; particle filter 5 off; 2 rolls spare thermal paper for the printer.
ابزار قوی و سبک برای استفاده روزانه
Product purchase
AED 3,431 (excl.VAT)
20
People watching this product now!
Terms of sending goods ›
Description

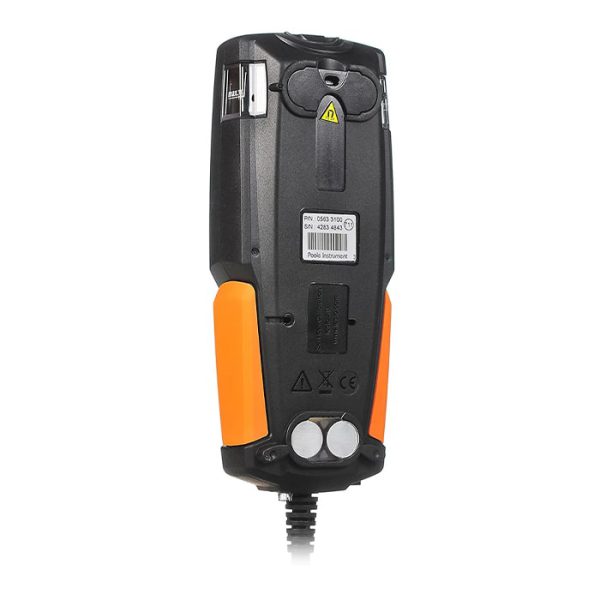

Testo 310 set with printer
Order-Nr. 0563 3104
The testo 310 set has two measurement cells for O2 and CO, and a temperature sensor integrated into the flue gas probe. The gas sensors measure the exact oxygen and carbon monoxide content as well as the flue gas and ambient temperature.
Testo 310 set with printer
From these data, the instrument calculates all relevant measurement parameters, including CO₂ levels, degree of efficiency, and flue gas loss. The device is notable for its user-friendly design and simple menu structure. The well-lit display ensures that you can confidently and conveniently read the measurement values even in poor lighting conditions.
Fuels are stored not just as numbers but with descriptive labels. Symbols for different measurement menus are always visible at the top edge of the clear display. The display and the dirt-resistant keypad are clearly organized, allowing for easy operation even with just one hand.
Integrated Printer for Instant Documentation
Eliminate guesswork and enhance on-site reporting with the included infrared printer. The Testo 310 allows technicians to print real-time measurement results, providing customers and inspectors with hard-copy proof of system efficiency. This built-in documentation feature ensures compliance with industry standards and eliminates the need for manual data recording. With its one-button print function, technicians can effortlessly generate professional reports, saving time and streamlining workflow in the field.
Additional information
| Draught measurement |
Range: -20 to +20 hPa Accuracy: Resolution: 0.01 hPa |
|---|---|
| Gas measuring name/range/reso;ution/accurracy |
Accuracy (±1 digit) O2: ±0.2 vol. % ,CO Accuracy: ±20 ppm (0 to 400 ppm), ±5% of m.v. (401 to 2000 ppm), ±10% of m.v. (2001 to 4000 ppm) ,CO Range: 0 to 4000 ppm ,CO Resolution: 1 ppm ,O2 measurement: 0 to 21 vol. % ,O2 Resolution: 0.1 vol. % |
| Gas type |
Carbon monoxide (CO) ,Oxygen (O2) |
| Temperature range/resolution/aacuracy |
Accuracy: ±1 °C (0 to +100 °C), ±1.5% of m.v. (>100 °C) ,Range: 0 to +400 °C ,Resolution: 0.1 °C |
| Dimensions |
201 x 83 x 44 mm |
| Weight |
Approx. 700 g |
| Power |
Battery: 1500 mAh, mains unit 5V/1A |
| Operating temperature |
-5 to +45 °C |
| Storage temperature |
-20 to +50 °C |
| Measurement Unit |
hPa, ppm, vol.%, °C |
| Pressure measurement |
Range: -40 to 40 hPa Accuracy: ±0.5 hPa Resolution: 0.1 hPa |
datasheet
datasheet
specifications
specifications
| Parameter | Specification |
| Temperature – TC Type K (NiCr-Ni) | -20 to +100 °C |
| Temperature – TC Type J (Fe-CuNi) | 0 to +400 °C |
| Flue gas O₂ | 0 to 21 Vol.% |
| Differential Pressure flue gas Draught | -20 to +20 hPa |
| Flue gas degree of effectivity, Eta | 0 to 120 % |
| Flue gas loss | 0 to 99.0 % |
| Flue gas CO₂ calculation | 0 to CO₂ max |
| Pressure measurement | -40 to +40 hPa |
| Flue gas CO | 0 to 4000 ppm |
| Ambient CO | 0 to 4000 ppm |
| Dimensions | 201 x 83 x 44 mm |
| Weight (with probe) | Approx. 700 g |
