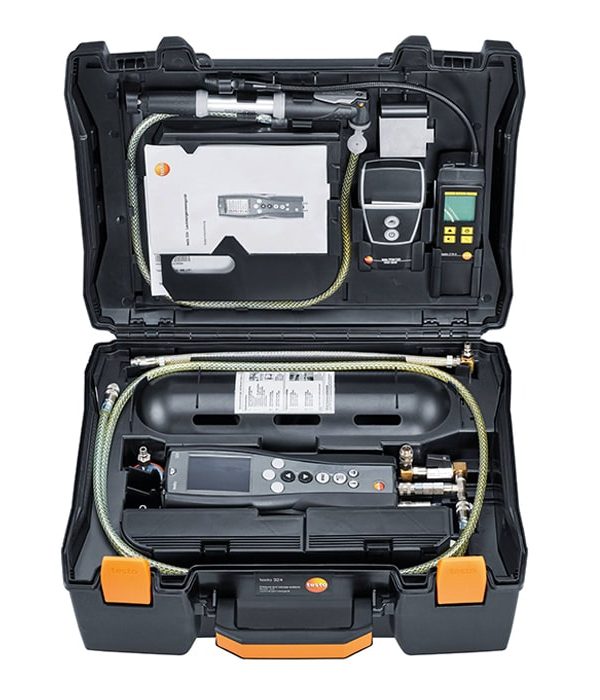

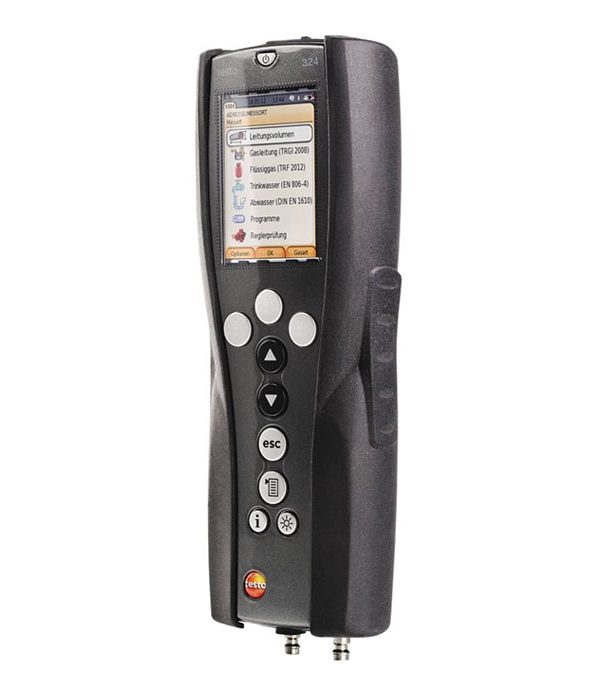

testo 324 Pressure/gas leak detector
Short Description:
testo 324 Pressure/gas leak detector key features :
Professional pressure/leak detector for installation, maintenance and service of gas and water pipes. Specially designed to carry out reliable leak tightness checks, load tests, serviceability tests, temperature measurements in accordance with existing rules and regulations.
Product purchase
AED 5,535 (excl.VAT)
10
People watching this product now!
Terms of sending goods ›
Description
Order-Nr. 0632 3240
The DVGW-tested testo 324 is a professional all-rounder designed to help you carry out your installation and maintenance work quickly and easily. The easy-to-set-up, easy-to-use gas leak detector is specially designed to allow you to perform all legally required tests and inspections – i.e. leak tightness checks, load tests and serviceability tests – on gas and water pipes.
The testo 324 pressure/leak detector can be used for the following applications
Leak tightness checks on gas pipes (leak tightness check and load test according to TRGI 2018 and DVGW G 5952)
Serviceability checks according to TRGI 2018 on gas pipes
Pressure tests on water pipes (drinking water according to ZVSHK EN 806-4, waste water according to DIN EN 1610)
Leak tightness checks on liquid gas pipes according to TRF 2012
Gas pressure regulator inspections
Pipe volume measurements
Further applications including temperature measurements at radiators and pressure measurements at burners (die pressure, gas flow pressure…)
testo 324 Pressure/gas leak detector specification :
- Weight : 1070 g
- Dimensions : 270 x 90 x 75 mm
- Operating temperature : +5 to +40 °C
- Protection class : IP40 acc. to EN 60529
- Storage temperature : -20 to +50 °C
- Overload : 1200 hPa
- Measuring range Temperature – NTC : -20 to +100 °C
- Measuring range Temperature – TC Type K : -40 to +600 °C
- Measuring range Absolute Pressure : 600 to 1150 hPa
- Measuring range Leakage measurement :0 to 10 l/h
- Measuring range Pressure measurement : 0 to 1000 hPa
Additional information
| Pipe volume calculation |
Measuring range: max. 1200 l |
|---|---|
| Weight |
Basic set (0563 3240 70): 7.0 kg ,Professional set (0563 3240 71): 8.5 kg |
| IP rating |
IP40 |
| Power |
1 x rechargeable battery |
| Operating temperature |
+5 to +40 °C |
| Storage temperature |
-20 to +50 °C |
| Other features of the device |
Data transfer: USB, IRDA, Bluetooth® (option) ,Display: Colour display, presentation of graphic curves ,Overload: to 1200 hPa |
| Measurement Unit |
°C / °F ,l/h, bar, hPa |
| Temperature range/resolution/aacuracy |
Type 5K Measuring range: -20 to +100 °C ,Type K Accuracy: ±0.5 °C or ±0.5% ,Type K Measuring range: -40 to +600 °C |
| Leakage measurement |
Measuring range: 0 to 10 l/h |
| Pressure measurement |
Measuring range: 0 to 1000 hPa |
| Absolute pressure measurement |
Measuring range: 600 to 1150 hPa |
Data Sheet
Data Sheet
