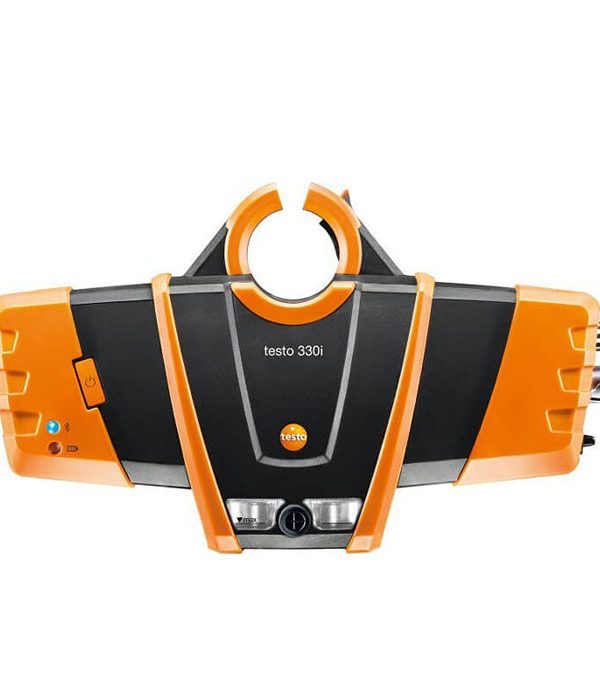

Testo 330i flue gas analyzer (with NO sensor and H2-compensated CO measuring cell)

An adequate flue gas analyzer is required to commission and service heating systems as fast and completely as possible. Measurement equipment that produces reliable data, has its probe firmly anchored in the flue gas duct at all times, and can easily handle bigger systems or inconvenient measuring spots. A measurement device, such as the testo 330i.

Embodying the current trends in flue gas analysis

The Testo 330i flue gas analyzer combines precision measuring technology with innovative operation. Its H₂-compensated CO sensor means that you can also use this version of the Testo 330i to carry out official acceptance test measurements on heating systems.
At the core of the flue gas analyzer is the technology of the Testo 330 LL, which has been proven in practice a thousand times over, with the following features:

• User-replaceable long-life sensors with a service life of up to 6 years. This saves at least one sensor replacement over the instrument’s typical useful life
• TÜV-tested according to the 1st German Federal Immission Control Ordinance (BImSchV) and EN 50379, Parts 1-3
• Integrated draught and gas zeroing without removing the probe – the probe can remain in the flue during zeroing
• Fresh air dilution upon exceeding a CO threshold value of up to 30,000 ppm
• NO sensor for combined heat and power plants

When it comes to your day-to-day job, the instrument’s entirely revised way of operation is just as important: operation of the measuring instrument, as well as display and documentation of readings, are implemented wirelessly via the testo 330i App on your smartphone. The flue gas analyzer can be controlled remotely through Bluetooth from up to 5 metres away. This also implies that you’ll always have the system’s flue gas values on hand when you need them. When you’ve completed measuring, you can add comments or images to the procedure and email it to your customer or the office.

Requirement: iOS 7.1 / Android 4.3 or newer. Mobile end device with Bluetooth 4.0.

Testo 330i flue gas analyzer (with NO sensor and H2-compensated CO measuring cell) specifications:

General technical data :

• Weight: 720 g (excluding battery)
• Dimensions : 270 x 160 x 57 mm
• Operating temperature: -5 to +45 °C
• Power supply: Rech. batt. block 3.7 V / 2.6 Ah; Mains unit 6 V / 1.2 A (optional)
• System requirements: requires iOS 7.1 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0
• Maximum Memory : 500000 readings
• Storage temperature: -20 to +50 °C

Differential Pressure – Piezoresistive :

• Measuring range : 0 to 300 hPa
• Accuracy :±0.5 hPa (0.0 to +50.0 hPa)±1 % of mv (+50.1 to +100.0 hPa)±1.5 % of mv (Remaining Range)
• Resolution: 0.1 hPa
