testo 330i – flue gas analyzer

(1 customer review)

Short Description:

testo 330i – flue gas analyzer

  • On-site digital creation of reports with the testo 330i App
  • Operation independent of measuring location – readings are always available when you need them
  • testoFix probe holder (optional) – holds the probe in the centre of flow at all times
  • Particularly robust, completely enclosed plastic housing

Proven technology meets revolutionary operation. The testo 330i flue gas analyzer was specifically developed to help you to overcome all the obstacles you meet when servicing and commissioning heating systems.

Product purchase

Call for Best Price In UAE 00971(04) 447 6031 00971(04) 344 9868

16 People watching this product now!
Terms of sending goods ›
  •  In-stock items are delivered within 2 business days.
  • We are not Supporting COD Payments Terms Outside UAE

testo 330i – flue gas analyzer

Order-Nr. 0563 3000 70

The testo 330i flue gas analyzer is an advancement of the testo 330 LL flue gas analyzer. Its proven measuring technology is once again at the heart of the testo 330i. This means that you can rely on highly accurate results when measuring flue gas, draught and O2 supply air. The testo 330i also has the following impressive features:

  • User-replaceable long-life sensors with a service life of up to 6 years
  • Successful TÜV inspection according to the 1st German Federal Immission Control Ordinance (BImSchV) and EN 50379, Parts 1-3
  • ntegrated draught and gas zeroing. This means that the probe does not have to be removed from the flue gas duct for the zeroing
  • Fresh air dilution up to 30,000 ppm upon exceeding a CO threshold value

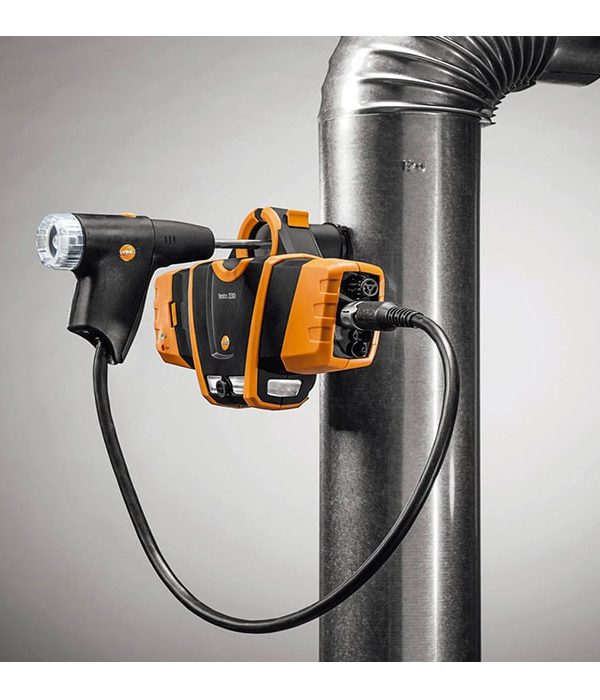

The new testoFix probe holder is available as an accessory, so the flue gas probe is guaranteed not to lose the centre of flow once it has been found. This can be attached to the pipe quickly and easily. It holds the probe in the centre of flow and also serves as a fall-proof suspension system for the testo 330i flue gas analyzer. Incidentally, the hose between probe and measuring instrument is lighter and more flexible than before.



Specifications testo 330i – flue gas analyzer :

  • Differential Pressure : 0 to 300 hPa
  • Flue gas O₂ : 0 to 21 Vol.%
  • CO determination (without H₂-compensation) : 0 to 15000 ppm
  • Flue gas NO : 0 to 3000 ppm
  • Flue gas Draught : -9.99 to +40 hPa
  • Differential Pressure flue gas Draught : -9.99 to +40 hPa
  • Temperature : -40 to +1200 °C
  • Flue gas degree of effectivity : 0 to 120 %
  • Flue gas loss : 0 to 99.9 %
  • Flue gas CO₂ calculation : Display range 0 to CO₂ max
  • Flue gas CO : 0 to 4000 ppm
  • Weight : 720 g (excluding battery)
  • Dimensions : 270 x 160 x 57 mm
  • Power supply : Rech. batt. block 3.7 V / 2.6 Ah; Mains unit 6 V / 1.2 A (optional)



Pressure measurement

Range: 0 to 300 hPa

accuracy:
±0.5 hPa (0.0 to +50.0 hPa)
±1 % of m.v. (+50.1 to +100.0 hPa)
±1.5 % of m.v. (remaining meas. range)

Resolution: 0.1 hPa

Gas measuring name/range/reso;ution/accurracy

CO Accuracy (±1 digit): differs from ±10 ppm or ± 10 % of m.v. (0 to 200 ppm) to ±20 ppm or ± 5 % of m.v. (201 to 2,000 ppm)

,

CO Range: 0 to 4000 ppm

,

CO Resolution: 1 ppm

,

Flue gas loss: 0 to 99.9%

,

O2 Accuracy (± 1 digit): ±0.2 vol.%

,

O2 measurement: 0 to 21 vol.%

,

O2 Resolution: 0.1 vol.%

Gas type

O2 and CO

Temperature range/resolution/aacuracy

Accuracy (± 1 digit): ±0.5 °C (0.0 – +100.0 °C), ±0.5 % of m.v. (remaining meas. range)

,

Range: -40 to +1200 °C

,

Resolution: ±0.1 °C (-40 – +999.9 °C), ±1 °C (remaining meas. range)

Dimensions

270 x 160 x 57 mm

Weight

720 g (excluding battery)

Power

Rech. batt. block 3.7 V / 2.6 Ah

Operating temperature

-5 to +45 °C

Storage temperature

-20 to +50 °C

Measurement Unit

hPa, ppm, vol.%, °C
