TESTO 324 Pressure and leakage measuring instrument

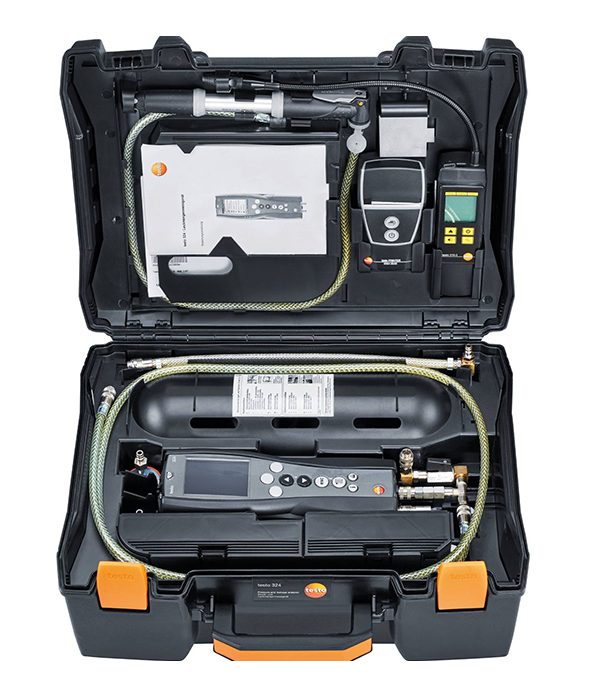

TESTO 324 basic set Pressure and leakage measuring instrument

Order-Nr. 0563 3240 70

Automatic serviceability test: the system case with feeding unit (included in the scope of delivery, for further information see system case) feeds in the gas using the gas bladder. Since the gas bladder is filled with the system’s own gas, there is no possibility of a hazardous gas-air mixture developing during the serviceability test
Carry out the tests prescribed by TRGI with ease, thanks to stored guidelines and a step-by-step guide through the measurement menu.

The relevant tests, e.g. the tightness test on gas pipes, are carried out automatically by the pressure and leakage measuring instrument.

TESTO 324 basic set Pressure and leakage measuring instrument Specifications :

Temperature – NTC:

• Measuring range:-20 to +100 °C

Temperature – TC Type K (NiCr-Ni):

• Accuracy:±0.5 °C or ±0.5 %
• Measuring range:-40 to +600 °C

Absolute Pressure:

•     Measuring range:600 to 1150 hPa
• Accuracy:±3 hPa
•   Overload: to 1200 hPa

Leakage measurement:

•     Measuring range: 0 to 10 l/h
•   Accuracy: ±0.2 l/h or ±5 % of mv
•   Resolution: 10.0

Pressure measurement:

•   Measuring range: 0 to 1000 hPa
• Accuracy:    ±0.5 hPa to ±3 % of mv
