TESTO 417 Air Flow Meter
1 Comments
Accurate air flow measurement for HVAC use with the TESTO 417. Ensure efficiency and reliability in every project.
Terms of sending goods ›
This product is discontinued.
Order Via phone number
In stockDelivers in 2-3 business days.
Description

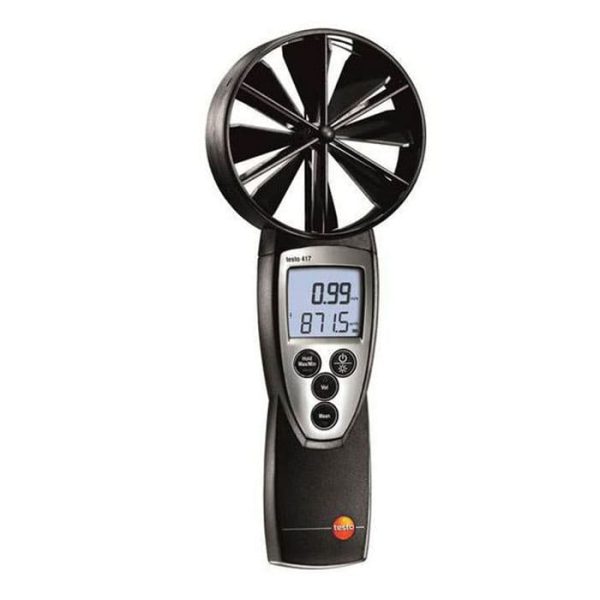

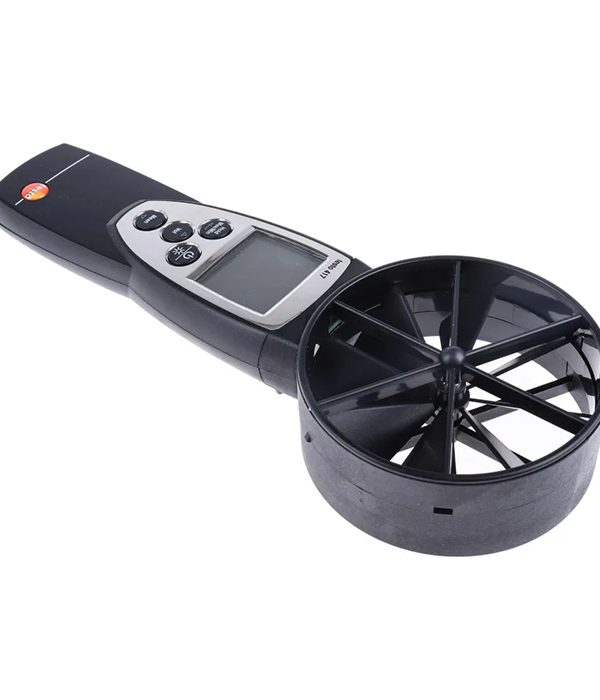

TESTO 417 Air Flow Meter
Order-Nr. 0560 0417
The TESTO 417 Air Flow Meter is an advanced gadget that measures air velocity and volume flow in ventilation and air conditioning systems. Because of its precision and convenience of use, this handheld instrument has become a must-have for HVAC professionals.
TESTO 417 key features
The TESTO 417 excels at giving precise air velocity and volume flow readings, ensuring optimal airflow management in a variety of applications. Its rotating vane probe provides consistent and trustworthy data, allowing personnel to make more informed decisions during HVAC system maintenance and troubleshooting.
This handheld air flow Meter is small and lightweight, making it convenient to transport around construction sites. Its user-friendly interface and straightforward controls allow HVAC specialists to operate the device efficiently, even in cramped and difficult-to-access areas.
The TESTO 417 Air Mass Flow Meter may display measurements in a variety of units, including m/s, ft/min, km/h, and mph. This adaptability accommodates the requirements of various specialists while also ensuring easy connection with existing HVAC protocols.
TESTO Air Flow Meter 417 Specifications:
- General technical data
- Weight: 230 g
- Dimensions : 277 x 105 x 45 mm
- Operating temperature : 0 to +50 °C
- Product-/housing material: ABS
- Battery type : 9V block battery, 6F22
- Battery life: 50 h
- Storage temperature: -40 to +70 °C
specifications
specifications
General technical data
| Weight |
230 g
|
|---|---|
| Dimensions |
277 x 105 x 45 mm
|
| Operating temperature |
0 to +50 °C
|
| Product-/housing material |
ABS
|
| Battery type |
9V block battery, 6F22
|
| Battery life |
50 h
|
| Storage temperature |
-40 to +70 °C
|
Temperature – NTC
| Measuring range |
0 to +50 °C
|
|---|---|
| Accuracy |
±0.5 °C
|
| Resolution |
0.1 °C
|
Velocity – Vane
| Measuring range |
+0.3 to +20 m/s
|
|---|---|
| Accuracy |
±(0.1 m/s + 1.5 % of mv)
|
| Resolution |
0.01 m/s
|
Volume flow
| Measuring range |
0 to +99999 m³/h
0 to +440 m³/h (testo 417 in combination with funnel set (0563 4170))
0.1 to +200 m³/h , preferred 0,1 to 100 m³/h (testo 417 in combination with funnel & flow straightener (0554 4172))
|
|---|---|
| Resolution |
1 m³/h (+100 to +99999 m³/h)
0.1 m³/h (0 to +99.9 m³/h)
|
Datasheet
Datasheet
