    Get accurate HVAC readings with the TESTO 570-2 Digital manifold gauge kit. Perfect for professional diagnostics.

    Terms of sending goods ›
    • In-stock items are delivered within 2 business days.
    • We are not Supporting COD Payments Terms Outside UAE
    • For out-of-stock items, delivery may take 2 to 4 business weeks.
    SKU: 0563-5702 Categories: ,
    Brand:Testo

    Show Price on WhatsApp

    Order Via phone number
    In stockDelivers in 2-3 business days.
    Description

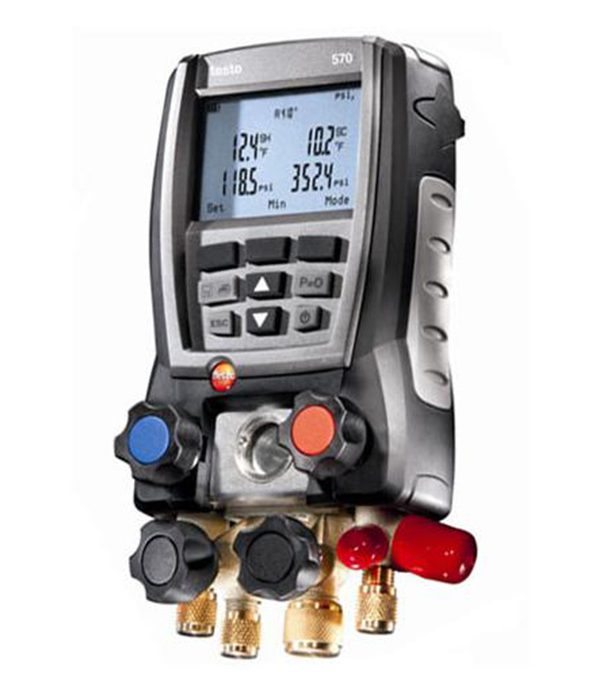

    TESTO 570-2 Digital manifold gauge kit

    Order-Nr.  0563 5702

    The testo 570-2 digital manifold gauge won’t just take the weight off your mind – it will also take the weight off your arms and shoulders.

    That’s because the testo 570-2 can replace a whole array of different tools and measuring instruments that you would otherwise need to carry around with when you work on refrigeration systems and heating pumps. The manifold gauge can measure, analyze and log pressure, temperature, electricity and vacuum measurements and save all measuring data. From the moment the unit was first used to servicing and maintenance to the fault analysis of a system.

    TESTO 570-2 Digital manifold gauge kit specifications:

    Temperature:

    • Measuring range : -50 to +150 °C
    • Accuracy : ±0.5 °C (±1 Digit)
    • Resolution : 0.1 °C
    • Probe connection : 3 x Plug-in (NTC)

    Pressure measurement :

    • Measuring range : 50 bar
    • Accuracy : ±0.5 % fs (±1 Digit)
    • Resolution : 0.01 bar / 0.1 psi
    • Probe connection : 3 x 7/16″ – UNF + 1 x 5/8” – UNF
    • Overload rel. (low pressure) : 52 bar
    • Overload rel. (high pressure) : 52 bar
    • Low pressure rel. : 50 bar
    • High pressure rel. : 50 bar

    Vacuum measurement :

    • Measuring range : -1 to 0 bar
    • Accuracy : 1 % fs
    • Resolution : 1 hPa / 1 mbar / 500 micron

    General technical data :

    • Weight : 1200 g
    • Dimensions : 288 x 135 x 75 mm
    • Operating temperature : -20 to +50 °C
    • Protection class : IP42



    Data Sheet

    Data Sheet

    Data Sheet

    specifications

    specifications

    Category Parameter Specification
    Temperature
    Temperature Measuring Range -50 to +150 °C
    Temperature Accuracy ±0.5 °C (±1 Digit)
    Temperature Resolution 0.1 °C
    Temperature Probe Connection 3 x Plug-in (NTC)
    Pressure Measurement
    Pressure Measuring Range 50 bar
    Pressure Accuracy ±0.5 % fs (±1 Digit)
    Pressure Resolution 0.01 bar / 0.1 psi
    Pressure Probe Connection 3 x 7/16″ – UNF + 1 x 5/8″ – UNF
    Pressure Overload Rel. (Low Pressure) 52 bar
    Pressure Overload Rel. (High Pressure) 52 bar
    Pressure Low Pressure Rel. 50 bar
    Pressure High Pressure Rel. 50 bar
    Vacuum Measurement
    Vacuum Measuring Range -1 to 0 bar
    Vacuum Accuracy 1 % fs
    Vacuum Resolution 1 hPa / 1 mbar / 500 micron
    General Technical Data
    General Weight 1200 g
    General Dimensions 288 x 135 x 75 mm
    General Operating Temperature -20 to +50 °C
    General Protection Class IP42
