Testo 570s Digital manifold

Name: Testo 570s Digital manifold 0564 5701-01 Buy Shop Price
Brand: Testo
SKU: 0564-5701-01

(No Reviews)

Testo 570s is a 4-valve digital manifold with Bluetooth, smart error analysis, and extended battery life perfect for HVAC/R diagnostics and long-term monitoring.

Terms of sending goods ›

In-stock items are delivered within 2 business days.
We are not Supporting COD Payments Terms Outside UAE
For out-of-stock items, delivery may take 2 to 4 business weeks.

SKU: 0564-5701-01 Categories: Manifold Gauge, Pressure

Brand:Testo

Show Price on WhatsApp

Order Via phone number

In stockDelivers in 2-3 business days.

Description

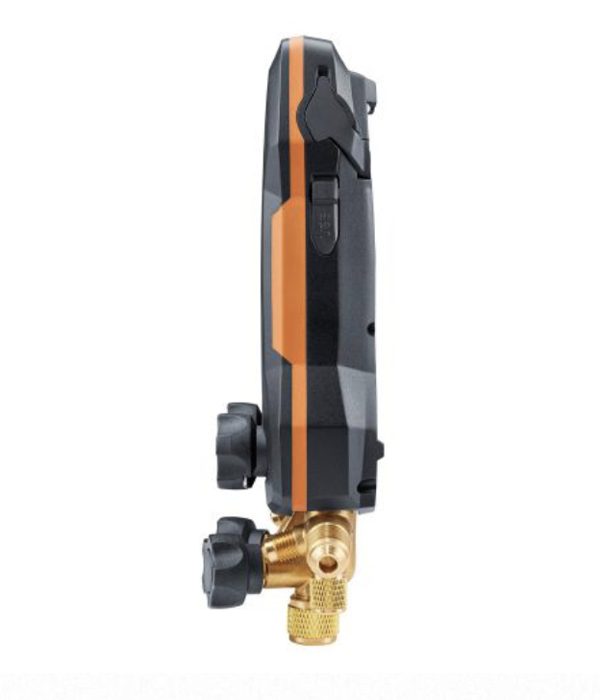

testo 570s – Digital manifold with 4-way valve block, Bluetooth and intelligent error analysis

Order-Nr. 0564 5701 01

The Testo 570s is a next-generation digital manifold designed for HVAC/R professionals. With a 4-way valve block, integrated Bluetooth, and smart error diagnostics, it offers unmatched precision, connectivity, and long-term data logging capabilities. Whether you’re working with refrigeration systems, heat pumps, or AC units, the 570s ensures reliable and intelligent measurement with minimal setup time.

Key Features:

Smart Error Analysis: Automatically detects system irregularities via the Testo Smart App for faster diagnostics.
Exceptional Battery Life: Up to 360 hours of operation with rechargeable USB-C battery or AA batteries.
High Accuracy: ±0.25% full-scale accuracy – even at low pressure ranges.
A2L/A3 Refrigerant Ready: Certified safe for flammable refrigerants.
Bluetooth Connectivity: Wireless connection to temperature, vacuum, refrigerant scale, and current probes.
Graphical Display: Real-time measurements, trends, and system performance at a glance.
Rugged Design: IP54-rated for protection against dust and water in tough work environments.

Testo 570s Specifications:

Temperature Measurement:
- Measuring Range: -58.0° to 302.0 °F / -50 to +150 °C
- Accuracy: ±0.9 °F / ±0.5 °C
- Resolution: 0.1 °F / 0.1 °C
- Probe Connection: 2 x Plug-in (NTC)
Pressure Measurement:
- Measuring Range: -15 to 870 psi / -1 to 60 bar
- Accuracy: ±0.25 % Fs
- Resolution: 0.14 psi / 0.01 bar
- Probe Connection: 3 x 7/16″ – UNF + 1 x 5/8” – UNF
- Overload Rel. (Low Pressure): 943 psi / 65 bar
- Overload Rel. (High Pressure): 943 psi / 65 bar
General Technical Data:
- Weight: 1.30 kg
- Dimensions: 9 x 4.4 x 3 in. / 229 x 112.5 x 71 mm
- Operating Temperature: -4.0° to 122.0 °F / -20 to +50 °C
- Protection Class: IP54
- System Requirements: Requires iOS 11.0 or newer; Requires Android 6.0 or newer; Requires mobile end device with Bluetooth 4.0
- Auto-off Instrument: 10 min
- Battery Life:
  - With built-in rechargeable battery: ≥220 hrs without Bluetooth®, without illumination; ≥120 hrs with Bluetooth® and illumination
  - With 3 AA batteries: ≥145 hrs without Bluetooth®, without illumination; ≥75 hrs with Bluetooth® and illumination

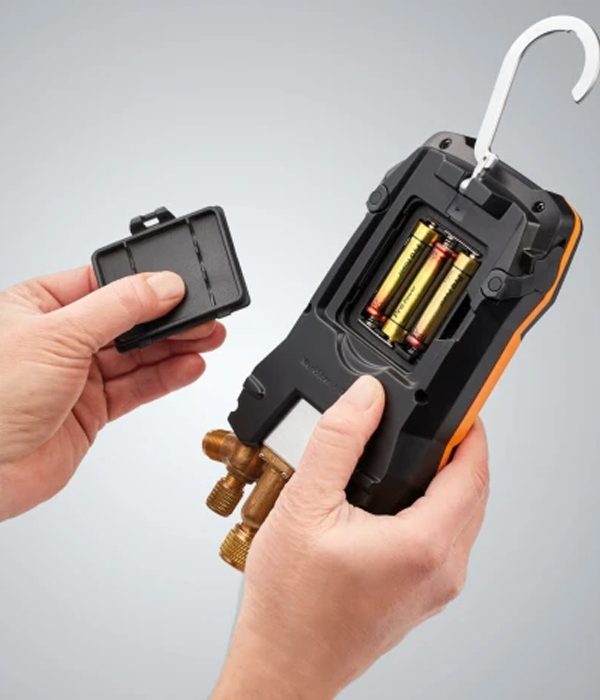

- Battery Type: Built-in rechargeable battery: LI battery 18650; Replaceable battery: 3 alkaline AA batteries
- Radio Range: 492.12 ft. / 150 m
- Storage Temperature: -4.0° to 140.0 °F / -20 to +60 °C

Datasheet

Specifications

Category	Specification
Temperature Measurement
Measuring Range	-58.0° to 302.0 °F / -50 to +150 °C
Accuracy	±0.9 °F / ±0.5 °C
Resolution	0.1 °F / 0.1 °C
Probe Connection	2 x Plug-in (NTC)
Pressure Measurement
Measuring Range	-15 to 870 psi / -1 to 60 bar
Accuracy	±0.25% FS
Resolution	0.14 psi / 0.01 bar
Probe Connection	3 x 7/16″ – UNF + 1 x 5/8″ – UNF
Overload (Low Pressure)	943 psi / 65 bar
Overload (High Pressure)	943 psi / 65 bar
General Technical Data
Weight	1.30 kg
Dimensions	9 x 4.4 x 3 in. / 229 x 112.5 x 71 mm
Operating Temperature	-4.0° to 122.0 °F / -20 to +50 °C
Protection Class	IP54
System Requirements	iOS 11.0+ / Android 6.0+ / Bluetooth 4.0
Auto-off	After 10 minutes
Battery Life	Built-in battery: ≥220 h (no BT, no light), ≥120 h (BT + light) 3 x AA batteries: ≥145 h (no BT, no light), ≥75 h (BT + light)
Battery Type	LI 18650 (rechargeable), or 3 AA alkaline batteries
Radio Range	492.12 ft / 150 m
Storage Temperature	-4.0° to 140.0 °F / -20 to +60 °C
