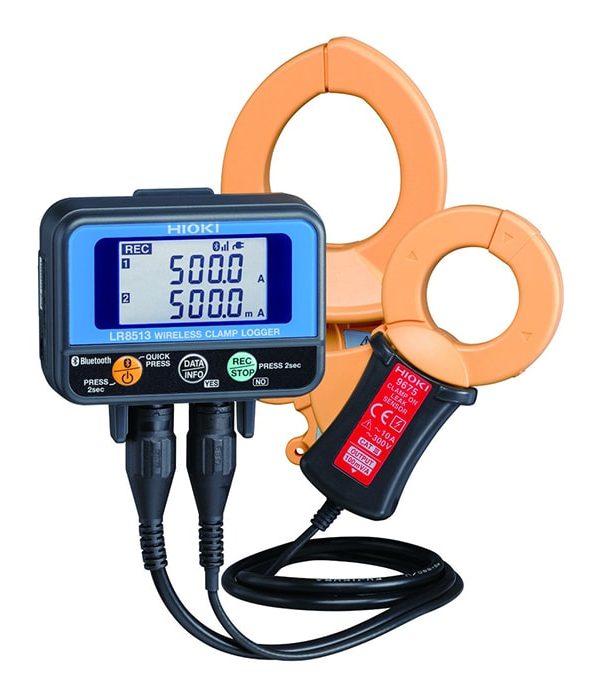

Hioki Lr8513 Wireless Clamp Logger

Wireless Clamp Logger Lr8513

Hioki Memory HiLoggers are high-speed data loggers for recording multiple channels of voltage, temperature, resistance or humidity signals, some models providing complete isolation between channels and strong noise resistance. The Hioki LR8513 is a wireless, 2-channel AC/DC current input module that utilizes Bluetooth® technology to either send measured data to the Hioki LR8410 Wireless Logging Station or to an Android (TM) tablet.

Hioki LR8513 Specification:

• Number of channels: 2ch (common GND)
• Measurement items: AC load current, DC load current, AC leak current
• Measurement range: 500.0 mA to 2000 A AC, 10.00 A to 2000 A DC
• Measurement accuracy: ±0.5% rdg.±5 dgt
• Power source: AC Adapter Z2003 (100 to 240 V AC, 50/60 Hz), AA alkaline batteries (LR6) ×2, External power 5 to 13.5 V DC
• Dimensions and mass: 85 mm (3.35 in) W × 75 mm (2.95 in) H × 38 mm (1.50 in) D, 130 g
