Megger DLRO10-NLS Review: 10 A Low-Resistance Ohmmeter (No Lead Set)

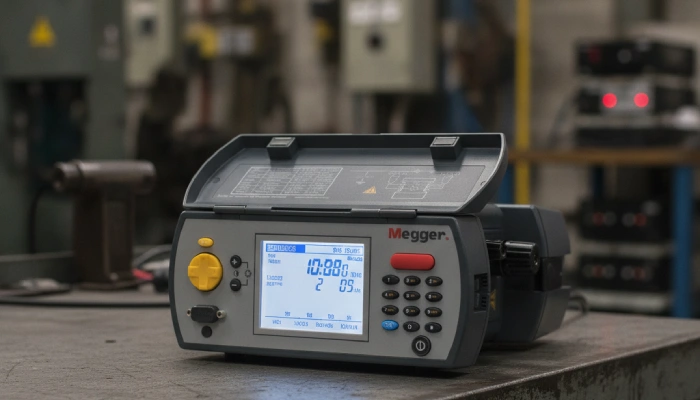

Megger DLRO10-NLS: Precision 10A Digital Low Resistance Ohmmeter (No Lead Set)
The Megger DLRO10-NLS is an industrial-grade, 4-wire Kelvin digital micro-ohmmeter delivering fast, lab-accurate measurements up to 10 A DC from 0.1 μΩ to 2000 Ω. Supplied without test leads (NLS), it empowers test engineers to match application-specific duplex handspikes, Kelvin clamps, or heavy-duty lead lengths across UAE, Saudi Arabia, and Oman power systems.
Ask Price & Stock on WhatsApp
Official Authorized Megger Distributor: Mohammad Mahdi Electronics (MME)
Official Authorized Megger Distributor: Mohammad Mahdi Electronics (MME)
Why the Megger DLRO10-NLS Matters for Electrical Testing
In high-voltage substations, industrial manufacturing, and switchgear commissioning, contact degradation leads to catastrophic thermal failures. The Megger DLRO10-NLS provides high-accuracy micro-ohm resolution using 4-terminal Kelvin sensing to automatically cancel test lead resistance and thermoelectric EMF (thermal EMF) across dissimilar metallic joints.
Purchasing the No Lead Set (NLS) edition eliminates wasted budget on standard factory leads when your testing environment requires bespoke duplex Kelvin spikes, heavy-duty C-clamps, or 10-meter extensions for wind turbines and large transformers.
Featured Equipment
Megger DLRO10-NLS Low Resistance Ohmmeter (No Leads)
Check stock availability, calibration status, and commercial pricing across UAE, KSA, and Oman.
Core Technical Capabilities & Engineering Features
⚡
10 A DC True Current
Automatic bi-directional current reversal cancels thermoelectric voltages, ensuring ±0.2% measurement accuracy on busbars and joints.
📏
0.1 μΩ to 2000 Ω Range
Seven auto-selected measurement decades cover high-amperage circuit breaker contacts through fine wire coil resistances.
🎯
Multi-Mode Operation
Supports Manual, Auto, Continuous, and Inductive modes for rapid testing of both resistive switchgear and inductive motor windings.
🧭
Rugged Portability (IP65/IP54)
Field-ready enclosure rated IP65 with lid closed and IP54 in operational mode, optimized for demanding desert and industrial environments.
Megger DLRO10 & DLRO10HD: How to Use (Step-by-Step Field Guide)
Proper operation of a 10A micro-ohmmeter ensures operator safety, equipment protection, and repeatable contact resistance values compliant with IEEE and IEC standards:
- Pre-Test Isolation & Safety: Ensure the device under test (DUT) is completely de-energized, locked out/tagged out (LOTO), and grounded. Never connect the DLRO10 to live circuits.

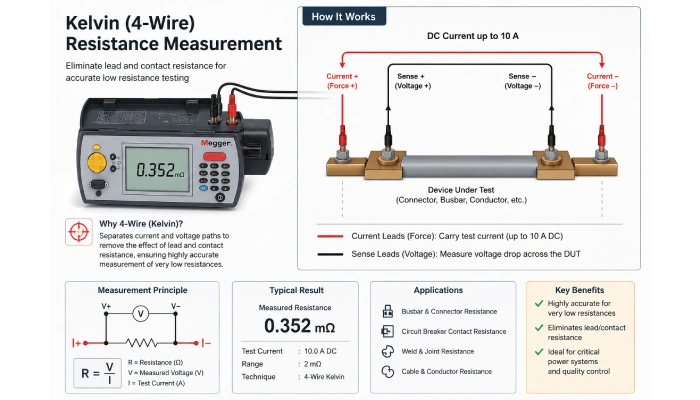

- Kelvin Probe Connection: Connect the 4-terminal test leads into C1, C2 (Current terminals) and P1, P2 (Potential/Sense terminals). Ensure the potential pins are positioned inside the current injection points on the test specimen.
- Mode Selection:
- Auto Mode: Starts test automatically as soon as all 4 probes establish solid contact. Ideal for fast multi-point busbar inspection.
- Continuous Mode: Repeatedly updates measurements every 3 seconds to monitor contact settling or thermal drift.
- Inductive Mode: Charges inductive components (transformers, large stator coils) before stabilizing the reading to prevent arc discharge.
- Execute & Record: Read the stable micro-ohm value on the backlit LCD. If testing dissimilar metals, allow the dual-polarity cycle (<3s) to automatically eliminate thermal EMF offsets.
Megger DLRO10 & DLRO10HD Troubleshooting Guide
| Symptom / Error Indicator | Probable Root Cause | Engineering Solution |
|---|---|---|
| C or P Continuity Warning Flags | Poor probe contact, oxidization layer, or loose Kelvin terminal. | Clean contact surfaces with wire brush; reseat 4mm Kelvin plugs; inspect spike tips for wear. |
| Unstable / Drifting Readings | External electromagnetic interference or inductive core not saturated. | Switch to Inductive Mode; twist C and P lead pairs together to reject external magnetic field noise. |
| Noise Warning Symbol | AC ripple or induced substation noise exceeding instrument rejection limit. | Verify circuit grounding; route test leads away from parallel energized overhead cables. |
| Unit Powers Off Under 10A Load | Internal battery cell impedance high or depleted NiMH/Li-Ion module. | Perform a full 4-hour conditioning charge cycle or connect an external 12V DC auxiliary source. |
Important Configuration Notice:
The DLRO10-NLS (Megger Part # 1006-664) version is supplied without test leads. This provides substantial procurement savings if you already possess Megger DH4, DH5 duplex handspikes, or KC-series Kelvin clamps. If you require custom lead configurations, contact our technical desk for matching accessories.
Typical Industrial & Utility Applications
Busbar Joint Resistance: Verifying bolted busduct joints in switchboards.
Circuit Breaker Contacts: Testing main contact wear in LV/MV switchgear.
Cable Splices & Terminations: Measuring crimp and compression lug integrity.
Transformer Windings: Low-resistance DC winding checks on motors & stators.
Aircraft Bonding Tests: Lightning protection and airframe ground continuity.
Railway Track & Welds: Quality inspection of rail bonds and power tracks.
Megger DLRO10-NLS Technical Specifications
| Specification Parameter | Megger DLRO10-NLS Engineering Data |
|---|---|
| Measurement Range | 0.1 μΩ to 2000 Ω across 7 distinct ranges |
| Resolution | 0.1 μΩ on the 1.9999 mΩ scale |
| Accuracy | ±0.2% of reading ±0.2 μΩ (at 20°C ambient) |
| Test Current | 100 μA, 1 mA, 10 mA, 100 mA, 1 A, 10 A DC |
| Operating Modes | Manual, Auto, Continuous, Inductive (Bidirectional DC) |
| Measurement Speed | < 3 seconds for forward/reverse cycle and average calculation |
| Display Type | High-contrast 4½ digit LCD with backlight |
| Data Memory & Output | On-board storage up to 700 tests with 200-character memo; RS232 output |
| Battery Pack & Life | 7V 7Ah rechargeable module; delivers > 1000 x 10 A tests per full charge |
| Ingress Protection | IP65 (case closed), IP54 (battery mode operation) |
| Safety Rating | IEC61010-1, CAT III 300 V ground reference |
| Lead Package | NLS (No Lead Set included) |
What’s Included & Recommended Lead Sets

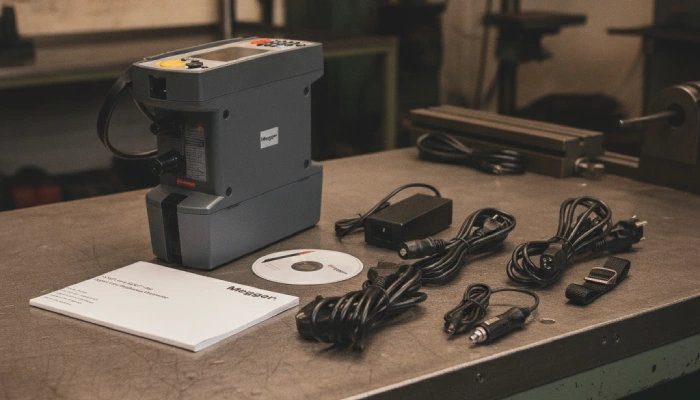

Included in the Standard Box
- Megger DLRO10 Micro-Ohmmeter Base Unit
- Rechargeable Battery Module (NiMH/Li-Ion)
- Universal AC Mains Battery Charger (90V – 260V)
- 12V Cigar Lighter In-Vehicle Charger Adapter
- Factory Calibration Certificate
- Comprehensive User Operating Manual
- Official Megger Warranty Card
Not Included (Select Separately)
Test leads are not included with the DLRO10-NLS edition. Recommended compatible accessories available at MME:
- DH4 Duplex Handspikes: 1.2m / 3m leads with indicator lights
- KC-Series Kelvin Clamps: Heavy-duty jaws for thick busbars
- Helical Spring Probes: For multi-layer PCB and small terminal checks
