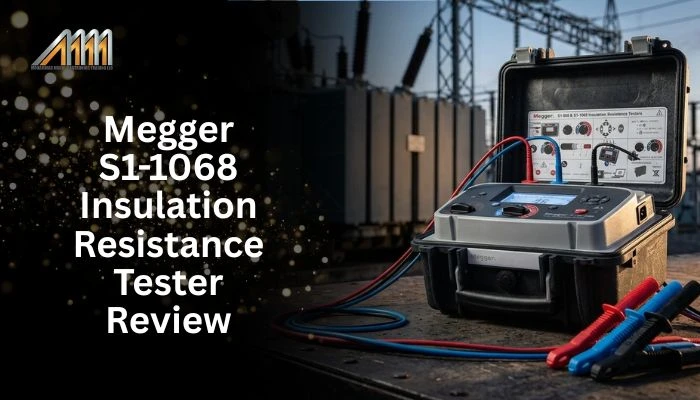

Megger S1-1068 Insulation Resistance Tester Review – 10 kV, CAT IV, 35 TΩ
0
Megger S1-1068 Insulation Resistance Tester
The Megger S1-1068 is the 10 kV model in the S1-Series, built for demanding insulation testing in power utilities, service companies, and high-voltage maintenance workflows. It combines advanced diagnostics, rugged field protection, and data handling features in a compact professional tester.
TEST VOLTAGE
10 kV
MAX RESISTANCE
35 TΩ
SAFETY CATEGORY
CAT IV 600 V
PROTECTION
IP65 / IP40
Built for Serious Insulation Diagnostics
The S1-1068 is designed for professionals who need a dependable 10 kV insulation resistance tester with advanced test functions and strong noise rejection. It is part of Megger’s S1-Series and is suited for high-value assets where insulation condition monitoring must be accurate, repeatable, and field-ready.
This model is especially relevant in generation, transmission, and distribution environments, where insulation analysis is part of routine maintenance, commissioning, and troubleshooting. Its diagnostic set includes IR, IR(t), DAR, PI, stepped voltage, DD, and ramp testing.
Why Users Choose It
- 10 kV test voltage for demanding applications
- Up to 35 TΩ resistance range
- Advanced insulation diagnostics in one instrument
- Bluetooth and USB connectivity
- Rapid-charge Li-ion battery with AC fallback
- Strong environmental protection for field use
Applications for Power and Utility Work
The Megger S1-1068 is not a basic portable meter. It is meant for serious industrial insulation testing where the asset condition directly affects safety, uptime, and operational reliability.
Generation Assets
Useful for insulation checks on generators, auxiliary systems, and related power equipment.
Transmission Infrastructure
Suitable for high-voltage maintenance routines where insulation quality must be verified.
Distribution Networks
Supports service teams working on cables, switchgear, and field installations.
Commissioning & QA
Ideal when a new system needs insulation verification before energizing.
Core Features of the Megger S1-1068
10 kV Insulation Testing
The S1-1068 is the 10 kV model in the family, making it a strong choice for medium- and high-voltage insulation assessment.
Resistance Up to 35 TΩ
The family delivers a headline resistance range of up to 35 TΩ, supporting advanced insulation analysis.
Advanced Diagnostics
IR, IR(t), DAR, PI, SV, DD, and ramp tests give technicians a deeper picture of insulation condition.
Noise Rejection
The unit includes 8 mA noise rejection and four filters, helping improve measurement stability in noisy environments.
Connectivity
USB Type B and Bluetooth Class 2 are included for data transfer and workflow integration.
Portable Power System
The rapid-charge Li-ion battery supports field mobility, and the instrument can run from AC when the battery is flat.
Megger S1-1068 Technical Specifications
| Specification | S1-1068 Value |
|---|---|
| Model | Megger S1-1068 |
| Series | S1-Series |
| Test Voltage | 10 kV |
| Maximum Resistance Range | Up to 35 TΩ |
| Safety Rating | CAT IV 600 V to 3000 m |
| Protection Rating | IP65 lid closed / IP40 lid open |
| Diagnostic Tests | IR, IR(t), DAR, PI, SV, DD, Ramp test |
| Noise Rejection | 8 mA noise rejection with 4 filters |
| Display | Large backlit color display |
| Interface | USB Type B and Bluetooth Class 2 |
| Remote Control | USB cable only |
| Power | Rapid-charge Li-ion battery, AC operation when battery is flat |
| Battery Standard | Meets IEC62133 |
| Weight | 4.5 kg (5 kV / 10 kV models) |
| Operating Temperature | -20 °C to 50 °C |
Final Verdict
The Megger S1-1068 is a powerful 10 kV insulation resistance tester for professionals who need advanced diagnostics, high resistance measurement, and dependable field performance. With its CAT IV safety, rugged protection, strong noise rejection, and data-friendly design, it is a serious choice for utility and industrial testing programs.
Need Price & Stock Availability?
Contact our sales team for current availability, quotation, and delivery details for the Megger S1-1068.
