What ranges does the PM55A cover?

AC/DC voltage up to 600 V, DC/AC microamps up to 2000 µA, resistance to 6 MΩ, capacitance to 2000 µF and frequency to 30 kHz.

How does AutoTect™ help with ghost voltages?

AutoTect™ uses a low-impedance (LoZ) input to suppress induced or phantom voltages and auto-selects V AC, V DC or Ω.

What does VolTect™ indicate?

It’s a non-contact voltage detector with bar-graph and beeper for 50/60 Hz fields, from low indication through full scale above ~120 V AC.

Protective silicone holster (H-PMA), zippered case (VC3A), battery installed (CR2032), attached test leads and user manual.

What are the safety ratings?

CAT II 600 V / CAT III 300 V, with 4 kV transient protection and overload protection to 600 V.

Buy Amprobe PM55A Multimeter – 600V AC/DC, VolTect

Description

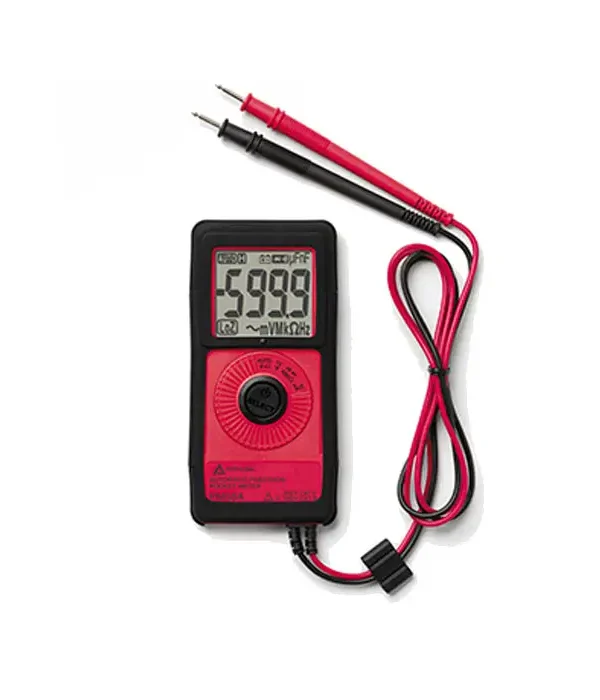

Amprobe PM55A Pocket Multimeter with VolTect Non-Contact Voltage Detection

The Amprobe PM55A Pocket Multimeter with VolTect™ is a highly compact and versatile tool designed for professionals and DIY enthusiasts who need a reliable multimeter on the go. Its sleek, pocket-sized form factor makes it easy to carry, while the advanced features packed into the device ensure that it meets a wide range of electrical testing needs.

The PM55A stands out due to its ultra-slim profile, making it one of the thinnest multimeters available. This is ideal for technicians who need to keep tools light and portable without compromising functionality.

Another standout feature of this pocket multimeter is AutoTect, which automatically detects and selects between AC and DC voltage, or resistance measurement, depending on the test point where the leads are connected. It is fully auto-ranging, offering nine different measurement functions, along with advanced features typically found in larger, more expensive meters.

Amprobe PM55A Key Features

AutoTect™ feature directs the meter to know if it is measuring AC or DC volts or resistance with no user interface
The AutoTect™ feature has lower input impedance which zeros out ghost voltages
Measures AC/DC current, capacitance, frequency, continuity with beeper
Voltect™ feature is a built-in, non-contact voltage detector
Power supply 3 V standard button battery x 1 (IEC-CR2032; ANSI-NEDA-5004LC)
Automatic power off

specifications

Specification	Details
DC Voltage Range	6.000 V, 60.00 V, 600 V
DC Voltage Accuracy	± (0.5 % + 3 dgt) to ± (2.0 % + 5 dgt)
AC Voltage Range	6.000 V, 60.00 V, 600 V
AC Voltage Accuracy	± (1.5 % + 5 dgt)
DC Current Range	400 μA, 2000 μA
DC Current Accuracy	± (1.2 % + 3 dgt) to ± (1.5 % + 3 dgt)
AC Current Range	400 μA, 2000 μA
AC Current Accuracy	± (1.5 % + 3 dgt) to ± (2.0 % + 3 dgt)
Resistance Range	600.0 Ω, 6.000 kΩ, 60.00 kΩ, 600.0 kΩ, 6.000 MΩ
Resistance Accuracy	± (1.0 % + 4 dgt) to ± (2.0 % + 6 dgt)
Capacitance Range	100.0 nF to 2000 μF
Capacitance Accuracy	± (3.5 % + 6 dgt)
Frequency Range	10.00 Hz – 30.00 kHz
Frequency Accuracy	± (0.5 % + 4 dgt)
Display	6000 count, 3-5/6 digits, updates 5 times per second
Operating Temperature	0 °C – 40 °C
Storage Temperature	-20 °C to 60 °C
Power Supply	3 V standard button battery (IEC-CR2032)
Power Consumption	6 mA (Auto-V) / 2 mA (other functions)
Auto Power Off (APO)	After 3 minutes of inactivity
Weight	78 grams (3 oz)
Dimensions	113 mm x 53 mm x 10.2 mm (4.4 x 2.1 x 0.4 in)
Safety Ratings	CAT III 300 V, CAT II 600 V
Certifications	CE, UL listed
Special Features	AutoTect™, VolTect™, Non-contact voltage detection

Datasheet

Download datasheetPDF
